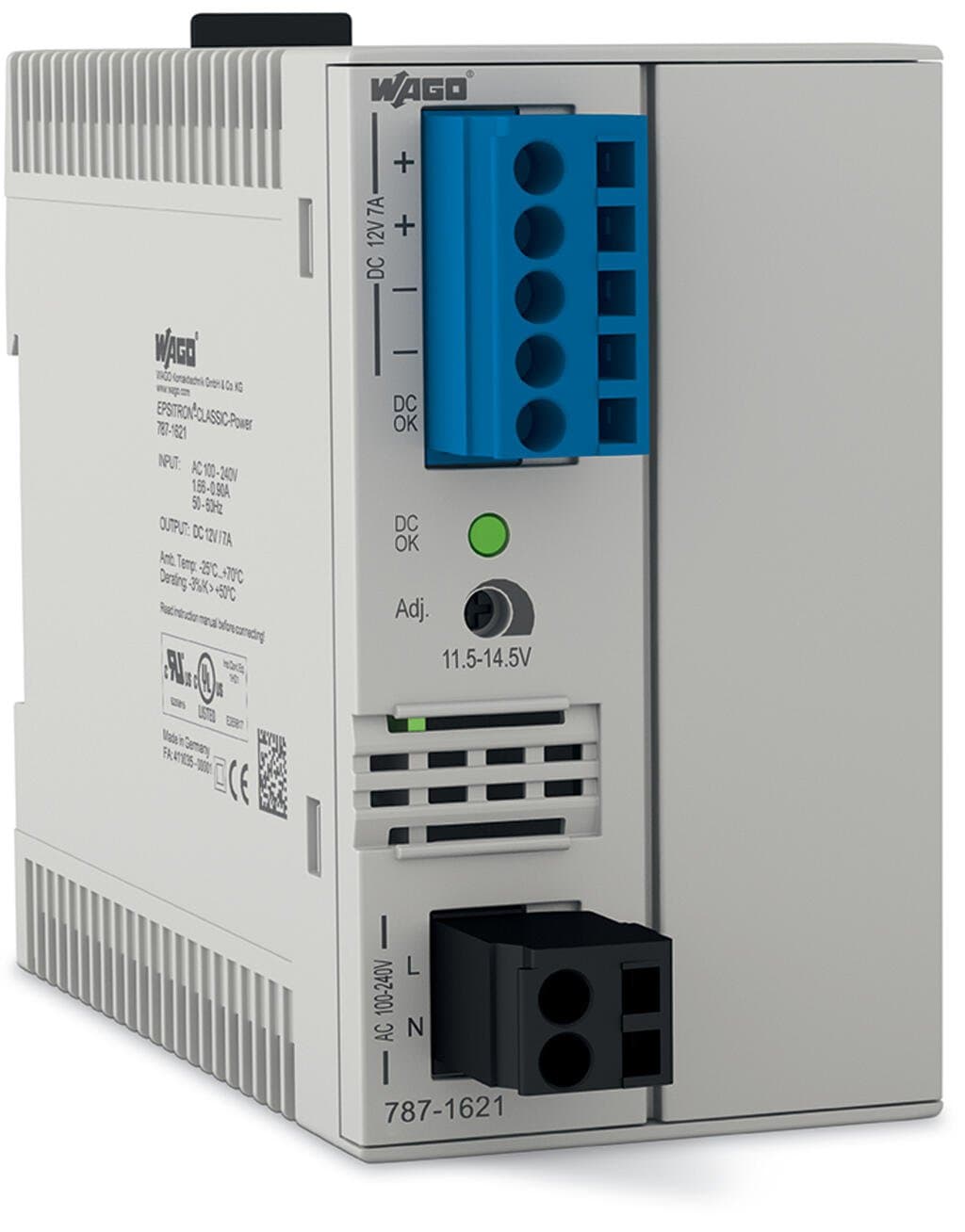

Product Model
787-1621
Selling Points
- 1High-quality copper contacts ensure reliable connections.
- 2Compact design fits in tight spaces, ideal for panel mounting.
- 3Easy-to-use screw terminals simplify wiring and installation.
- 4Durable construction withstands harsh industrial environments.
- 5Compatible with a wide range of applications and industries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection class | II | Protection type | IP20; per EN 60529 |
Overvoltage category | II | Pollution degree | 2 |
Transient suppression (primary) | Varistor | Overvoltage protection; secondary | Internal protective circuit |
Short-circuit-protected | Yes | Open-circuit-proof | Yes |
Parallel operation | Yes | Series operation | Yes |
MTBF | > 500,000 h (per IEC 61709) | Connection type 1 | Input/Output/Signaling |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 721 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 52?mm?/ 2.047?inches |
Height | 90?mm?/ 3.543?inches | Depth from upper-edge of DIN-rail | 119?mm?/ 4.685?inches |
Mounting type | DIN-35 rail | Weight | 384g |
Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) | Ambient temperature (storage) | -25 … +85 °C |
Relative humidity | 5 … 96?% (no condensation permissible) | Derating | ?3 %/K (> 50 °C) |
Climatic category | 3K3 (per EN 60721) | Conformity marking | CE |
Standards/specifications | EN 61010-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143060479 | Customs tariff number | 8504409510 |
RoHS Compliance Status | Compliant,No Exemption | Phases | 1 |
Nominal input voltage [V] | 1 x AC?100 … 240?V | Input voltage range | 1 x AC?85 … 264?V;?DC?120 … 300?V |
Input voltage derating | -2.5 %/V (< 95 VAC) | Nominal mains frequency range | 44 … 66 Hz;0 Hz |
Input current I<sub>i</sub> | ≤?0.9?A (240 VAC);?≤?1.66?A (100?VAC) | Inrush current | ≤?30?A |
Power factor correction (PFC) | Passive | Mains failure hold-up time | ≥?80?ms (230?VAC);?≥?15?ms (100?VAC) |
Nominal output voltage [V] | DC?12?V (SELV) | Output voltage range | DC?12?V |
Default setting | DC?12?V | Nominal output current I<sub>o nom</sub> | 7 A (12 VDC); 7.5 A (< 40 °C) |
Nominal output power | 84W | Deviation | ≤?1?% |
Residual ripple | ≤?20?mV (peak-to-peak) | Current limitation | 1.1 x Io nom(typ.) |
Overload behavior | Constant current | Signaling | 1 x LED DC OK (green) |
Operation status indicator | Green LED (Uo) | Power loss P<sub>l</sub> | ≤?1?W;?≤?16.2?W (230 VAC; nominal load) |
Power loss (max.) P<sub>l (max.)</sub> | 19.8?W (100 VAC / 12 VDC; 7 A) | Efficiency (typ.) | 86?% |
Internal fuse | T 4 A / 250 VAC | Backup fusing (required) | An external DC fuse is required for the DC input voltage. |
Backup fusing (recommended) | Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C |
Specifications may be subject to change without notice
