Product Model

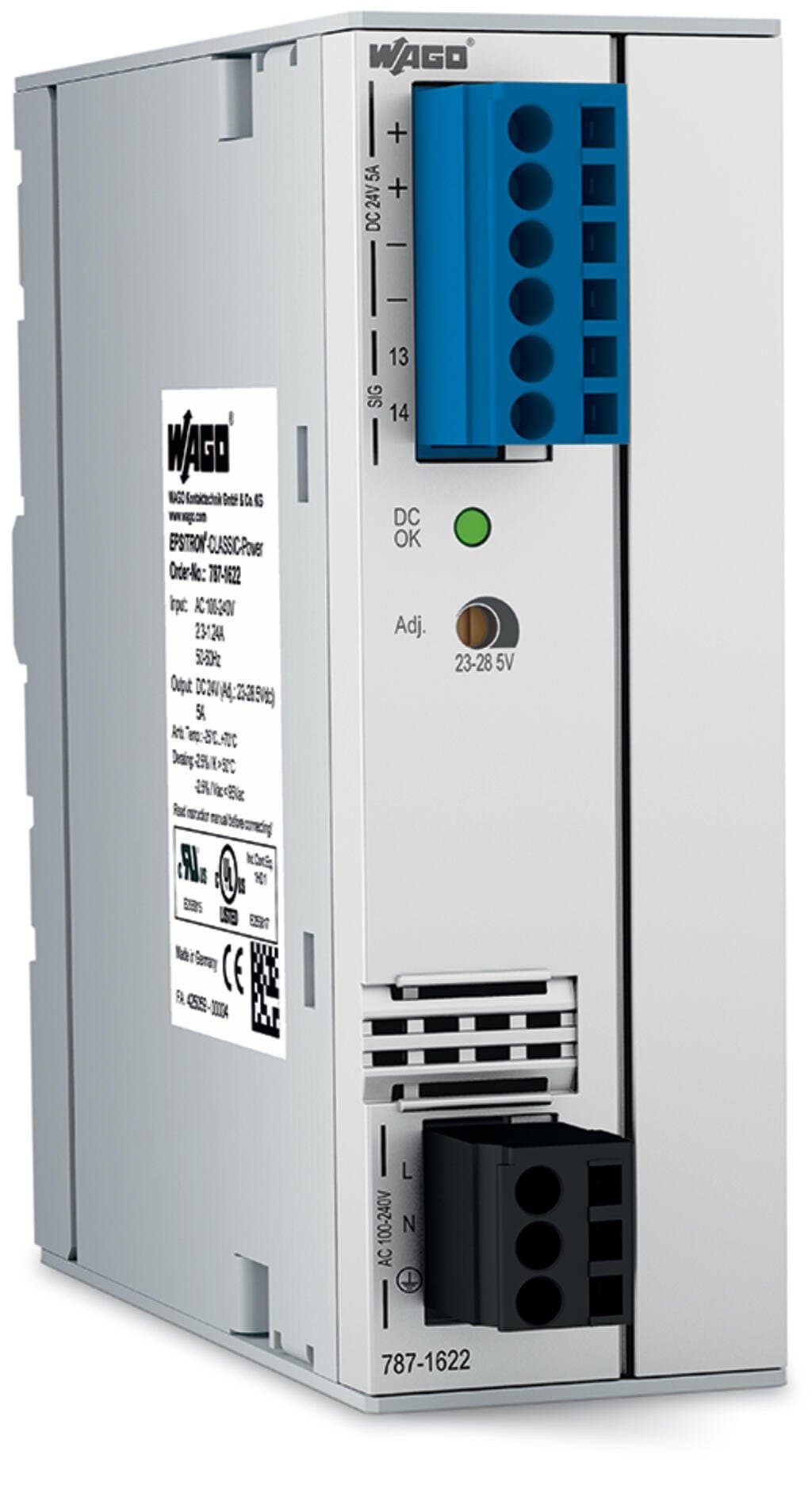

787-1622
Selling Points
- 1Offers a range of 23 to 28.5 VDC for flexible power management.
- 2Ensures efficient power factor correction to minimize energy waste.
- 3Designed for secure DIN-35 rail mounting, ideal for control cabinets.
- 4Exceeds 500,000 hours of operation, ensuring long-lasting reliability (per IEC 61709).
- 5Allows for easy integration and redundancy in industrial setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (sec.-PE) | DC 0.7?kV | Protection class | I |
Protection type | IP20; per EN 60529 | Overvoltage category | II |
Pollution degree | 2 | Transient suppression (primary) | Varistor |
Overvoltage protection; secondary | Internal protective circuit | Short-circuit-protected | Yes |
Open-circuit-proof | Yes | Parallel operation | Yes |
Series operation | Yes | MTBF | > 500,000 h (per IEC 61709) |
Connection type 1 | Input/Output/Signaling | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 721 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 42?mm?/ 1.654?inches | Height | 127?mm?/ 5?inches |
Depth from upper-edge of DIN-rail | 137.5?mm?/ 5.394?inches | Mounting type | DIN-35 rail |
Weight | 477.6g | Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) |
Ambient temperature (storage) | -25 … +85 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
Derating | ?5°%/K (> 60°°C, 196 … 264°VAC); ?2.5°%/K (> 50°°C, 85 … 195°VAC) | Climatic category | 3K3 (per EN 60721) |
Conformity marking | CE | Standards/specifications | EN 61010-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-04-07-01 |
eCl@ss 9.0 | 27-04-07-01 | ETIM 9.0 | EC002540 |
ETIM 8.0 | EC002540 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143060486 |
Customs tariff number | 8504409510 | RoHS Compliance Status | Compliant,No Exemption |
Phases | 1 | Nominal input voltage [V] | 1 x AC?100 … 240?V |
Input voltage range | 1 x AC?85 … 264?V;?DC?120 … 300?V | Input voltage derating | -2.5 %/V (< 97 VAC) |
Nominal mains frequency range | 44 … 66 Hz;0 Hz | Input current I<sub>i</sub> | ≤?1.24?A (230?VAC);?≤?2.3?A (100?VAC) |
Inrush current | ≤?30?A | Power factor correction (PFC) | Passive |
Mains failure hold-up time | ≥?80?ms (230?VAC);?≥?10?ms (100?VAC) | Nominal output voltage [V] | DC?24?V (SELV) |
Output voltage range | DC?24?V | Default setting | DC?24?V |
Nominal output current I<sub>o nom</sub> | 5?A (24?VDC) | Nominal output power | 120W |
Deviation | ≤?1?% | Residual ripple | ≤?30?mV (peak-to-peak) |
Current limitation | 1.1 x Io nom(typ.) | Overload behavior | Constant current |
TopBoost | See instruction leaflet | Signaling | 1 x LED DC OK (green) |
Operation status indicator | Green LED (Uo) | Power loss P<sub>l</sub> | ≤?1.2?W;?≤?14.6?W (230 VAC; nominal load) |
Power loss (max.) P<sub>l (max.)</sub> | 19.4?W (100 VAC / 24 VDC; 5 A) | Efficiency (typ.) | 89?% |
Internal fuse | T 4 A / 250 VAC | Backup fusing (required) | An external DC fuse is required for the DC input voltage. |
Backup fusing (recommended) | Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C |
Specifications may be subject to change without notice
