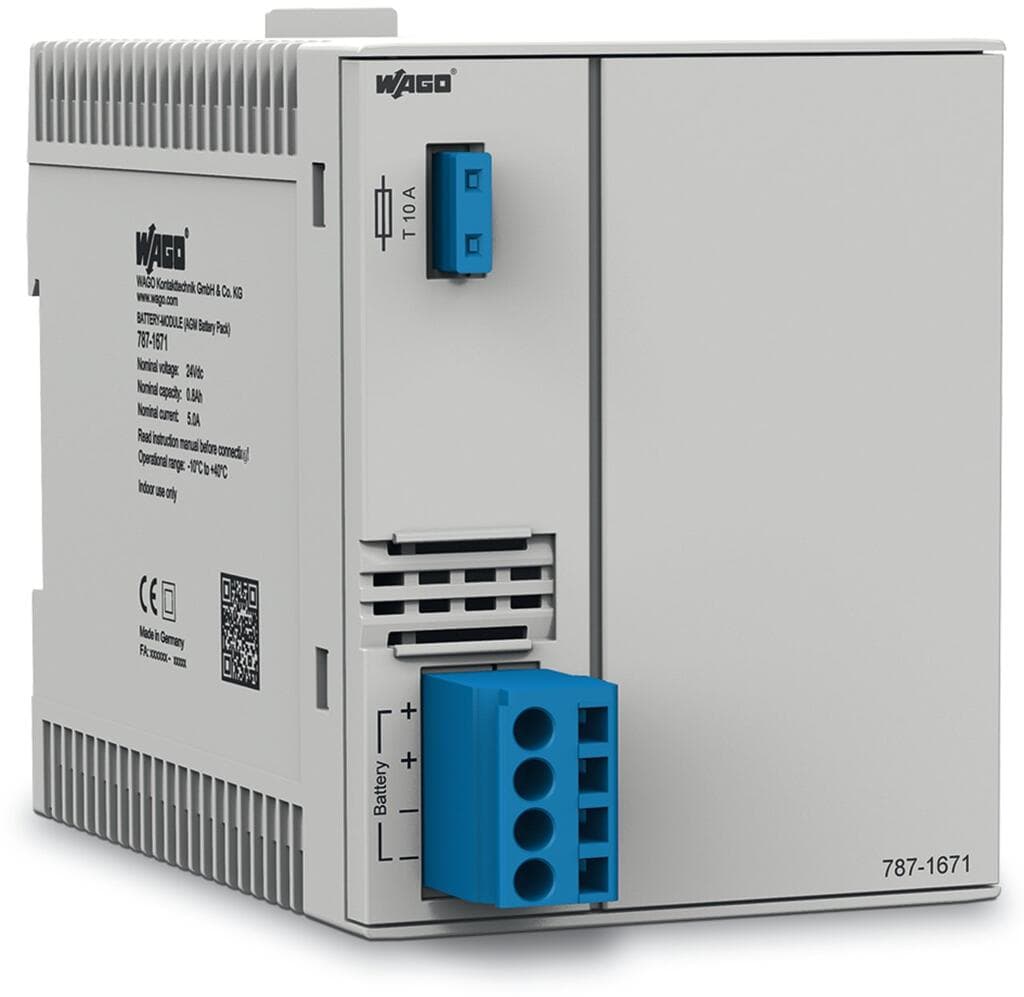

Product Model
787-1671
Selling Points
- 1Compact design for DIN-35 rail mounting.
- 2Built-in temperature sensor for optimal performance.
- 3Parallel operation increases buffer time.
- 4Integrated battery control detects battery life and type.
- 5High reliability with MTBF > 500,000 hours.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller. | Protection class | III |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Parallel operation | Yes | Series operation | No |
MTBF | > 500,000 h (per IEC 61709) | Service life (typ.) | 5?/ 4?/ 2?a (20?/ 30?/ 40?°C) |
Connection type 1 | Input/Output/Battery control | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 721 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Cable length (max.) | 3?m | Width | 72?mm?/ 2.835?inches |
Height | 97?mm?/ 3.819?inches | Depth from upper-edge of DIN-rail | 124?mm?/ 4.882?inches |
Mounting type | DIN-35 rail | Fire load | 0.124MJ |
Weight | 1000g | Ambient temperature (operation) | -15 … +40 °C (?20 … +40 °C (during discharge)) |
Ambient temperature (storage) | -20 … +40 °C | Relative humidity | 5 … 80?% (no condensation permissible) |
Conformity marking | CE | Standards/specifications | EN 61010-1 |
Standards/specifications (pending) | UL 508 | eCl@ss 10.0 | 27-05-04-03 |
eCl@ss 9.0 | 27-05-04-03 | ETIM 9.0 | EC000357 |
ETIM 8.0 | EC000357 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143535724 |
Customs tariff number | 8507208091 | RoHS Compliance Status | Compliant,No Exemption |
Nominal input voltage [V] | DC?24?V | Nominal output voltage [V] | DC?24?V |
Nominal output current I<sub>o nom</sub> | 5?A | Amp hours | 0.8Ah |
Charging current | 0.2?A (recommended) | End-of-charge voltage | DC 27 V (25 °C) |
Internal fuse | T 10 A / 250?VAC |
Specifications may be subject to change without notice
