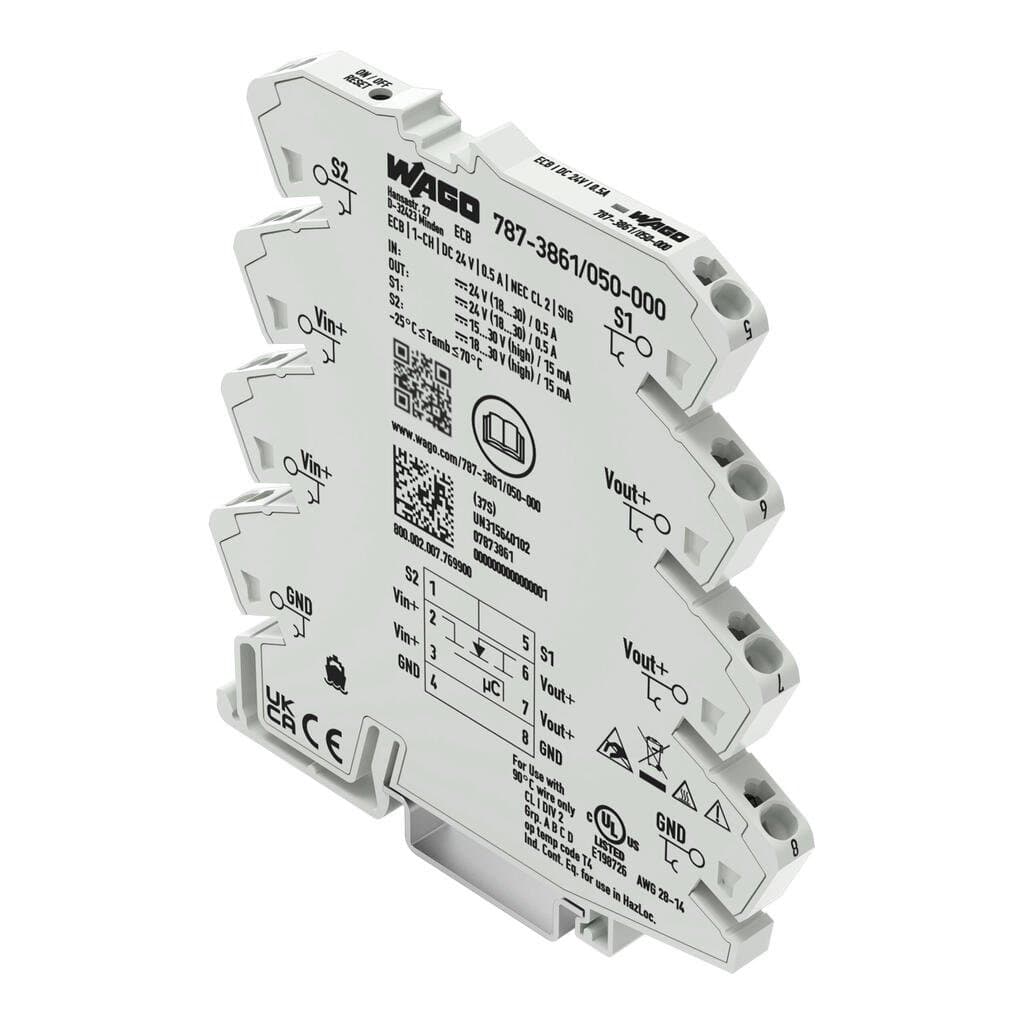

Product Model
787-3861/050-000
Selling Points
- 1Space-saving design with one channel.
- 2Reliable overload and short circuit protection.
- 3Adjustable status signal for single or group messages.
- 4Time-delayed switching on for preventing power supply overload.
- 5High efficiency with power loss ≤ 0.4 W at no load.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The device is designed for use in SELV circuits. | Isolation voltage (connectors – housing) | DC 1.5?kV |
Protection class | III | Protection type | IP20; per EN 60529 |
Reverse voltage protection | No | Transient suppression (primary) | Suppressor diode (33 V) |
Parallel operation of single channels | Not permitted | Series operation | No |
MTBF | 1,168,394 h | Number of jumper slots | 8 |
Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 857 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 26 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Note (conductor cross-section) | Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A) |
Width | 6?mm?/ 0.236?inches | Height | 94 mm / 3.701 inches |
Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches | Mounting type | DIN-35 rail |
Fire load | 0.631MJ | Weight | 55.6g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 10 … 95?% (no condensation permissible) | Derating | No derating |
Operating altitude | ≤ 2000 m (a.s.l.) | Conformity marking | CE; UKCA |
Standards/specifications | EN 61000-6-2 | ETIM 9.0 | EC001440 |
ETIM 8.0 | EC001440 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Bag |
Country of origin | IN | Customs tariff number | 85363010900 |
CAS-No. | 11120-22-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2c687b67-17c4-429a-af69-cba7ea7d8126 | SCIP notification number (Belgium) | b226009e-63e5-4185-b604-e6524ddbc9e1 |
SCIP notification number (Bulgaria) | 7d4d6958-772e-43af-907c-7a2524f2b7a8 | SCIP notification number (Czech Republic) | 5117adb9-3638-4a4d-91fd-f7aceaa32a44 |
SCIP notification number (Denmark) | c7338c05-d5d7-4ba6-9d4e-3943aeacaad3 | SCIP notification number (Finland) | c11408c5-060e-49dc-b069-a614874afded |
SCIP notification number (France) | ac7b5a2a-2fda-4643-8162-669ded93a828 | SCIP notification number (Germany) | b17eff02-2df1-439e-a9c3-528dbb4e79ef |
SCIP notification number (Hungary) | 4c56c711-da61-47e2-978b-43f9aa52a3ed | SCIP notification number (Italy) | b71d8fb2-d4a7-4aed-998e-27fa9eb65362 |
SCIP notification number (Netherlands) | 2de6833b-6ad9-4c3f-9945-a931002413d7 | SCIP notification number (Poland) | f2a46191-1e08-4a55-bb29-3797952dafeb |
SCIP notification number (Romania) | be4a0ea4-645b-449a-b867-1686b995804c | SCIP notification number (Sweden) | fb6ba1fb-c7c1-4c2b-bb59-c62178e24b52 |
Nominal input voltage [V] | DC?24?V | Input voltage range | DC 18 … 30 V |
Number of Channels | 1 | Nominal output voltage [V] | 1 x DC?24?V |
Output voltage range | DC 18 … 30?V?(Ue? voltage drop) | Voltage drop | ≤?40?mV |
Nominal output current I<sub>o nom</sub> | 1 x 0.5?A (fixed setting) | Default setting | switched off |
Trip time | 4 ms … 100 s (load-dependent) | Switch-on capacity | >?50000?μF?(see instruction manual) |
Switch-on behavior | Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms) | Current limitation | No |
Signaling | 1 x Status LED (green/yellow/red) | Operation status indicator | Green LED (channel OK) |
Remote input | 1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A) | Power loss P<sub>l</sub> | ≤ 0.4 W (no load) |
Efficiency (typ.) | 96?% | Internal fuse | T 8 A |
Overvoltage category | II | Pollution degree | 2 |
