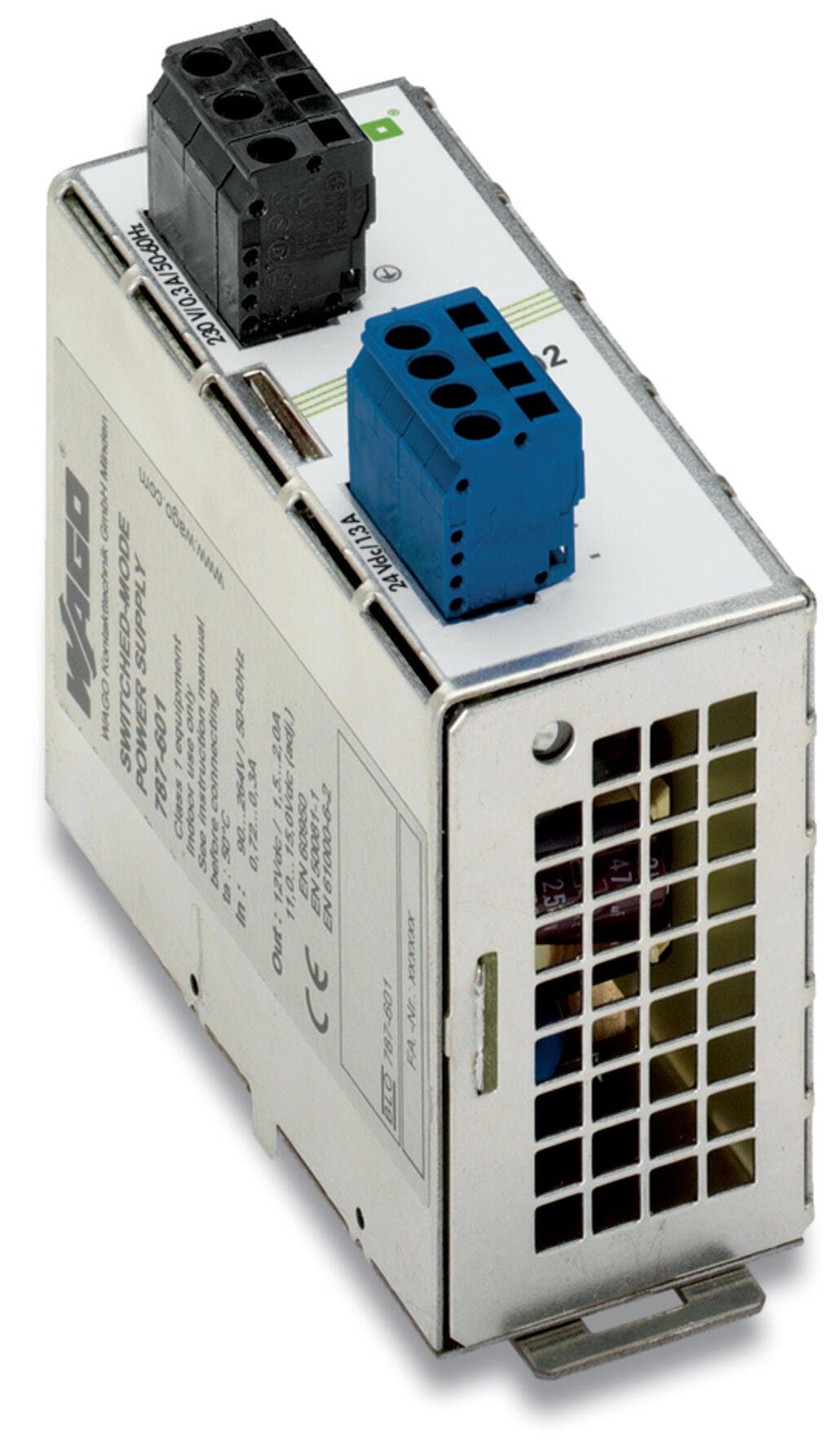

Product Model
787-602
Selling Points
- 1The WAGO 787-602 delivers a stable 24VDC output voltage with a current of 1.3A, ensuring reliable power for your industrial needs.
- 2Designed to be compact and space-efficient, this power supply module is perfect for applications where size is a concern.
- 3Built with high-quality components, the WAGO 787-602 offers long-lasting performance and minimal downtime.
- 4Featuring a straightforward installation process, this power supply module can be quickly integrated into your system.
- 5Meets industry standards for safety and performance, ensuring compliance with various regulatory requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (sec.-PE) | DC 0.7?kV | Protection class | I |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Transient suppression (primary) | Varistor | Overvoltage protection; secondary | Internal protective circuit |
Short-circuit-protected | Yes ("hiccup") | Open-circuit-proof | Yes |
Parallel operation | No | Series operation | Yes |
Connection type 1 | Input/Output | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 231 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 40?mm?/ 1.575?inches |
Height | 90 mm / 3.543 inches | Depth from upper-edge of DIN-rail | 95 mm / 3.74 inches |
Mounting type | DIN-35 rail | Weight | 300g |
Ambient temperature (operation) | -10 … +70 °C | Ambient temperature (storage) | -25 … +85 °C |
Relative humidity | 30 … 85?% (no condensation permissible) | Derating | ?3 %/K (> 50 °C) |
Climatic category | 3K3 (per EN 60721) | Conformity marking | CE |
Standards/specifications | EN 60950-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454435134 | Customs tariff number | 8504409510 |
End of Sale | 2022-09-01 | End of Production | 2022-09-07 |
End of Delivery | 2023-02-28 | End of Service and Repair | 2025-02-28 |
RoHS Compliance Status | Compliant,No Exemption | Phases | 1 |
Nominal input voltage [V] | 1 x AC 100 ... 240 V | Input voltage range | 1 x AC?90 … 264?V;?DC?130 … 300?V |
Nominal mains frequency range | 50 … 60 Hz;0 Hz | Input current I<sub>i</sub> | ≤?0.3?A (230?VAC) |
Inrush current | ≤?25?A | Power factor correction (PFC) | Passive |
Mains failure hold-up time | ≥?20?ms (230?VAC) | Nominal output voltage [V] | DC?24?V (SELV) |
Output voltage range | DC?24?V | Default setting | DC?24?V |
Nominal output current I<sub>o nom</sub> | 1.3?A (24?VDC) | Deviation | ≤?3?% |
Residual ripple | ≤?100?mV (peak-to-peak) | Current limitation | 1.5 x Io nom(typ.) |
Overload behavior | Hiccup | Operation status indicator | Green LED (24 V OK) |
Power loss P<sub>l</sub> | ≤?4.9?W | Power loss (max.) P<sub>l (max.)</sub> | 7?W (90 VAC / 24 VDC; 1.3 A) |
Efficiency (typ.) | 83?% | Internal fuse | T 2 A / 250 VAC |
Backup fusing (required) | An external DC fuse is required for the DC input voltage. | Backup fusing (recommended) | Circuit breaker: C10 or B10 |
Specifications may be subject to change without notice
