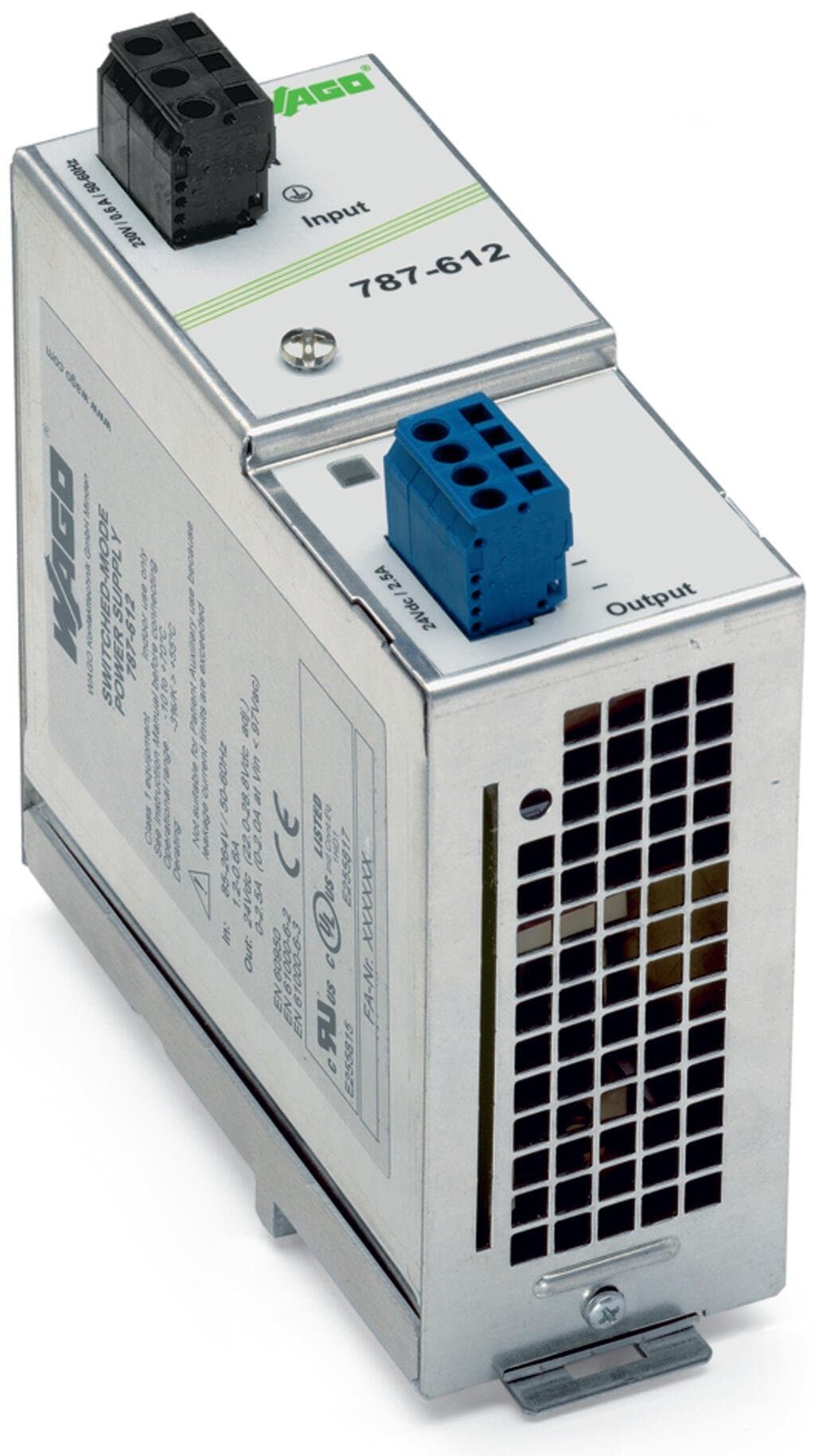

Product Model
787-612
Selling Points
- 1Primary Switch Mode Power Supply: Efficient and reliable DC power solution.
- 224V DC Output: Provides stable 24V DC output with 2.5A current.
- 3Protection Class I: Designed for protection class I equipment, ensuring safety.
- 4Natural Convection Cooling: Utilizes natural convection cooling for horizontal mounting.
- 5Parallel and Series Operation: Supports both parallel and series operation for flexible use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (sec.-PE) | DC 0.7?kV | Protection class | I |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Transient suppression (primary) | Varistor | Overvoltage protection; secondary | Internal protective circuit |
Short-circuit-protected | Yes | Open-circuit-proof | Yes |
Parallel operation | Yes | Series operation | Yes |
Connection type 1 | Input/Output | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 231 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 51?mm?/ 2.008?inches |
Height | 120 mm / 4.724 inches | Depth from upper-edge of DIN-rail | 133 mm / 5.236 inches |
Mounting type | DIN-35 rail | Fire load | 4.4MJ |
Weight | 612.7g | Ambient temperature (operation) | -10 … +70 °C |
Ambient temperature (storage) | -25 … +85 °C | Relative humidity | 30 … 85?% (no condensation permissible) |
Derating | ?3 %/K (> 50 °C) | Climatic category | 3K3 (per EN 60721) |
Conformity marking | CE | Standards/specifications | EN 60950-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-04-07-01 |
eCl@ss 9.0 | 27-04-07-01 | ETIM 9.0 | EC002540 |
ETIM 8.0 | EC002540 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454435202 |
Customs tariff number | 8504409510 | End of Sale | 2022-09-01 |
End of Production | 2022-09-07 | End of Delivery | 2023-02-28 |
End of Service and Repair | 2025-02-28 | RoHS Compliance Status | Compliant,No Exemption |
Phases | 1 | Nominal input voltage [V] | 1 x AC 100 ... 240 V |
Input voltage range | 1 x AC?90 … 264?V;?DC?130 … 300?V | Nominal mains frequency range | 50 … 60 Hz;0 Hz |
Input current I<sub>i</sub> | ≤?0.6?A (230?VAC) | Inrush current | ≤?50?A |
Power factor correction (PFC) | Passive | Mains failure hold-up time | ≥?20?ms (230?VAC) |
Nominal output voltage [V] | DC?24?V (SELV) | Output voltage range | DC?24?V |
Default setting | DC?24?V | Nominal output current I<sub>o nom</sub> | 2.5?A (24?VDC) |
Deviation | ≤?2?% | Residual ripple | ≤?100?mV (peak-to-peak) |
Current limitation | 1.1 x Io nom(typ.) | Overload behavior | Constant current |
Operation status indicator | Green LED (24 V OK) | Power loss P<sub>l</sub> | ≤?7?W |
Power loss (max.) P<sub>l (max.)</sub> | 8?W (90 VAC / 24 VDC; 2.5 A) | Efficiency (typ.) | 90?% |
Internal fuse | T 1.6 A / 250 VAC | Backup fusing (required) | An external DC fuse is required for the DC input voltage. |
Backup fusing (recommended) | Circuit breaker: C10 or B16 |
