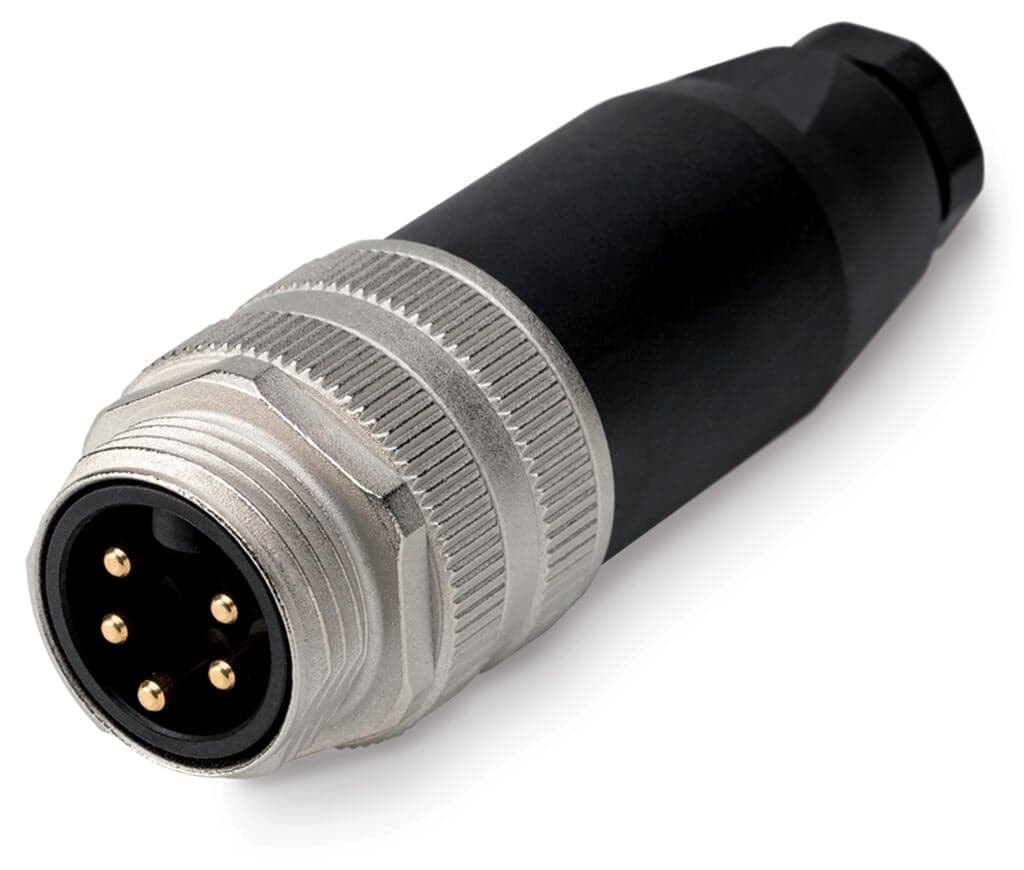

Product Model
787-6716/9500-000
Selling Points
- 1High protection class for safe field applications.
- 2Vibration- and shock-resistant via integrated locking mechanism.
- 37/8 inch screw connection with industry-proven technology.
- 4PUR coating for durability and resistance to environmental factors.
- 5Operating voltage up to 600 V AC/DC and current up to 9 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated surge voltage | 4kV | Protection type | IP67 |
Connection technology | 7/8“; 5-pole | Weight | 40g |
Ambient temperature (operation) | -25 … +80 °C | ETIM 9.0 | EC002635 |
ETIM 8.0 | EC002635 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055143726948 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Operating voltage | AC/DC?600?V | Operating current | 9A |
Specifications may be subject to change without notice
