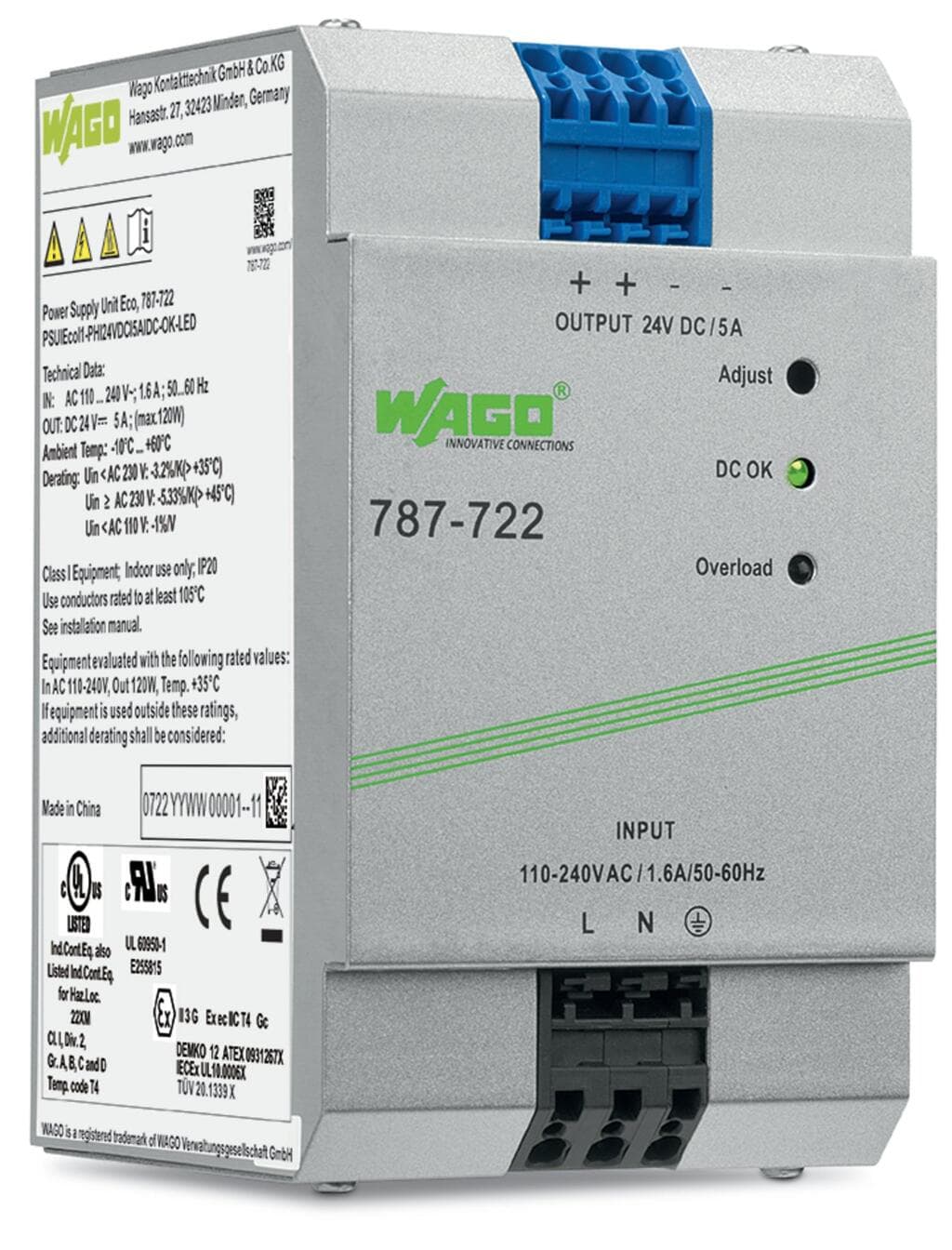

Product Model
787-722
Selling Points
- 1High Efficiency: Achieves 86% efficiency with active power factor correction.
- 2Versatile Mounting: Designed for DIN rail mounting, ideal for control cabinets.
- 3Reliable Output: Provides a stable 24VDC output with ±1% adjustment accuracy.
- 4Safety Features: Includes short-circuit protection, overvoltage protection via varistor, and IP20 protection rating.
- 5Flexible Operation: Supports both parallel and series operation, ensuring reliable power supply in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (pri.-sec., AC) | 3,000V | Isolation voltage (pri.-PE, AC) | 1,500V |
Protection class | I | Protection type | IP20; per EN 60529 |
Overvoltage category | II | Pollution degree | 2 |
Transient suppression (primary) | Varistor | Short-circuit-protected | Yes |
Open-circuit-proof | Yes | Parallel operation | Yes |
Series operation | Yes | Connection type 1 | Input/output |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 745 Series |
Solid conductor | 0.08 … 4 mm2 / 28 … 12 AWG | Fine-stranded conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Width | 75 mm / 2.953 inches | Height | 92 mm / 3.622 inches |
Depth from upper-edge of DIN-rail | 136 mm / 5.354 inches | Mounting type | DIN-35 rail |
Fire load | 4.8MJ | Weight | 850g |
Ambient temperature (operation) | -10 … +60 °C | Ambient temperature (storage) | -25 … +85 °C |
Relative humidity | 10 … 96 % (no condensation permissible) | Derating | ?4 %/K (> 40 °C; 230 VAC) |
Climatic category | 3K3 (per EN 60721) | Conformity marking | CE; UKCA |
Standards/specifications | EN 61010-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4045454908188 | Customs tariff number | 85044083900 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Bulgaria) | c5cda720-be2e-42e5-9f2a-5ee3811607c4 |
SCIP notification number (Czech Republic) | 36f49618-4b21-4699-af60-f1fc5941c014 | Phases | 1 |
Nominal input voltage [V] | 1 x AC 110 … 240 V | Input voltage range | 1 x AC 100 … 264 V |
Nominal mains frequency range | 47 … 63 Hz;0 Hz | Input current I<sub>i</sub> | ≤ 0.7 A (230 VAC); ≤ 1.6 A (115 VAC) |
Power factor correction (PFC) | Active | Nominal output voltage [V] | DC 24 V (SELV) |
Default setting | DC 24 V | Nominal output current I<sub>o nom</sub> | 5 A (24 VDC) |
Nominal output power | 120W | Deviation | ≤ 1 % |
Overload behavior | Constant power (in overload range: 1.15 … 1.4 x Io nom); Shutdown and automatic restart in the event of a short circuit | Signaling | 1 x LED DC OK (green) |
Operation status indicator | Green LED (24 VDC OK) | Power loss P<sub>l</sub> | ≤ 19.5 W (230 VAC; nominal load) |
Power loss (max.) P<sub>l (max.)</sub> | 23.5 W (110 VAC / 24 VDC; 5.5 A) | Efficiency (typ.) | 86 % (230 VAC) |
Internal fuse | F 3.15 A / 250 VAC | Backup fusing (recommended) | Circuit breaker: 10 A, 16 A; Tripping characteristic: B or C |
