Product Model

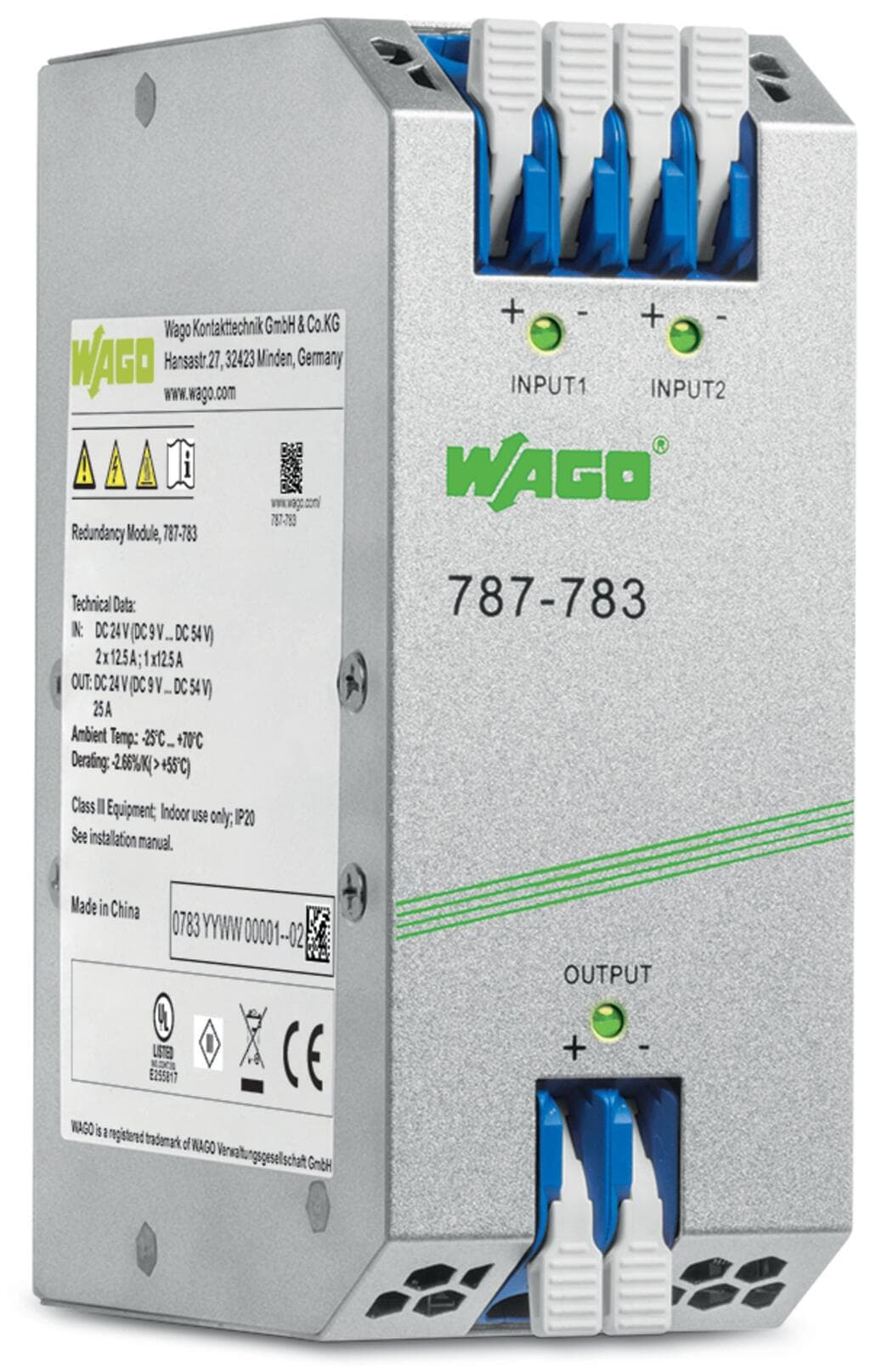

787-783/000-040
Selling Points
- 1Dual 9-54 VDC input voltage for versatile power management.
- 225 A output current for reliable power distribution.
- 396% efficiency for optimal performance and energy savings.
- 4Operating temperature range of -25°C to 70°C for broad environmental compatibility.
- 5Suitable for industrial and commercial applications with high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection class | III | Protection type | IP20; per EN 60529 |
Pollution degree | 2 | Overvoltage protection; secondary | No |
Short-circuit-protected | No | Open-circuit-proof | Yes |
Parallel operation | Yes | Series operation | No |
MTBF | > 10 million h (per IEC 61709) | Connection type 1 | Input/output |
Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 2706 Series |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG |
Strip length | 11 … 12?mm?/ 0.43 … 0.47?inches | Width | 50?mm?/ 1.969?inches |
Height | 130?mm?/ 5.118?inches | Depth from upper-edge of DIN-rail | 92?mm?/ 3.662?inches |
Mounting type | DIN-35 rail | Weight | 470g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 95% (no condensation permissible) | Derating | ?2.66 %/K (55 °C < Tu≤ 70 °C) |
Climatic category | 3K3 (per EN 60721; except for low air pressure) | Resistance to shock and vibration | Shock: 15g (per EN 60068-2-27) |
Conformity marking | CE | Standards/specifications | UL 508 |
ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4055143889605 | Customs tariff number | 8504409510 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage [V] | DC 24 V |
Input voltage range | 2 x DC?9 … 54?V | Nominal mains frequency range | 0?Hz |
Input current I<sub>i</sub> | ≤?12.5?A (per path);?≤?25?A (in total) | Nominal output voltage [V] | DC?24?V |
Output voltage range | DC?24?V | Voltage drop | ≤?0.8?V (Input/output) |
Nominal output current I<sub>o nom</sub> | 12.5?A (redundancy operation);?25?A (Parallel operation) | Nominal output power | 600W |
Signaling | 1 x IN1 LED (green) | Operation status indicator | 2 x Green LED (Ui> 7.5 VDC) |
Power loss P<sub>l</sub> | ≤?19?W (nominal load) | Efficiency (typ.) | 96?% |
Specifications may be subject to change without notice
