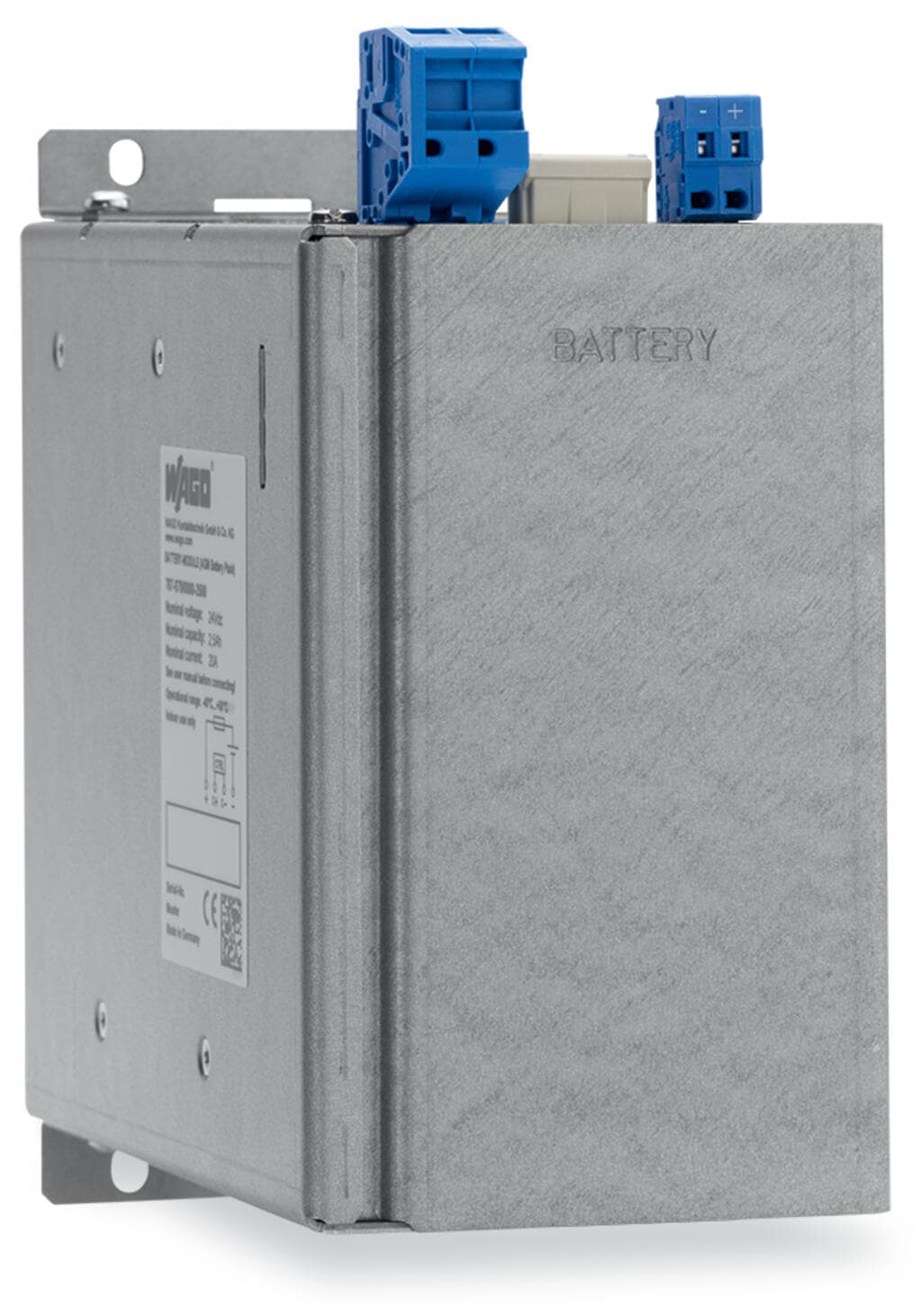

WAGO 787-878/000-2500 Pure Lead Battery Module

Selling Points

1High-capacity 2.5 Ah battery module for reliable power.
220 A output current for efficient energy distribution.
3Intelligent battery management with battery control.
4Compatible with various mounting options, including direct screw connection and DIN-rail mount.
5CE marked for compliance with European safety standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Protection class	III	Protection type	IP20; per EN 60529
Overvoltage category	I	Pollution degree	2
Parallel operation	Yes	Service life (typ.)	15?/ 8?/ 4?a (20?/ 30?/ 40?°C)
Connection type 1	Input/Output	Connection technology	CAGE CLAMP?
WAGO connector	WAGO 831 Series	Solid conductor	0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor	0.08 … 2.5?mm2?/ 28 … 12?AWG	Strip length	8 … 9?mm?/ 0.31 … 0.35?inches
Connection type 2	Battery control	Connection technology 2	CAGE CLAMP?
WAGO connector 2	WAGO 231 Series	Solid conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG	Strip length 2	8 … 9?mm?/ 0.31 … 0.35?inches
Cable length (max.)	3?m	Width	86?mm?/ 3.386?inches
Height	186?mm?/ 7.323?inches	Depth	160?mm?/ 6.299?inches
Mounting type	Direct screw connection	Weight	3535g
Ambient temperature (operation)	-40 … +60 °C	Ambient temperature (storage)	-40 … +60 °C
Relative humidity	5 … 80?% (no condensation permissible)	Self-discharge	3 % per month at 20 °C
Commissioning	6 months at 30 … 40 °C	Conformity marking	CE
ETIM 9.0	EC000357	ETIM 8.0	EC000357
ECCN	NO US CLASSIFICATION	PU (SPU)	1?pcs
Packaging type	box	Country of origin	DE
GTIN	4055143738101	Customs tariff number	85044083900
RoHS Compliance Status	Compliant,No Exemption	Nominal input voltage [V]	DC?24?V
Nominal output voltage [V]	DC?24?V	Nominal output current I<sub>o nom</sub>	20?A
Amp hours	2.5Ah	Charging current	≤?5?A
End-of-charge voltage	DC 27 V (25 °C)	Internal fuse	T 25 A

Specifications may be subject to change without notice
