Product Model

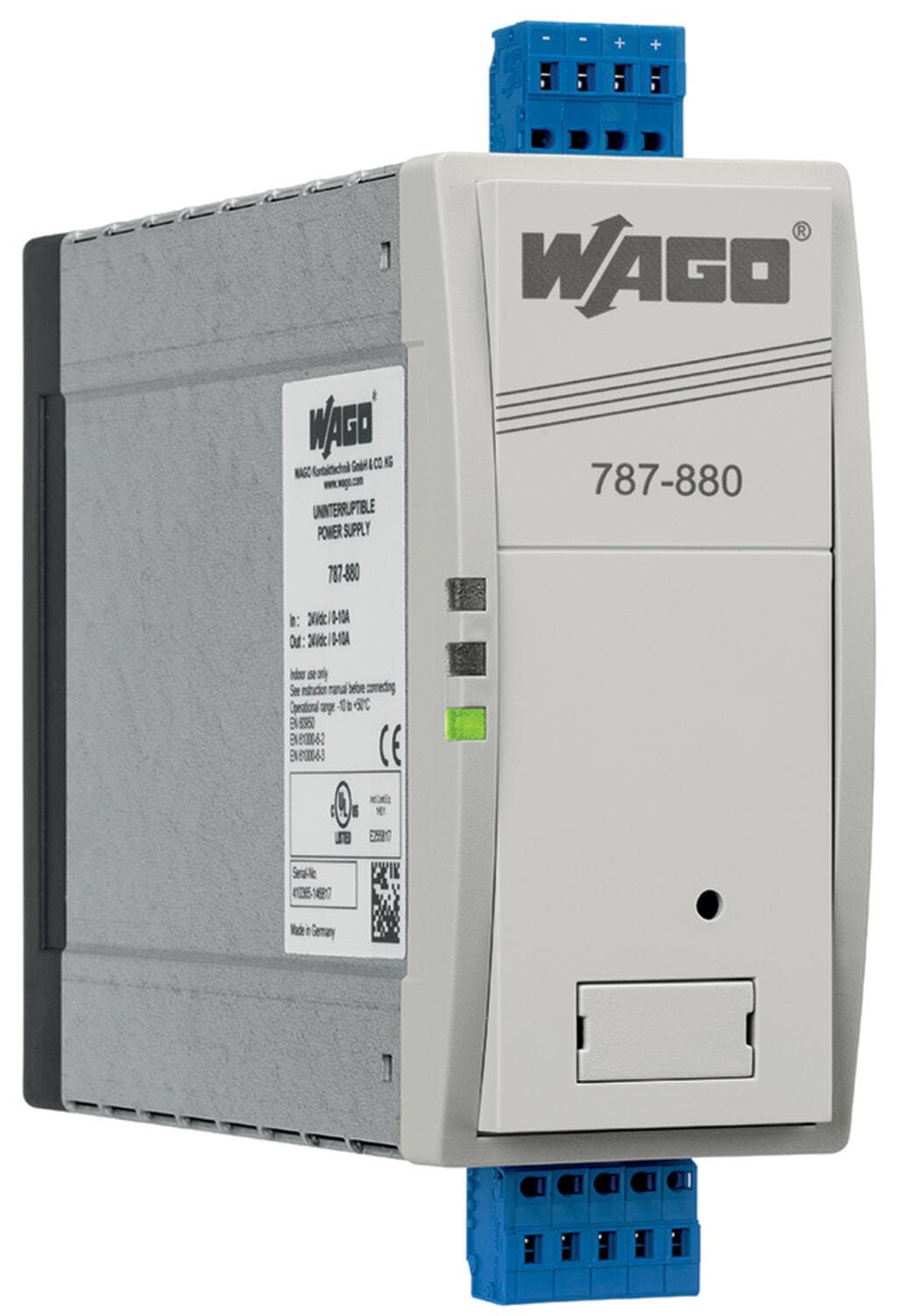

787-880
Selling Points
- 124 VDC Input and Output Voltage: Ensures stable power supply for your devices.
- 210 A Output Current: Provides sufficient power for demanding applications.
- 30.06 to 7.2 Seconds Buffer Time: Offers reliable operation with minimal downtime.
- 4Communication Capability: Integrates seamlessly with various communication systems.
- 5Compact Design: Easy to install and integrate into your control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection class | III | Protection type | IP20; per EN 60529 |
Reverse voltage protection | yes | Pollution degree | 2 |
Parallel operation | Yes | Series operation | No |
MTBF | typ. 87,600 h (at 25 °C); typ. 30,500 h (at 40 °C) | Connection type 1 | Input/Output/Relay |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 231 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 57?mm?/ 2.244?inches |
Height | 163?mm?/ 6.417?inches | Depth from upper-edge of DIN-rail | 179?mm?/ 7.047?inches |
Note (dimensions) | Height with connector | Mounting type | DIN-35 rail |
Weight | 1000g | Ambient temperature (operation) | -10 … +50 °C |
Ambient temperature (storage) | -10 … +60 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
Conformity marking | CE | Standards/specifications | EN 60950 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-04-07-01 |
eCl@ss 9.0 | 27-04-07-01 | ETIM 9.0 | EC002540 |
ETIM 8.0 | EC002540 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454909833 |
Customs tariff number | 8504904100 | RoHS Compliance Status | Compliant,No Exemption |
Nominal input voltage [V] | DC?24?V | Input voltage range | DC?20 … 30?V |
Nominal mains frequency range | 0?Hz | Input current I<sub>i</sub> | ≤?0.06?A (No load);?≤?1?A (Charging);?≤?11?A |
Nominal output voltage [V] | DC?24?V | Output voltage range | DC?24?V |
Nominal output current I<sub>o nom</sub> | 10?A | Current limitation | 1.1 x Io nom(typ.) |
Buffer time | 0.06 … 7.2?s depends on load current and switch-on threshold | Switch-on threshold (adjustable) | DC?20 … 24?V |
Charging time (typ.) | 5min | Signaling | 1 x LED DC OK (green) |
Operation status indicator | Green LED (Uo> 20 V) | Power loss P<sub>l</sub> | ≤?1.5?W;?≤?6.5?W (nominal load) |
Specifications may be subject to change without notice
