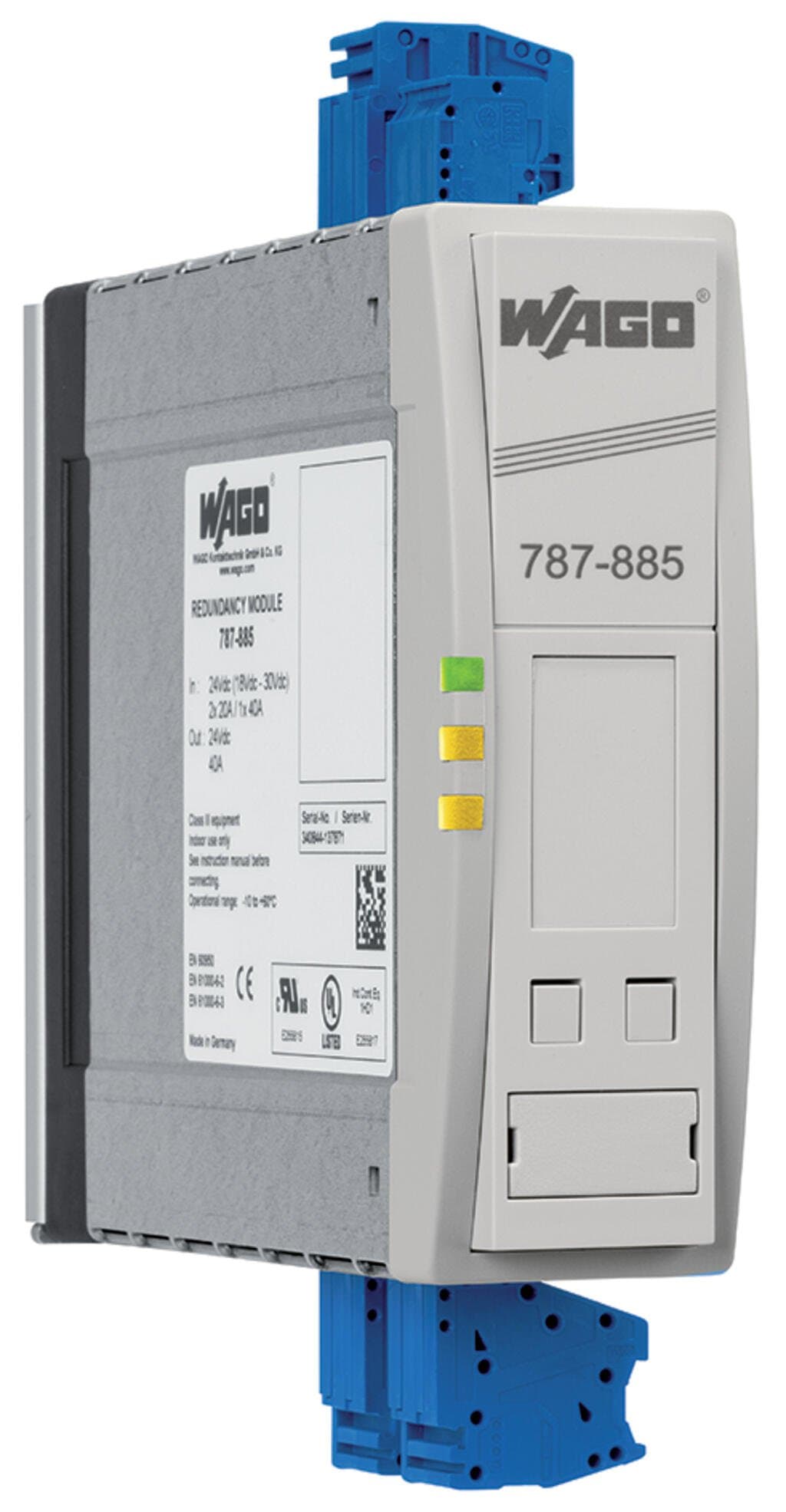

Product Model
787-885
Selling Points
- 1Redundant Power Supply: Decouples two power supplies for fail-safe operation.
- 2Dual Inputs: Supports two 24 VDC inputs with up to 20 A each.
- 3High Output Current: Delivers 40 A output current at 24 VDC.
- 4Efficient Design: Low power loss with an efficiency of 97%.
- 5Easy Monitoring: Includes LEDs and potential-free contacts for input voltage monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection class | III | Protection type | IP20; per EN 60529 |
Reverse voltage protection | Yes | Pollution degree | 2 |
Parallel operation | Yes | Series operation | Yes |
MTBF | > 500,000 h (per IEC 61709) | Connection type 1 | Input/output |
Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 831 Series |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Connection type 2 | Relay |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 231 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 40?mm?/ 1.575?inches |
Height | 181?mm?/ 7.126?inches | Depth from upper-edge of DIN-rail | 163?mm?/ 6.417?inches |
Note (dimensions) | Height with connector | Mounting type | DIN-35 rail |
Weight | 972g | Ambient temperature (operation) | -10 … +60 °C |
Ambient temperature (storage) | -25 … +85 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
Conformity marking | CE | Standards/specifications | EN 60950 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-04-07-01 |
eCl@ss 9.0 | 27-04-07-01 | ETIM 9.0 | EC002540 |
ETIM 8.0 | EC002540 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4045454909802 |
Customs tariff number | 8504409580 | RoHS Compliance Status | Compliant,No Exemption |
Nominal input voltage [V] | DC 24 V | Input voltage range | 2 x DC?18 … 30?V |
Nominal mains frequency range | 0?Hz | Input current I<sub>i</sub> | ≤?20?A (per path);?≤?40?A (in total) |
Nominal output voltage [V] | DC?24?V | Output voltage range | DC 24 V |
Voltage drop | ≤?0.6?V (Input/output) | Nominal output current I<sub>o nom</sub> | 20?A (redundancy operation);?40?A (Parallel operation) |
Nominal output power | 960W | Signaling | 1 x OUT LED (green) |
Operation status indicator | Green LED (Uo) | Power loss P<sub>l</sub> | ≤?1.5?W;?≤?14?W (24 VDC; 20 A);?≤?26?W (48 VDC; 40 A) |
Efficiency (typ.) | 97?% | Internal fuse | No |
Specifications may be subject to change without notice
