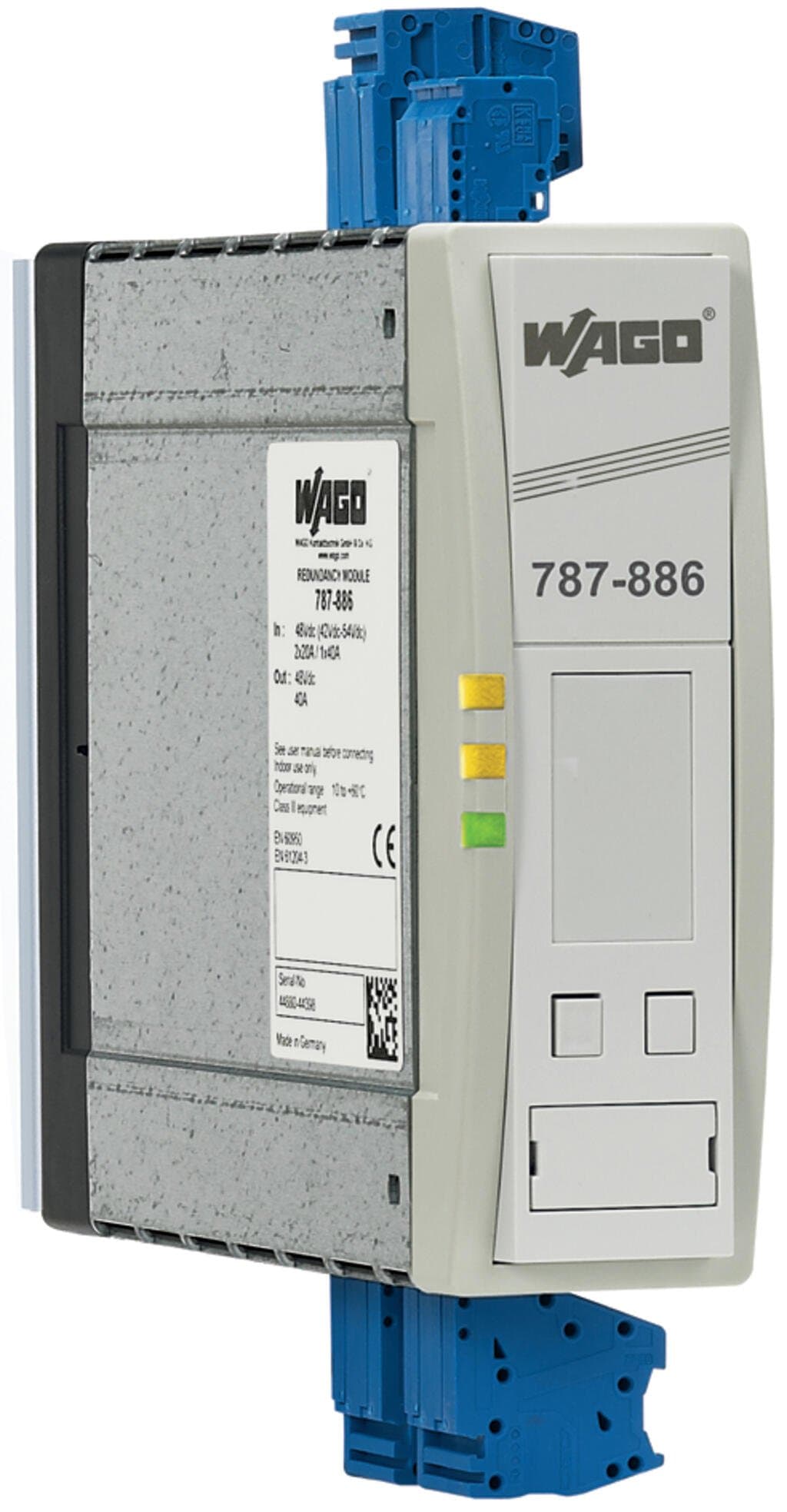

Product Model
787-886
Selling Points
- 1Dual input voltage ranges of 36-54Vdc for enhanced reliability.
- 2Provides a 48Vdc output at 40A for efficient power distribution.
- 3Features Push-in CAGE CLAMP spring connections for secure wiring.
- 4Designed for DIN-35 rail mounting with a 40mm width for easy integration.
- 5Compliant with EU RoHS regulations for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection class | III | Protection type | IP20; per EN 60529 |
Reverse voltage protection | Yes | Pollution degree | 2 |
Parallel operation | Yes | Series operation | Yes |
MTBF | > 500,000 h (per IEC 61709) | Connection type 1 | Input/output |
Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 831 Series |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Connection type 2 | Relay |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 231 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 40?mm?/ 1.575?inches |
Height | 181?mm?/ 7.126?inches | Depth from upper-edge of DIN-rail | 163?mm?/ 6.417?inches |
Note (dimensions) | Height with connector | Mounting type | DIN-35 rail |
Weight | 860g | Ambient temperature (operation) | -10 … +60 °C |
Ambient temperature (storage) | -25 … +85 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
Conformity marking | CE | Standards/specifications | EN 60950 |
Standards/specifications (pending) | UL 60950 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4050821262725 | Customs tariff number | 8504409580 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage [V] | 2 x DC?48?V |
Input voltage range | 2 x DC?36 … 54?V | Nominal mains frequency range | 0?Hz |
Input current I<sub>i</sub> | ≤?20?A (per path);?≤?40?A (in total) | Nominal output voltage [V] | DC?48?V |
Output voltage range | DC?48?V | Voltage drop | ≤?1?V (Input/output) |
Nominal output current I<sub>o nom</sub> | 20?A (redundancy operation);?40?A (Parallel operation) | Nominal output power | 1920W |
Signaling | 1 x OUT LED (green) | Operation status indicator | Green LED (Uo) |
Power loss P<sub>l</sub> | ≤?1.7?W (48 VDC; No load);?≤?20?W (48 VDC; 20 A);?≤?40?W (48 VDC; 40 A) | Efficiency (typ.) | 96?% |
Internal fuse | No |
