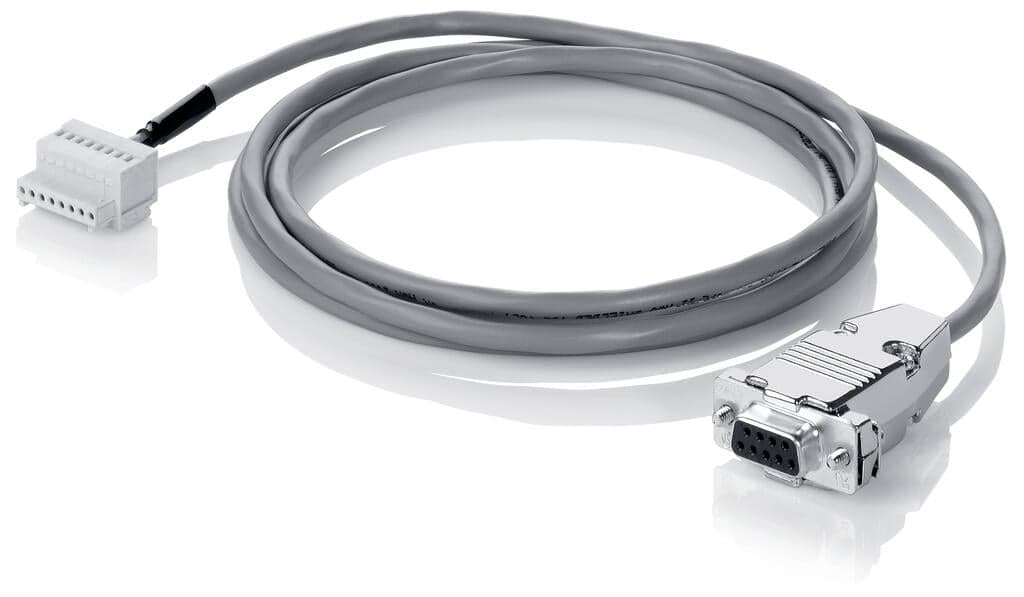

Product Model
787-892
Selling Points
- 1High-Quality Shielded Cable: 3 x 0.34 mm shielded cable ensures reliable data transmission.
- 2Versatile Connectors: Equipped with a 4-pin female connector and a 9-pin D-sub connector for versatile connections.
- 3Electrically Isolated: Designed to prevent electrical interference, ensuring clear signal transmission.
- 4IP20 Rated: Meets IP20 protection standards, suitable for industrial environments.
- 5Compact Length: Ideal for 1.8 meters of cable length, perfect for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The communication cable is not electrically isolated. | Protection type | IP20; per EN 60529 |
Connection type 1 | Module side (787-1675) | Connection technology | 1 x 4-pole female connector (734-104) with strain relief |
Connection type 2 | PC/controller side | Connection technology 2 | 1 x 9 pole D-sub socket |
Cable type | 3 x 0.34 mm2; shielded | Cable length | 1.8m |
Weight | 97g | Ambient temperature (operation) | -10 … +70 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-06-18-90 |
eCl@ss 9.0 | 27-06-03-11 | ETIM 9.0 | EC001408 |
ETIM 8.0 | EC001408 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821787402 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Signaling | 1 x RS-232 cable | Communications | RS-232 serial interface |
Specifications may be subject to change without notice
