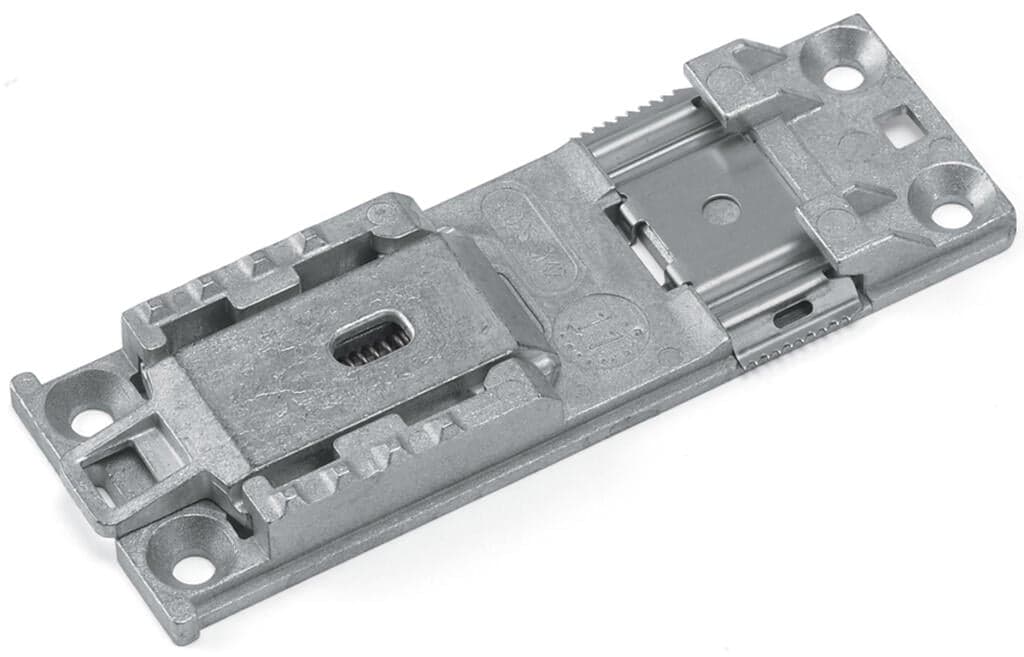

Product Model
787-897
Selling Points
- 1Made of zinc die-cast for durability and resistance to corrosion.
- 2Designed for mounting 787-8xx devices to DIN 35 rails.
- 3Allows horizontal mounting with easy position adjustment.
- 4Mounting is performed by sliding parts into guide slots and screwing.
- 5Compatible with DIN-35 rail (EN 60715) for secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 37?mm?/ 1.457?inches | Height | 102.5?mm?/ 4.035?inches |
Depth | 10.5?mm?/ 4.134?inches | Mounting type | DIN-35 rail |
Material | Zinc die-cast | Weight | 96g |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-04-19 |
eCl@ss 9.0 | 27-37-04-19 | ETIM 9.0 | EC001024 |
ETIM 8.0 | EC001024 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821445418 |
Customs tariff number | 7907006000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
