Product Model

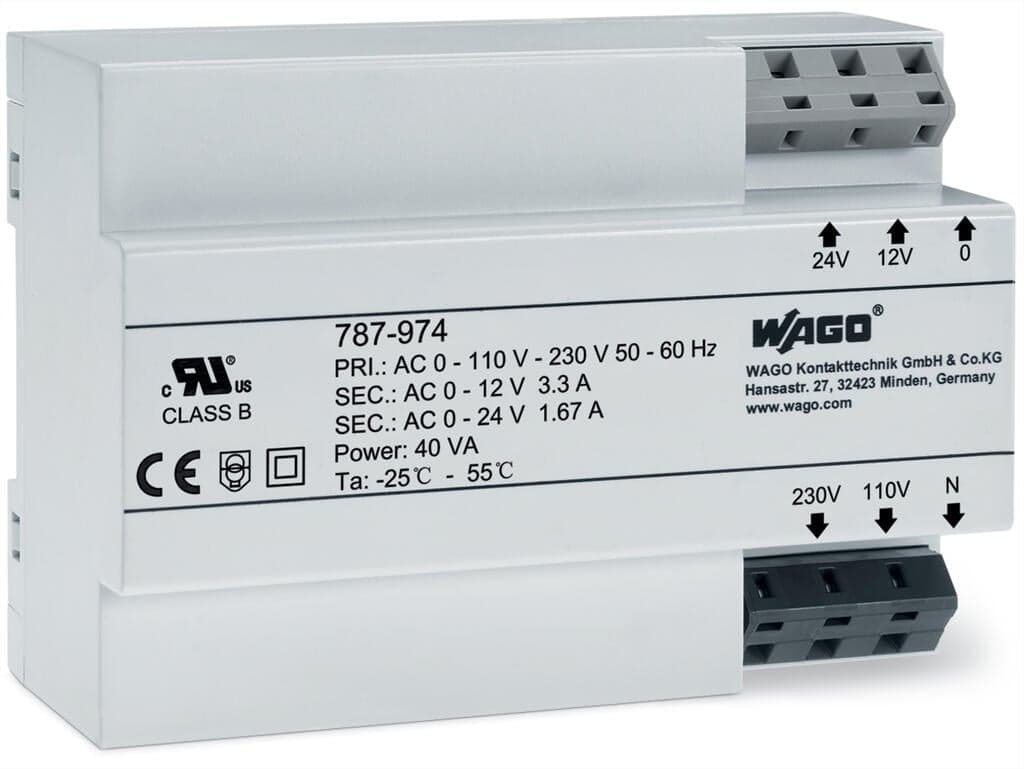

787-974
Selling Points
- 1Built with CAGE CLAMP technology for secure connections.
- 2Measures 90 mm x 126 mm, perfect for DIN-35 rail mounting.
- 3Provides output voltage range of 12-24VAC.
- 4Open-circuit-proof and short-circuit-protected for reliability.
- 5Meets UL 5085 and EN 61558-2-6 standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (AC) | AC 4.2?kV | Protection class | II |
Protection type | IP20; per EN 60529 | Overvoltage category | III |
Pollution degree | 2 | Short-circuit-protected | Yes |
Open-circuit-proof | Yes | Parallel operation | No |
Series operation | Yes (with identical power supply) | Connection type 1 | Input/Output |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 236 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 126?mm?/ 4.961?inches |
Height | 90?mm?/ 3.543?inches | Depth from upper-edge of DIN-rail | 54?mm?/ 2.126?inches |
Housing design | DIN-rail-mount enclosure | Mounting type | DIN-35 rail |
Fire load | 0.119MJ | Weight | 955.6g |
Ambient temperature (operation) | -25 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Relative humidity | 90% | Climatic category | 3K3 (per EN 60721; except for low air pressure) |
Conformity marking | CE | Standards/specifications | UL 5085 |
eCl@ss 10.0 | 27-04-07-03 | eCl@ss 9.0 | 27-04-07-03 |
ETIM 9.0 | EC002541 | ETIM 8.0 | EC002541 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143487382 | Customs tariff number | 8504312000 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Bulgaria) | 350022b7-821c-488d-b8da-6d408234a641 |
SCIP notification number (Czech Republic) | 8dfb2390-60c8-4ede-8228-194d177967db | Phases | 1 |
Nominal input voltage [V] | 1 x AC 100 ... 240 V | Input voltage range | 1 x AC?0 … 230?V |
Nominal mains frequency range | 50 … 60?Hz | Nominal output voltage [V] | AC?12 / 24?V |
Nominal output current I<sub>o nom</sub> | 3.3 A (AC 12 V); 1.67 A (AC 24 V) | Overload behavior | Safety fuse in the primary circuit |
Power loss P<sub>l</sub> | ≤?0.6?W | Internal fuse | T 1.25 A / 250 VAC; T 0.63 A / 250 VAC |
Specifications may be subject to change without notice
