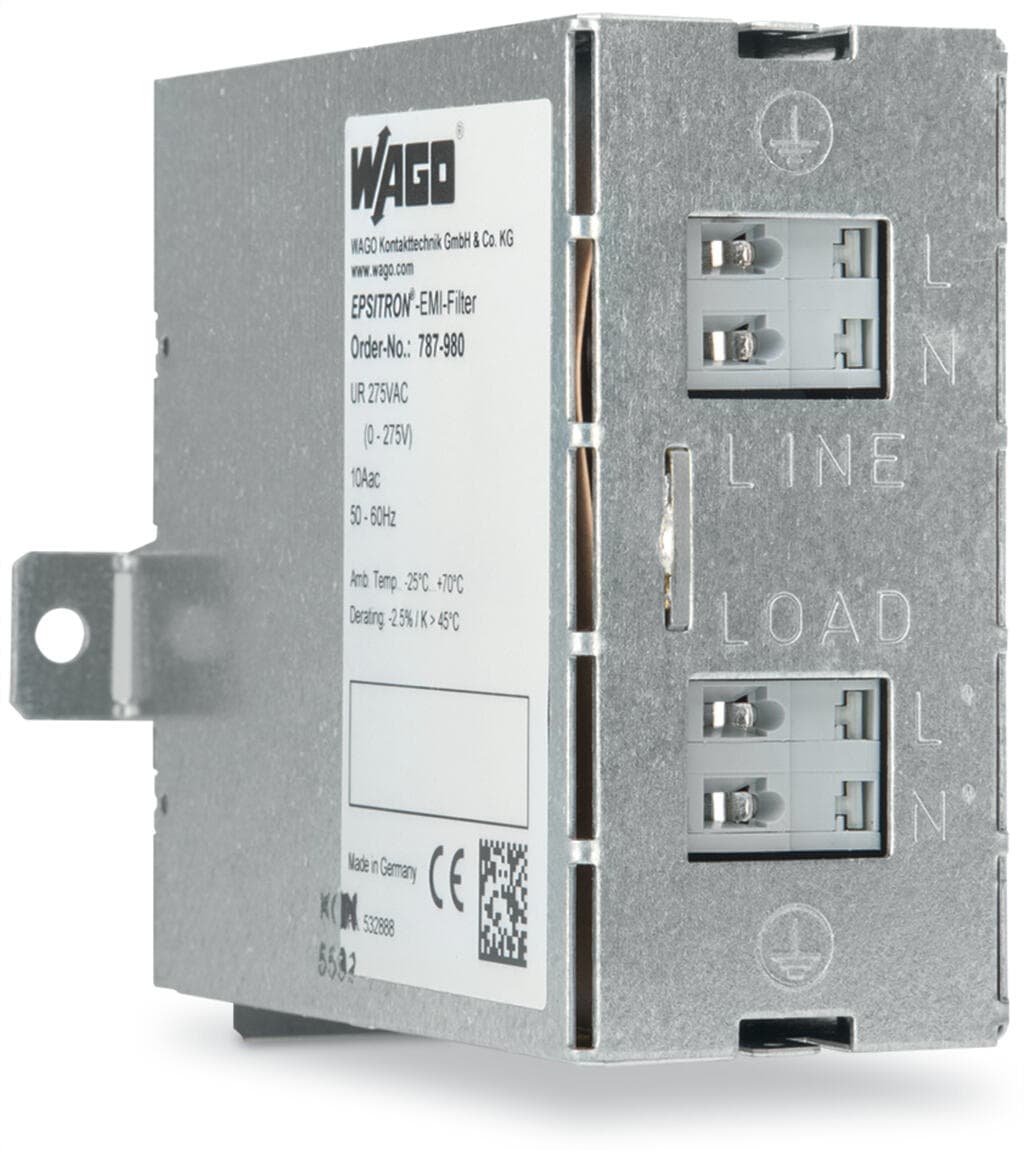

wago 787-980

Selling Points

  • 1Efficiently filters out line-bound interference emissions.
  • 2Compliant with DIN EN 60939-2 and DNV GL standards.
  • 3Features CAGE CLAMP spring connections for secure mounting.
  • 4Suitable for DIN-35 rail mounting with a 50mm width.
  • 5Provides a single-stage filter solution for increased interference immunity.
Product Details
787-980
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Protection class
I
Protection type
IP20; per EN 60529
Pollution degree
2
Series operation
No
Connection type 1
L1, N
Connection technology
CAGE CLAMP?
WAGO connector
WAGO 741 Series
Solid conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Strip length
5 … 6?mm?/ 0.2 … 0.24?inches
Connection type 2
PE
Connection technology 2
Flat connector (6.3 x 0.8 mm)
Width
50?mm?/ 1.969?inches
Height
85?mm?/ 3.346?inches
Depth from upper-edge of DIN-rail
100?mm?/ 3.937?inches
Mounting type
DIN-35 rail
Weight
340g
Ambient temperature (operation)
-25 … +70 °C (Device starts at ?40 °C (type-tested))
Derating
?2.5 %/K (> 45 °C)
Climatic category
25/085/21 (per EN 60068-1)
Conformity marking
CE
Standards/specifications
DIN EN 60939-2
eCl@ss 10.0
27-42-02-90
eCl@ss 9.0
27-42-02-90
ETIM 9.0
EC002564
ETIM 8.0
EC002564
ECCN
NO US CLASSIFICATION
PU (SPU)
1?(1)?pcs
Packaging type
box
Country of origin
DE
GTIN
4055143364515
Customs tariff number
8504409510
RoHS Compliance Status
Compliant,No Exemption
Phases
1
Nominal input voltage [V]
1 x AC 100 ... 240 V
Input voltage range
1 x AC?0 … 250?V
Nominal mains frequency range
50 … 60?Hz
Input current I<sub>i</sub>
≤?10?A
Power loss P<sub>l</sub>
≤?4?W

Specifications may be subject to change without notice
