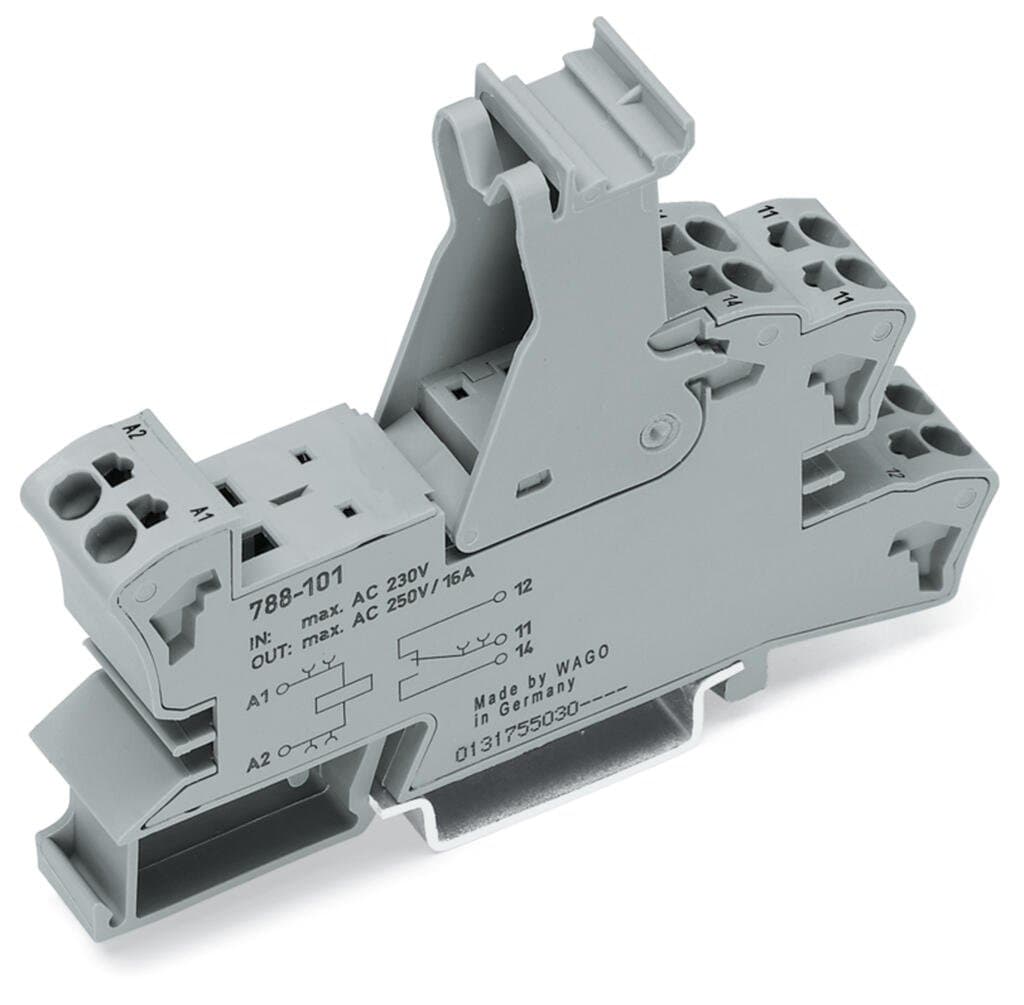

Product Model
788-103
Selling Points
- 1DIN-35 Rail Mounting: Easy installation on standard DIN-35 rail.
- 22 Changeover Contacts: Supports two changeover contacts for versatile control.
- 3250VAC/16A Rating: Compatible with 250VAC and 16A continuous current.
- 4Push-in CAGE CLAMP: Secure and efficient connection technology.
- 5IP20 Protection: Ensures reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The specified technical data are maximum values. They may be limited by the accessories used. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 3 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3.6?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (channel/channel) (AC, 1 min.) | (depending on relay)) | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
Insulation type (load/load circuit) | Basic insulation | Insulation type (between adjacent devices of the same type) | Basic insulation |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 15?mm?/ 0.591?inches |
Height | 86?mm?/ 3.386?inches | Depth from upper-edge of DIN-rail | 64?mm?/ 2.52?inches |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.636MJ |
Weight | 31g | Relative temperature index for plastic (RTI per UL) | 105°C |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature (storage) | -40 … +80 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-03 | eCl@ss 9.0 | 27-37-16-03 |
ETIM 9.0 | EC001456 | ETIM 8.0 | EC001456 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?(1)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4050821591801 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | AC/DC?230?V |
Input voltage range | AC/DC?0 … 250?V | Nominal input current at U<sub>N</sub> | 0 |
Nominal frequency range | ≤60?Hz | Number of changeover contacts | 2 |
Limiting continuous current | 8?A | Switching Voltage, Max. | AC?300?V |
Specifications may be subject to change without notice
