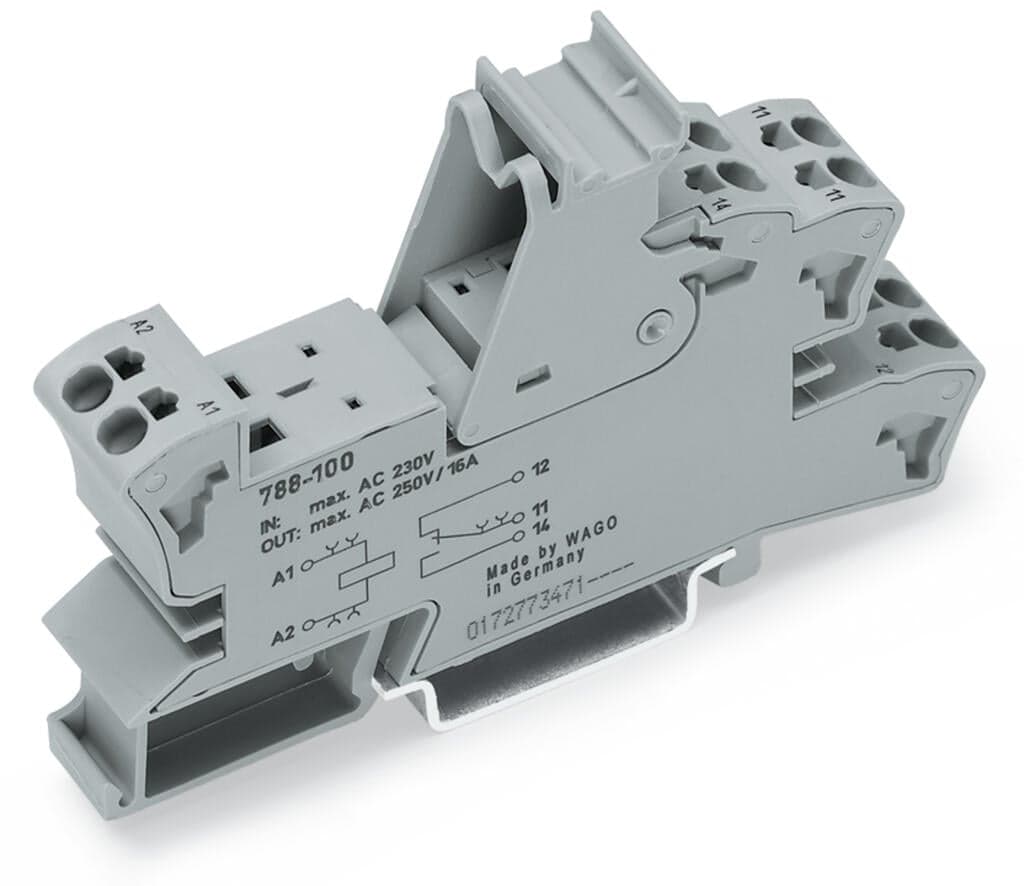

Product Model
788-109
Selling Points
- 1High Dielectric Strength: 6 kVrms for control/load circuit and 1 kVrms for open contact.
- 2Robust Construction: Designed for reliable operation in harsh environments with a pollution degree of 3.
- 3Manual Operation: Easy to use with manual operation for precise control.
- 4Versatile Connectivity: Supports solid and fine-stranded conductors (0.34–2.5 mm² / 22–14 AWG).
- 5Durable Mounting: Compatible with DIN-35 rail mounting for secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The specified technical data are maximum values. They may be limited by the accessories used. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 3 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3.6?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (load/load circuit) | Basic insulation |
Insulation type (between adjacent devices of the same type) | Basic insulation | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 15?mm?/ 0.591?inches | Height | 86?mm?/ 3.386?inches |
Depth from upper-edge of DIN-rail | 73?mm?/ 2.874?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Fire load | 0.669MJ |
Weight | 31.6g | Relative temperature index for plastic (RTI per UL) | 105°C |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature (storage) | -40 … +80 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-03 | eCl@ss 9.0 | 27-37-16-03 |
ETIM 9.0 | EC001456 | ETIM 8.0 | EC001456 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?(1)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4045454931049 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | AC/DC?230?V |
Input voltage range | AC/DC?0 … 250?V | Nominal frequency range | ≤60?Hz |
Number of changeover contacts | 2 | Limiting continuous current | 8?A |
Switching Voltage, Max. | AC?300?V |
