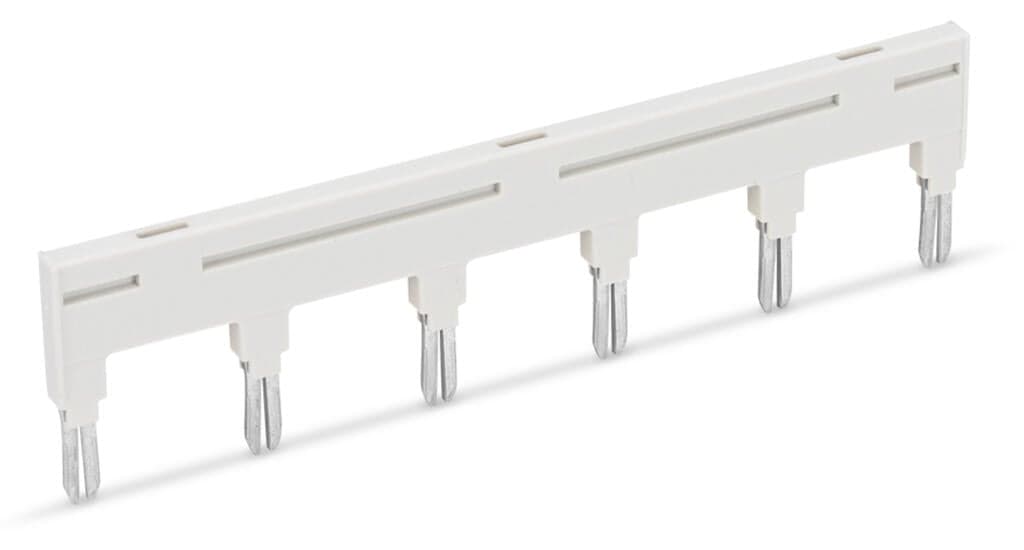

Product Model
788-116
Selling Points
- 1High-current rating of 18A for reliable connections.
- 2Insulated design for safety and durability.
- 36-way configuration for versatile jumper applications.
- 4Compact dimensions: 3.1 mm depth, 21.5 mm height, and 79.2 mm width.
- 5Ideal for jumper slots in various electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated current | 18A | Width | 79.2?mm?/ 3.118?inches |
Height | 21.5?mm?/ 0.846?inches | Depth | 3.1?mm?/ 0.122?inches |
Color | light gray | Fire load | 0.044MJ |
Weight | 4.9g | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC002586 | ETIM 8.0 | EC002586 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454469382 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
