Product Model

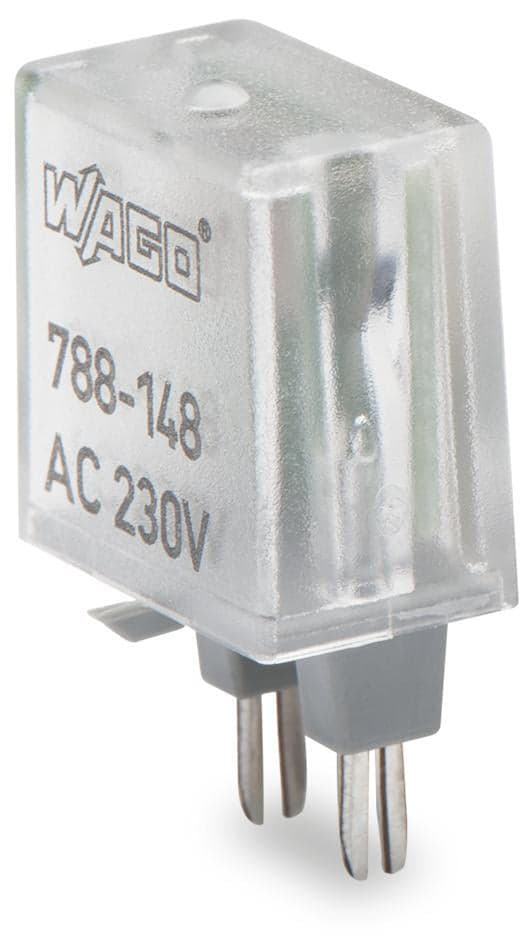

788-148
Selling Points
- 1High-Quality RC Filter Element: The WAGO 788-148 is a precise RC filter module designed to meet high standards.
- 2230 VAC Compatibility: Suitable for use with nominal voltages of up to 230 VAC.
- 3Pluggable Design: Easy to install and mount with its pluggable module design.
- 4Compact Size: Measures 10 mm in depth and 15 mm in width, making it space-efficient.
- 5Reliable Performance: Ensures stable operation with low power consumption (7.2 mA at 230 VAC).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | To guarantee safe operation, residual voltages (due to the cable capacitance of long connection lines or leakage currents of semi-conductor switches and their protective circuits) must be lower than the release voltage of the relays.For DC relays, the release voltage is specified with ≤ 5% of the nominal voltage; for AC relays, it is 15% of the nominal voltage (per VDE 0435).The relay may not reset if a high residual voltage exists. Depending on the reason for the residual voltage, changing the cable routing or a parallel connection of an RC element could remedy this situation. | Protection type | IP20 |
Width | 15?mm?/ 0.591?inches | Height from the surface | 15.7?mm?/ 0.618?inches |
Depth | 10?mm?/ 0.394?inches | Mounting type | Pluggable module |
Note (material data) | Information on material specifications can be found here | Fire load | 0.027MJ |
Weight | 1.5g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +70 °C | Standards/specifications | EN 60664-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-92 | ETIM 9.0 | EC002586 |
ETIM 8.0 | EC002586 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821583547 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Nominal input current at U<sub>N</sub> | 0 | Nominal operating voltage | AC?230?V |
Operating voltage | 0 … 230?VAC | Current consumption at U<sub>N</sub> | 7.2?mA (230 VAC; 50 Hz);?3.6?mA (115 VAC; 50 Hz) |
Nominal mains frequency range | 50 … 60?Hz | Resistor | 470Ω |
Capacitance | 100?nF |
Specifications may be subject to change without notice
