Product Model
788-154
Selling Points
- 1Compact design with a module width of 13 mm and height of 15 mm.
- 2Nominal input voltage of 24 VDC for reliable operation.
- 3Limiting continuous current of 16 A for efficient switching.

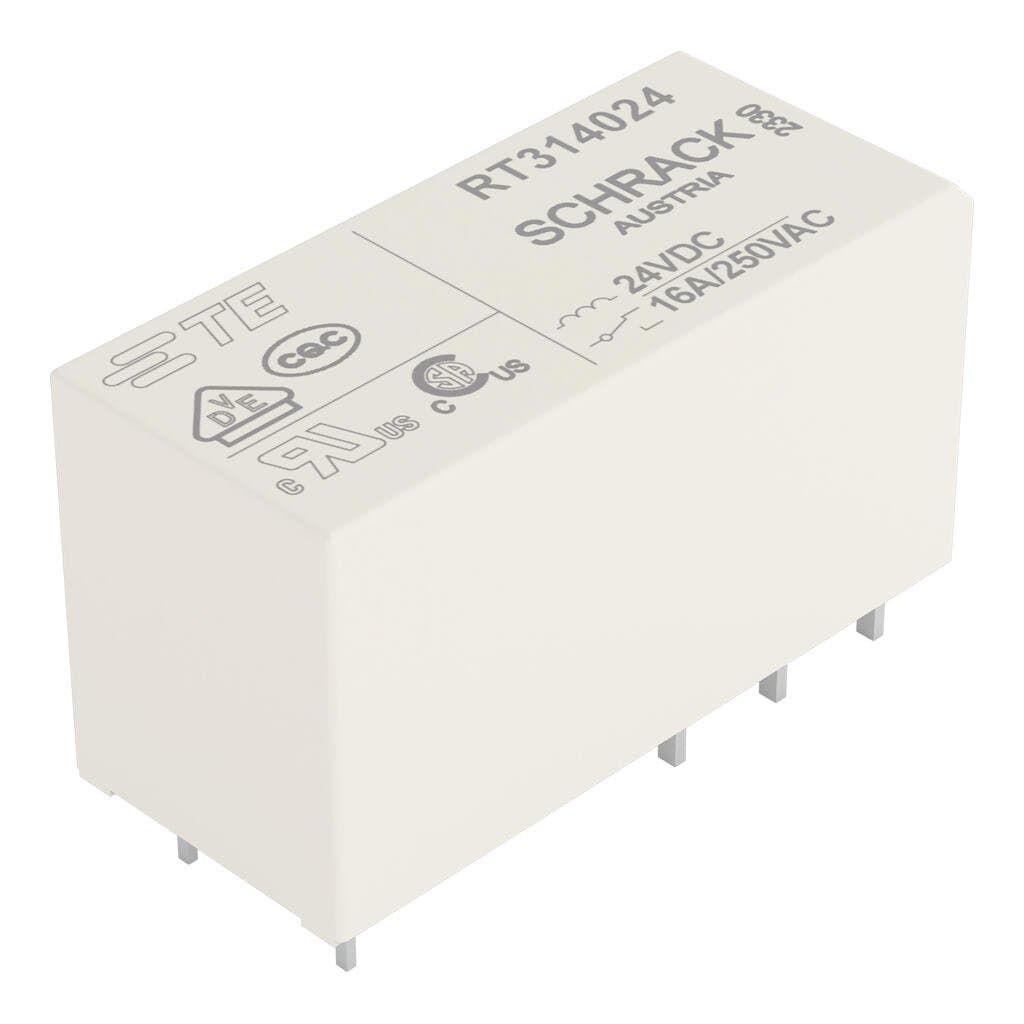

- 4Pluggable miniature switching relay with 1 changeover contact (Form C).
- 5High mechanical life with over 30 million switching operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Protection type | IP40 | Width | 12.7?mm?/ 0.5?inches |
Height from the surface | 15.7?mm?/ 0.618?inches | Depth | 29?mm?/ 1.142?inches |
Mounting type | Pluggable module | Note (material data) | Information on material specifications can be found here |
Fire load | 0.25MJ | Weight | 14g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +85 °C | Ambient temperature (storage) | -40 … +85 °C |
Standards/specifications | EN 61810-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?(1)?pcs |
Packaging type | box | Country of origin | AT |
GTIN | 4045454396633 | Customs tariff number | 8536490075 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 7a571d4c-192a-4ca2-85de-304cdbac31bb |
SCIP notification number (Belgium) | 52d423f3-8808-4329-b1e2-ba8286d96e6b | SCIP notification number (Bulgaria) | 06718a1c-6c47-4311-b2ca-9b0af63a96c3 |
SCIP notification number (Czech Republic) | 4d22e33f-96f1-40e2-bef3-5de13c7c564c | SCIP notification number (Denmark) | 2a1d33f4-0c9d-4a74-a927-88c4df768ed9 |
SCIP notification number (Finland) | 4834f906-499b-4c29-86df-8c1a554f4332 | SCIP notification number (France) | a9093bca-47c8-4466-a73b-621a75b9d715 |
SCIP notification number (Germany) | ba63bd51-c15d-4b6a-9e23-bb91602c47c2 | SCIP notification number (Hungary) | 18d4e688-25da-4afb-a639-f2a5d7986032 |
SCIP notification number (Italy) | 4bbceb96-2015-4ae8-bc12-7e44172e2534 | SCIP notification number (Netherlands) | 9e1b60f4-54c2-469d-9d0e-830fd42a7369 |
SCIP notification number (Poland) | 410db261-de04-41ba-954e-3e1d8d1cdaa9 | SCIP notification number (Romania) | ef3ffcf5-e50a-4f4a-9d19-f8866f8e785c |
SCIP notification number (Sweden) | 22900c6d-2722-4dad-85e3-fa1dc511c316 | Nominal input voltage U<sub>N</sub> | DC?24?V |
Nominal input current at U<sub>N</sub> | 17?mA | Number of changeover contacts | 1 |
Contact material (relay) | AgNi 90/10 | Limiting continuous current | 16?A |
Inrush current (resistive) max. | (AC) 30?A?/ 4?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?4000?VA;?DC (see load limit curve) | Switching capacity | AC-15:?6?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V |
Recommended minimum load | 12?V?/ 10?mA | Pull-in time (typ.) | 8ms |
Drop-out time (typ.) | 6ms | Bounce time (typ.) | 6ms |
Electrical life (NO; resistive load; 23?°C) | 30?x 103 switching operations | Mechanical life | 30?x 10? switching operations |
Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Specifications may be subject to change without notice
