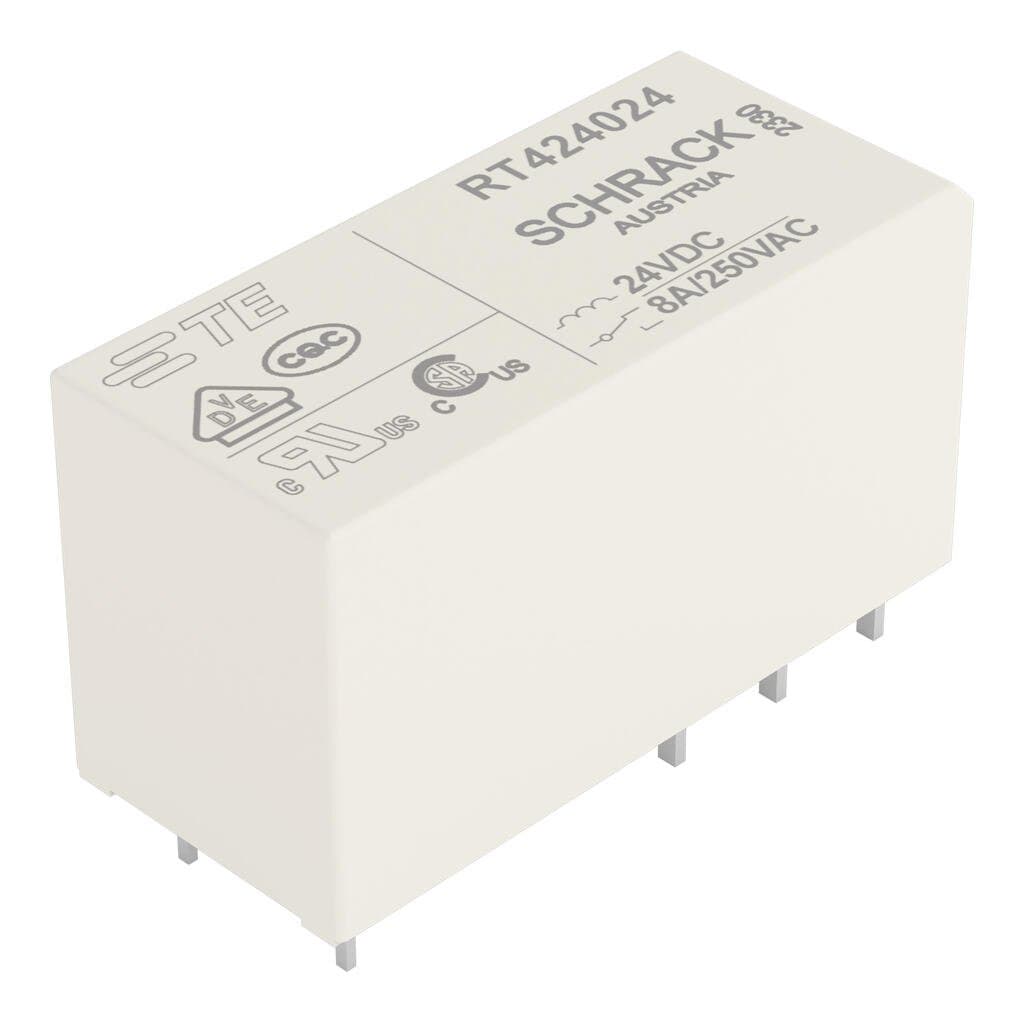

Product Model
788-156
Selling Points
- 1Compact Design: 29 mm depth, 13 mm width, and 15 mm height for easy integration.
- 2High Reliability: 30 x 106 switching operations mechanical life ensures long-term performance.
- 3Versatile Mounting: Pluggable module design for easy installation and removal.
- 4Robust Contacts: Made of Silver-Nickel (AgNi 90/10) material for reliable switching.
- 5Compliant Standards: Meets EN 61810-1 standards, ensuring compatibility with various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 2.5?kVrms | Protection type | IP40 |
Width | 12.7?mm?/ 0.5?inches | Height from the surface | 15.7?mm?/ 0.618?inches |
Depth | 29?mm?/ 1.142?inches | Mounting type | Pluggable module |
Note (material data) | Information on material specifications can be found here | Fire load | 0.68MJ |
Weight | 13.6g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +85 °C |
Ambient temperature (storage) | -40 … +85 °C | Standards/specifications | EN 61810-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?(1)?pcs | Packaging type | box |
Country of origin | AT | GTIN | 4044918971881 |
Customs tariff number | 8536490075 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 16380775-5ade-47b7-b9a2-473fd41b6d53 | SCIP notification number (Belgium) | 99d65ef7-ffbd-4096-989c-cba462daaed2 |
SCIP notification number (Bulgaria) | 1614bc46-37d6-4889-be8f-0482bf04d1d7 | SCIP notification number (Czech Republic) | a16d6cb2-7233-4e95-8194-d9e2c670886a |
SCIP notification number (Denmark) | 84aa989a-3ad6-43af-b3ff-bb1f2413bf5a | SCIP notification number (Finland) | f51fc8ff-91cb-4772-8ec2-2fedbaca3b79 |
SCIP notification number (France) | 0ade93f4-ac11-4600-b3ea-008304b29311 | SCIP notification number (Germany) | 6ebdb412-9a95-425f-9893-d83d9ebd2f55 |
SCIP notification number (Hungary) | 3fdaac84-0eb6-430a-8a53-7593428a0a71 | SCIP notification number (Italy) | bc15bf02-e616-40ba-bfbc-7f7b9c3943cf |
SCIP notification number (Netherlands) | 8e3d2e72-86d1-49f4-bc9c-eae8cb6810ad | SCIP notification number (Poland) | 1ba5e6a6-f056-4ac6-9a9e-3792e2447eaa |
SCIP notification number (Romania) | b76ab434-8cd5-4d58-9095-b10d9911985a | SCIP notification number (Sweden) | 24acd247-fe13-499d-9c3e-dcca0bee7c90 |
Nominal input voltage U<sub>N</sub> | DC?24?V | Nominal input current at U<sub>N</sub> | 17?mA |
Number of changeover contacts | 2 | Contact material (relay) | AgNi 90/10 |
Limiting continuous current | 8?A | Inrush current (resistive) max. | (AC) 15?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?2000?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 12?V?/ 10?mA |
Pull-in time (typ.) | 8ms | Drop-out time (typ.) | 6ms |
Bounce time (typ.) | 10ms | Electrical life (NO; resistive load; 23?°C) | 10?x 103 switching operations |
Mechanical life | 30?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Specifications may be subject to change without notice
