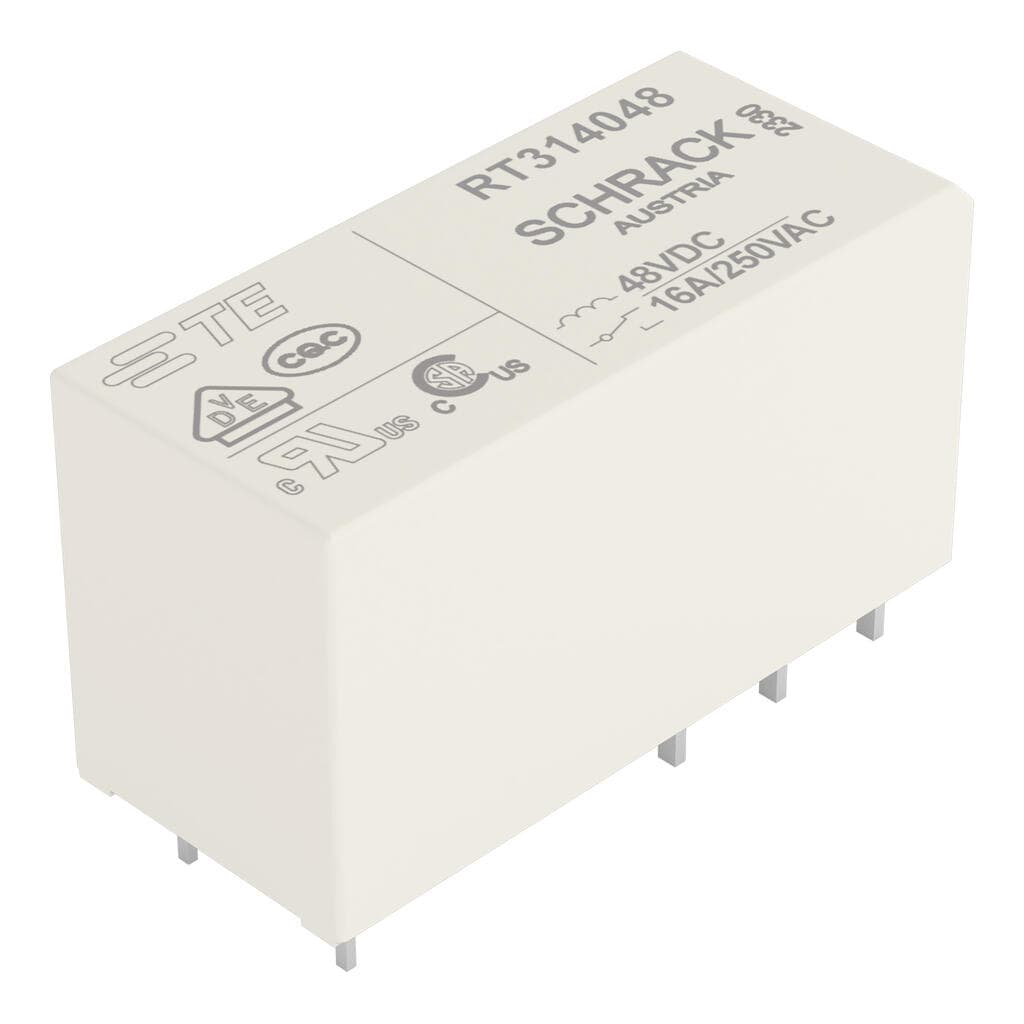

Product Model
788-158
Selling Points
- 1Reliable Operation: Designed for continuous use with a limiting current of 16 A.
- 2Compact Design: Measuring 13 mm in width and 15 mm in height, perfect for space-constrained applications.
- 3Versatile Voltage Range: Operates at 48 VDC nominal input voltage.
- 4High Shock and Vibration Resistance: Ensures stable performance in harsh environments.
- 5Easy Installation: Equipped with push-in CAGE CLAMP connection technology for quick and secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Protection type | IP40 | Width | 12.7?mm?/ 0.5?inches |
Height from the surface | 15.7?mm?/ 0.618?inches | Depth | 29?mm?/ 1.142?inches |
Mounting type | Pluggable module | Note (material data) | Information on material specifications can be found here |
Weight | 13.1g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +85 °C |
Ambient temperature (storage) | -40 … +85 °C | Standards/specifications | EN 61810-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821867784 |
Customs tariff number | 85364900990 | CAS-No. | 80-05-7 |
REACH Candidate List Substance | 4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 4d128dbb-22ad-4004-b243-ac53f756e107 | SCIP notification number (Belgium) | cfb83a63-3638-4ccd-9b4a-4cd36d332706 |
SCIP notification number (Bulgaria) | 332692d6-fb38-48c5-a4c6-d63b81833055 | SCIP notification number (Czech Republic) | d4f0b9a6-a585-4b62-934a-e30d449a4dcc |
SCIP notification number (Denmark) | ac2add43-4c20-4867-bb6a-70b19be340e0 | SCIP notification number (Finland) | 99f5245c-8331-419e-af54-cb922c9ae1e1 |
SCIP notification number (France) | 9ca1d434-110c-4e7f-bc2d-40f326aa1d22 | SCIP notification number (Germany) | 2dc2ea3d-7a8c-46f9-9d6a-fd4ecb4f48de |
SCIP notification number (Hungary) | 85de9453-da0c-49f7-970c-6bf80bf69e0b | SCIP notification number (Italy) | 3db3ecb2-d71e-4d4e-b970-af436f855832 |
SCIP notification number (Netherlands) | 115c65dc-883d-42ec-903e-5b6420f1e936 | SCIP notification number (Poland) | 30a2ddba-132a-4b8f-a3f7-65db79bf15ee |
SCIP notification number (Romania) | 28032b8f-f16a-40a6-bee2-d3e8aa7e2e5a | SCIP notification number (Sweden) | f7bdaec1-e151-403c-8e3b-059845cf3d02 |
Nominal input voltage U<sub>N</sub> | DC?48?V | Nominal input current at U<sub>N</sub> | 9?mA |
Number of changeover contacts | 1 | Contact material (relay) | AgNi 90/10 |
Limiting continuous current | 16?A | Inrush current (resistive) max. | (AC) 30?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?4000?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?6?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 12?V?/ 10?mA |
Pull-in time (typ.) | 8ms | Drop-out time (typ.) | 6ms |
Bounce time (typ.) | 6ms | Electrical life (NO; resistive load; 23?°C) | 30?x 103 switching operations |
Mechanical life | 30?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Specifications may be subject to change without notice
