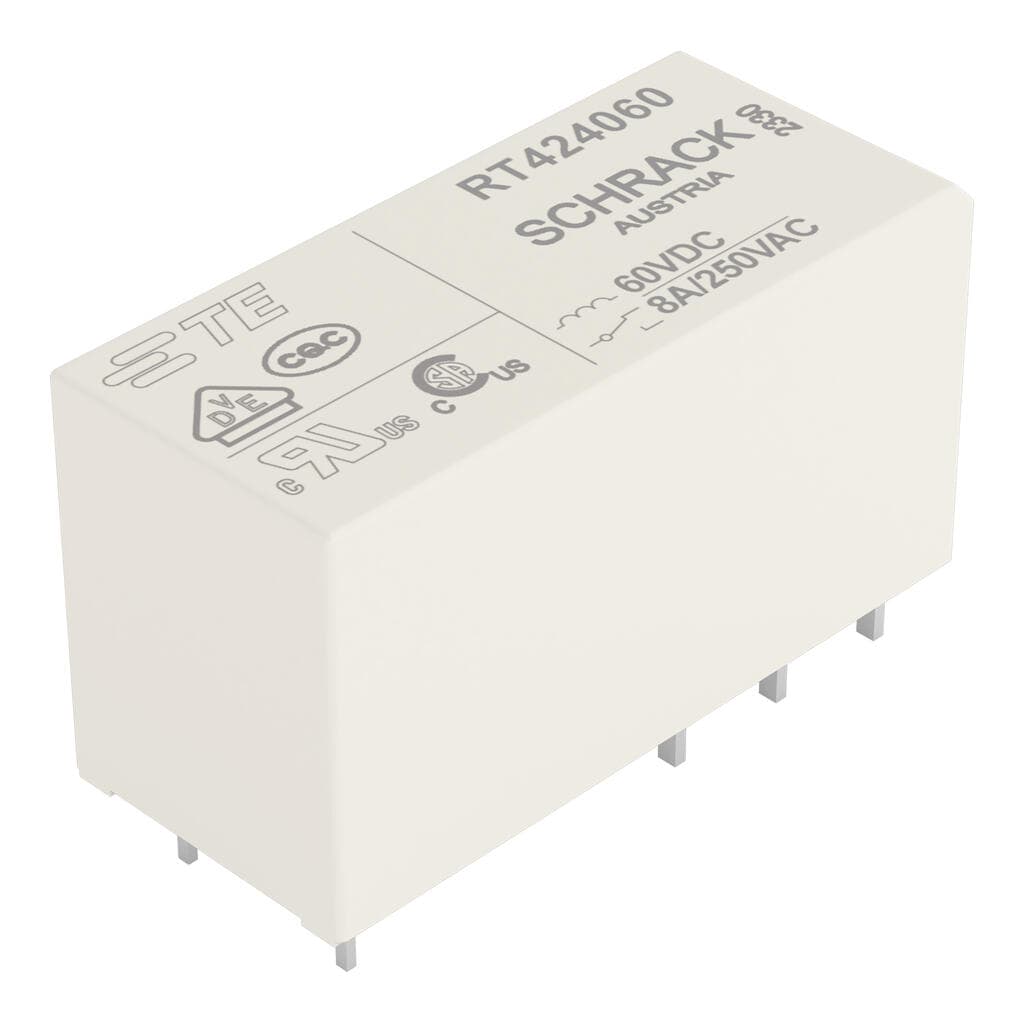

Product Model
788-164
Selling Points
- 1High voltage rating up to 800 V.
- 2Versatile conductor range from 0.14 to 1.5 mm².
- 3Easy push-in termination for solid conductors.
- 4Compatible with various CAD/BIM systems.
- 5Durable and reliable for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 2.5?kVrms | Protection type | IP40 |
Width | 12.7?mm?/ 0.5?inches | Height from the surface | 15.7?mm?/ 0.618?inches |
Depth | 29?mm?/ 1.142?inches | Mounting type | Pluggable module |
Note (material data) | Information on material specifications can be found here | Weight | 12.9g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +85 °C | Ambient temperature (storage) | -40 … +85 °C |
Standards/specifications | EN 61810-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821867814 | Customs tariff number | 8536490075 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 6af765fc-478b-4246-a2ec-b653bd3f2305 |
SCIP notification number (Belgium) | 9f189530-fc50-4a7e-bd5c-e81b4b32dcd4 | SCIP notification number (Bulgaria) | 19fb2a11-b954-4a69-b70d-d91a25f09208 |
SCIP notification number (Czech Republic) | 4c148f8b-029f-46bd-b62a-751b5da3f192 | SCIP notification number (Denmark) | 3c561f7a-01c5-4e0f-aa6c-14c576c55520 |
SCIP notification number (Finland) | 91e722dc-d0c0-49b1-8c3f-da27a50181fd | SCIP notification number (France) | 24e04f38-1b9d-4071-a05d-ad355ea01e45 |
SCIP notification number (Germany) | 2ad7f63b-8f53-4eb1-97d0-f432645b6072 | SCIP notification number (Hungary) | acf6b272-4d38-45e7-81f4-60cfb8ae2f38 |
SCIP notification number (Italy) | 35a4aa6f-1601-497d-ab8b-c98cf53ebe66 | SCIP notification number (Netherlands) | e8bf4db8-4edb-4d42-bb47-b5cfe5e79cdd |
SCIP notification number (Poland) | d90c074b-b210-434a-b254-3d422702aefc | SCIP notification number (Romania) | d01c303a-7513-4330-9aed-e17d46aa1233 |
SCIP notification number (Sweden) | de6c0cb8-5f14-4902-a97e-a20052733d43 | Nominal input voltage U<sub>N</sub> | DC?60?V |
Nominal input current at U<sub>N</sub> | 7?mA | Number of changeover contacts | 2 |
Contact material (relay) | AgNi 90/10 | Limiting continuous current | 8?A |
Inrush current (resistive) max. | (AC) 15?A?/ 4?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?2000?VA;?DC (see load limit curve) | Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V |
Recommended minimum load | 12?V?/ 10?mA | Pull-in time (typ.) | 8ms |
Drop-out time (typ.) | 6ms | Bounce time (typ.) | 10ms |
Electrical life (NO; resistive load; 23?°C) | 10?x 103 switching operations | Mechanical life | 30?x 10? switching operations |
Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Specifications may be subject to change without notice
