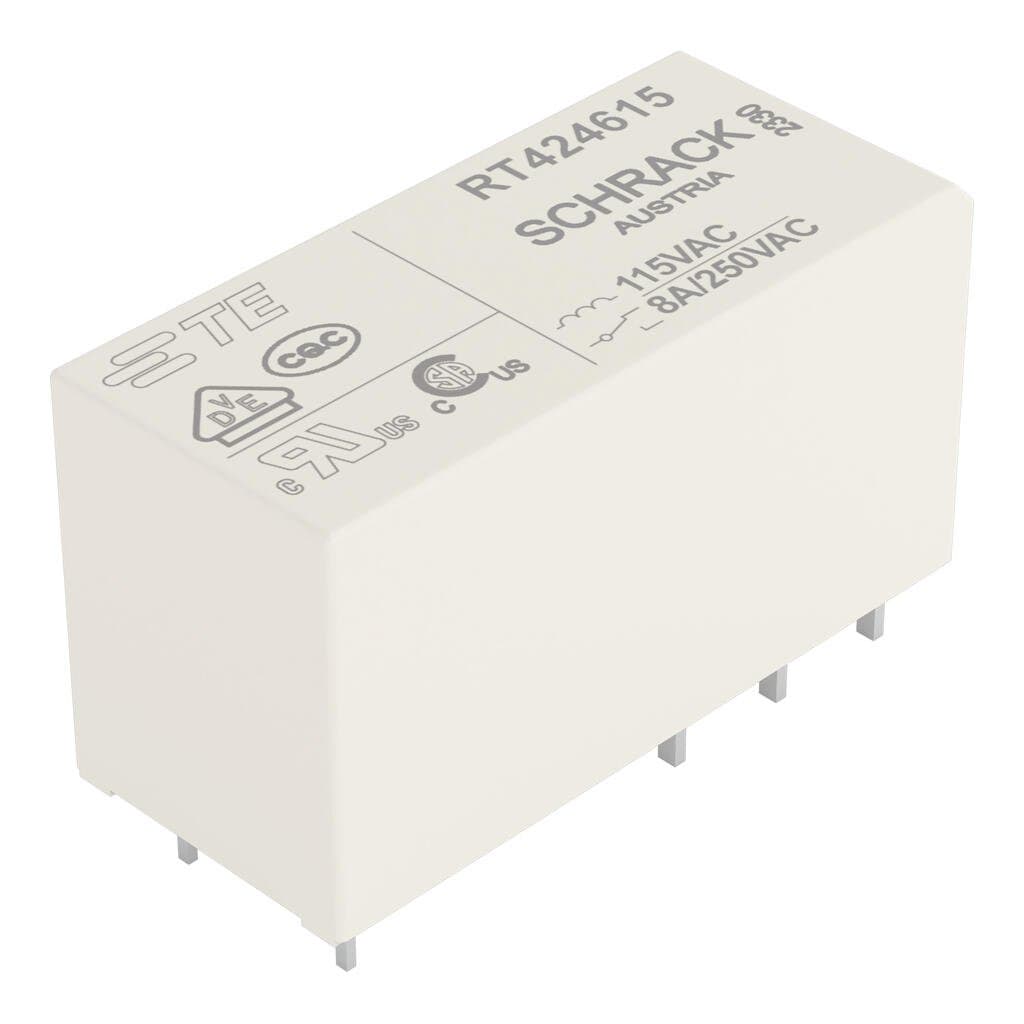

Product Model
788-176
Selling Points
- 1High Reliability: Designed for 30 x 106 switching operations.
- 2Compact Design: Measures 29 mm in depth and 13 mm in width.
- 3Versatile Mounting: Plug-in mounting type for easy installation.
- 4Durable Contacts: Made of Silver-Nickel (AgNi 90/10) material.
- 5Wide Compatibility: Suitable for AC-15: 3 A / AC 250 V and DC-13: 2 A / DC 24 V applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 2.5?kVrms | Protection type | IP40 |
Width | 12.7?mm?/ 0.5?inches | Height from the surface | 15.7?mm?/ 0.618?inches |
Depth | 29?mm?/ 1.142?inches | Mounting type | Pluggable module |
Note (material data) | Information on material specifications can be found here | Fire load | 0.185MJ |
Weight | 12.3g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Standards/specifications | EN 61810-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | AT | GTIN | 4050821867883 |
Customs tariff number | 8536490075 | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | d8c50790-66a1-4a29-9a66-bd3b19513141 | SCIP notification number (Belgium) | 2cb8475a-573c-4f9f-93fa-8ff07e949747 |
SCIP notification number (Bulgaria) | d60ba03a-96a1-49d3-8fbf-28d971a9e825 | SCIP notification number (Czech Republic) | 78c223a4-7cbb-42aa-8609-0d1bea2fa79b |
SCIP notification number (Denmark) | 54864db0-f26f-42aa-ba9f-8c8d88a93eda | SCIP notification number (Finland) | 0e2f7cc1-5a96-401b-8600-2ec6387f98b0 |
SCIP notification number (France) | 99a1978c-985e-4b87-94c5-5dc4534d88f8 | SCIP notification number (Germany) | 972beb0e-cea4-47db-9c6c-5ba64d880812 |
SCIP notification number (Hungary) | 8acaee4c-ccbd-4bd4-85ab-25036884f3ac | SCIP notification number (Italy) | 7504a942-da05-4b66-b0de-202f757859ae |
SCIP notification number (Netherlands) | ed6870d8-78cf-4ba2-bb50-6dc6fd7bd6ed | SCIP notification number (Poland) | 520e7188-aaf0-4ce7-ba50-838aab6e2a43 |
SCIP notification number (Romania) | ea5e1c00-3414-4dac-8ef9-8b6046b23d1a | SCIP notification number (Sweden) | bd3304c9-670d-4162-a500-68cc30c32da3 |
Nominal input voltage U<sub>N</sub> | AC?115?V | Nominal input current at U<sub>N</sub> | 15?mA |
Number of changeover contacts | 2 | Contact material (relay) | AgNi 90/10 |
Limiting continuous current | 8?A | Inrush current (resistive) max. | (AC) 15?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?2000?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 12?V?/ 10?mA |
Pull-in time (typ.) | 8ms | Drop-out time (typ.) | 6ms |
Bounce time (typ.) | 10ms | Electrical life (NO; resistive load; 23?°C) | 10?x 103 switching operations |
Mechanical life | 30?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Specifications may be subject to change without notice
