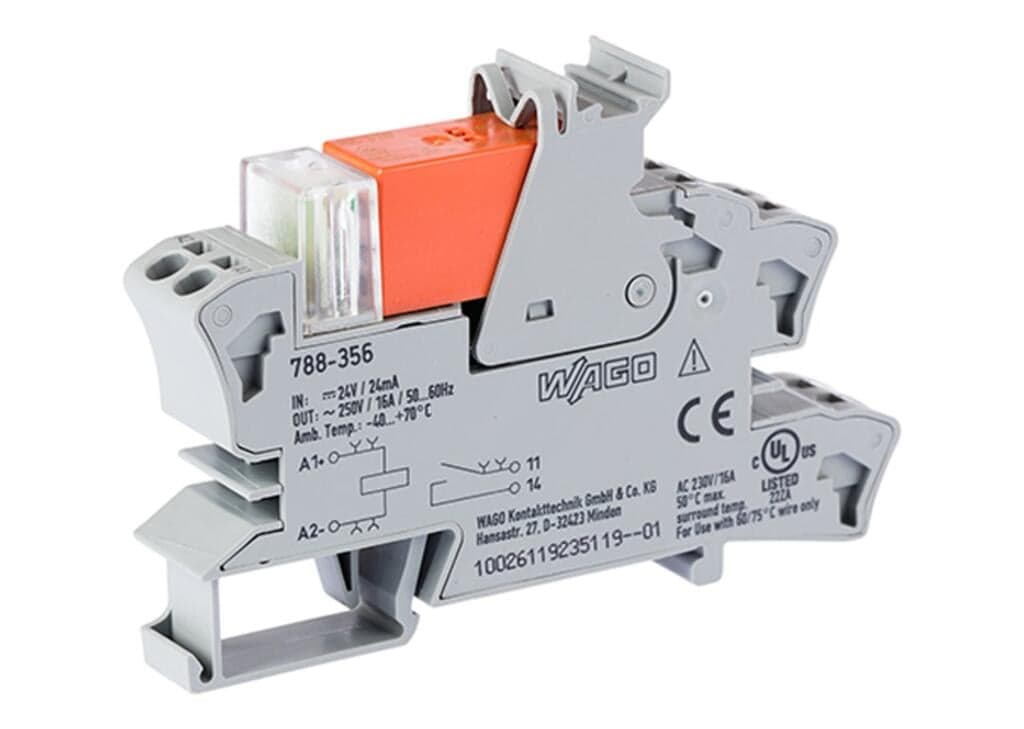

Product Model
788-356
Selling Points
- 1Reliable for lamp loads with 24 VDC and 16 A rating.
- 2Easy push-in CAGE CLAMP connection for quick setup.
- 3Robust safety features including 250 VDC rated voltage and 4 kV surge voltage.
- 4Compact design with 6 mm width and 94 mm depth for DIN-35 rail mounting.
- 5High electrical life with 50 x 10^3 switching operations and mechanical life of 5 x 10^6 operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. | Note | Reinforced insulation between coil and contacts |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 3 | Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 15?mm?/ 0.591?inches | Height | 86?mm?/ 3.386?inches |
Depth from upper-edge of DIN-rail | 54?mm?/ 2.126?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Fire load | 0.681MJ |
Weight | 46.8g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454540753 | Customs tariff number | 8536490075 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 7e591974-8dba-4ba8-8ca0-9dda0b95a819 |
SCIP notification number (Belgium) | ca5acbce-b99f-4cb3-83d0-0c4a3e2c04f2 | SCIP notification number (Bulgaria) | fd67ed12-c400-44d5-a4e6-2e42cfaf9d09 |
SCIP notification number (Czech Republic) | 73983201-3dbc-430d-8f75-315c355961a7 | SCIP notification number (Denmark) | e8d45790-4763-4997-8e87-511ac9ef67d0 |
SCIP notification number (Finland) | 998a844a-32cf-4082-b586-f3075cbb09dc | SCIP notification number (France) | d8ba4b8a-9ce5-4d9c-bf7d-f069843ba7a8 |
SCIP notification number (Germany) | c024b1eb-9e7e-4260-8c48-4156cab4e861 | SCIP notification number (Hungary) | 02a11653-1d32-4f04-a59f-7f06f0715e98 |
SCIP notification number (Italy) | 859dc1de-f7c8-47b9-91a0-918ed2f794f8 | SCIP notification number (Netherlands) | 3766f2ee-d2ce-43d7-8404-5a816fd80322 |
SCIP notification number (Poland) | c2f389e8-c589-4a09-b3ff-cc8b0798d4a5 | SCIP notification number (Romania) | 5b4d7c2c-d0eb-4aeb-bc3c-fa113239040f |
SCIP notification number (Sweden) | 1646e8de-423a-4ffc-83eb-1e2657ec6e0a | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | -15 … +20?% | Nominal input current at U<sub>N</sub> | 19?mA |
Number of make/switch-on contacts | 1 | Contact material (relay) | AgSnO2 |
Limiting continuous current | 16?A | Inrush current (resistive) max. | (AC) 80?A?/ 0.02?s;?(AC) 30?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?4000?VA;?DC (see load limit curve) |
Recommended minimum load | 12?V?/ 100?mA | Pull-in time (typ.) | 9ms |
Drop-out time (typ.) | 6ms | Bounce time (typ.) | 3ms |
Electrical life (NO; resistive load; 23?°C) | 50?x 103 switching operations | Mechanical life | 30?x 10? switching operations |
Status indicator | Red LED |
Specifications may be subject to change without notice
