Product Model

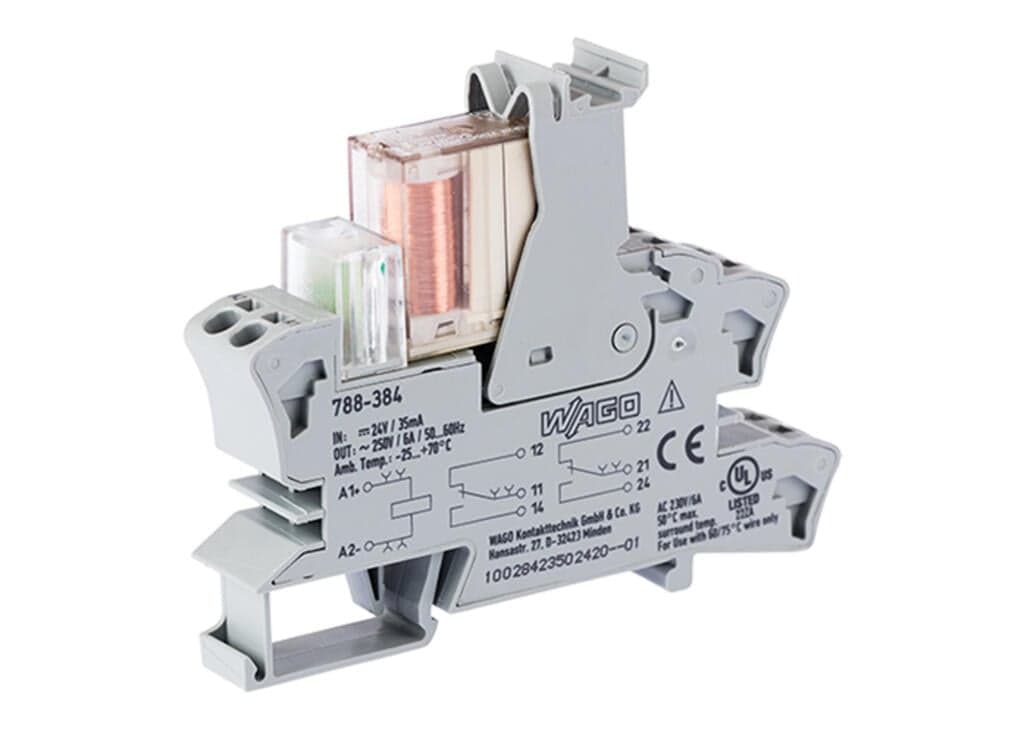

788-384
Selling Points
- 1Designed with 10 million switching operations, ensuring long-lasting performance.
- 2Handles 6A continuous current at 24V DC, suitable for various industrial applications.
- 3Measures 3.38 in H x 0.59 in W x 2.52 in D, perfect for DIN rail mounting.
- 4Includes a red status indicator for easy monitoring and 2 changeover contacts for reliable switching.
- 5Meets standards such as EN 61010-2-201, EN 61810-1, and UL 508 for enhanced safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Per EN 61810-3, it is only permitted to use 1 make contact/1 break contact for safety circuits (11-14 and 22-21 or 12-11 and 21-24).A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. | Note | Reinforced insulation between coil and contacts |
Rated voltage | 250V | Rated surge voltage | 6kV |
Pollution degree | 3 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1.5?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 3?kVrms |
B10d (AC 1) | 250 V; 6 A; 1 NO: 600,000 switching operations | B10d (15 AAC) | 250 V; 3 A; 1 NO: 180,000 switching operations |
B10d (DC 13) | 24 V; 3 A; 1 NO: 360,000 switching operations | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 15?mm?/ 0.591?inches | Height | 86?mm?/ 3.386?inches |
Depth from upper-edge of DIN-rail | 64?mm?/ 2.52?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.939MJ | Weight | 50.3g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Standards/specifications | EN 61010-2-201 |
WAGO Basic Relay | 788-902 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?(1)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143184175 | Customs tariff number | 8536490075 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | -15 … +10?% | Nominal input current at U<sub>N</sub> | 31?mA |
Number of changeover contacts | 2 | Contact material (relay) | AgNi |
Limiting continuous current | 6?A | Inrush current (resistive) max. | (AC) 14?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?1500?VA;?DC see load limit curve |
Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?3?A?/ DC?24?V | Recommended minimum load | 5?V?/ 10?mA |
Pull-in time (typ.) | 10ms | Drop-out time (typ.) | 4ms |
Electrical life (NO; resistive load; 23?°C) | 100?x 103 switching operations | Mechanical life | 10?x 10? switching operations |
Switching frequency with/without load (max.) | 6?min-1/ 300?min-1 | Mechanical force-guided operation | Type A |
Status indicator | Red LED |
Specifications may be subject to change without notice
