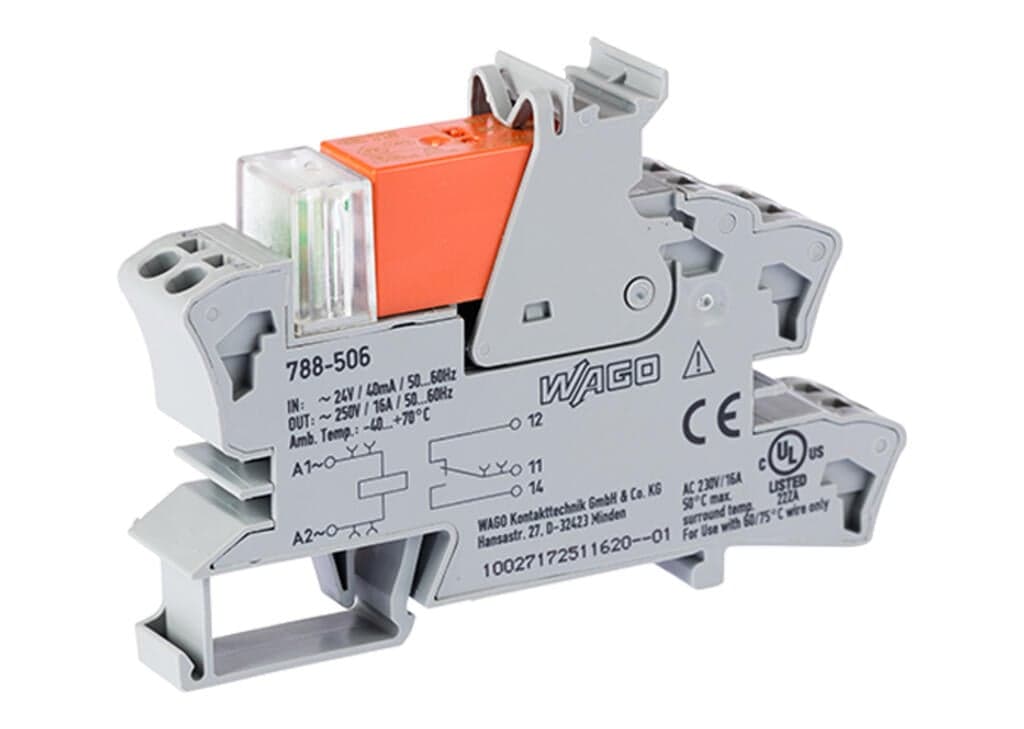

Product Model
788-506
Selling Points
- 1Designed with AgNi 90/10 contact material for long-lasting performance.
- 2Push-in Cage CLAMP connection simplifies conductor termination.
- 3Measures 86 x 54 x 15mm, perfect for DIN rail mounting.
- 4Red LED status indicator provides real-time monitoring.
- 5Suitable for industrial automation and control systems with 24V AC input voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. | Note | Reinforced insulation between coil and contacts |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 3 | Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 15?mm?/ 0.591?inches | Height | 86?mm?/ 3.386?inches |
Depth from upper-edge of DIN-rail | 54?mm?/ 2.126?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.673MJ | Weight | 46.4g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Standards/specifications | EN 61010-2-201 |
WAGO Basic Relay | 788-170 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454424121 | Customs tariff number | 8536490075 |
CAS-No. | 80-05-7 | REACH Candidate List Substance | 4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 909324ad-5e3b-4d39-ad4f-2fbc4d58bde5 |
SCIP notification number (Belgium) | 2c9fa0df-83b1-4815-91a2-7420bb644f3d | SCIP notification number (Bulgaria) | d4bc7641-1e5c-454e-977e-43e41bda5d2b |
SCIP notification number (Czech Republic) | 185a21da-bc74-4fab-9583-08d99a980130 | SCIP notification number (Denmark) | 5d95b346-802a-4648-9638-9a67776bd077 |
SCIP notification number (Finland) | 6307942c-93c4-4d51-9c5d-112763aa753c | SCIP notification number (France) | 101db39d-73f5-4185-bf71-1dfa3c602d18 |
SCIP notification number (Germany) | 0c83fb69-743e-42a6-a8b0-58d28f4344c9 | SCIP notification number (Hungary) | 330a7887-84f7-4a37-aeca-9a0d031f6c07 |
SCIP notification number (Italy) | d5373a56-298a-4009-a1f0-ab3127f4bdb0 | SCIP notification number (Netherlands) | 45ab6da9-0832-49bd-9e11-62137072e4c0 |
SCIP notification number (Poland) | e660e88e-4666-4e59-a612-4a6409aa3aca | SCIP notification number (Romania) | 1249d728-d991-4cbb-90d2-afb832e9a5cd |
SCIP notification number (Sweden) | 4cc42db8-2306-423c-8bfe-e1ab465fd20a | Nominal input voltage U<sub>N</sub> | AC?24?V |
Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 34?mA |
Number of changeover contacts | 1 | Contact material (relay) | AgNi 90/10 |
Limiting continuous current | 16?A | Inrush current (resistive) max. | (AC) 30?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?4000?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?6?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 12?V?/ 10?mA |
Pull-in time (typ.) | 10ms | Drop-out time (typ.) | 35ms |
Bounce time (typ.) | 6ms | Electrical life (NO; resistive load; 23?°C) | 30?x 103 switching operations |
Mechanical life | 5?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 600?min-1 |
Status indicator | Red LED |
