Product Model

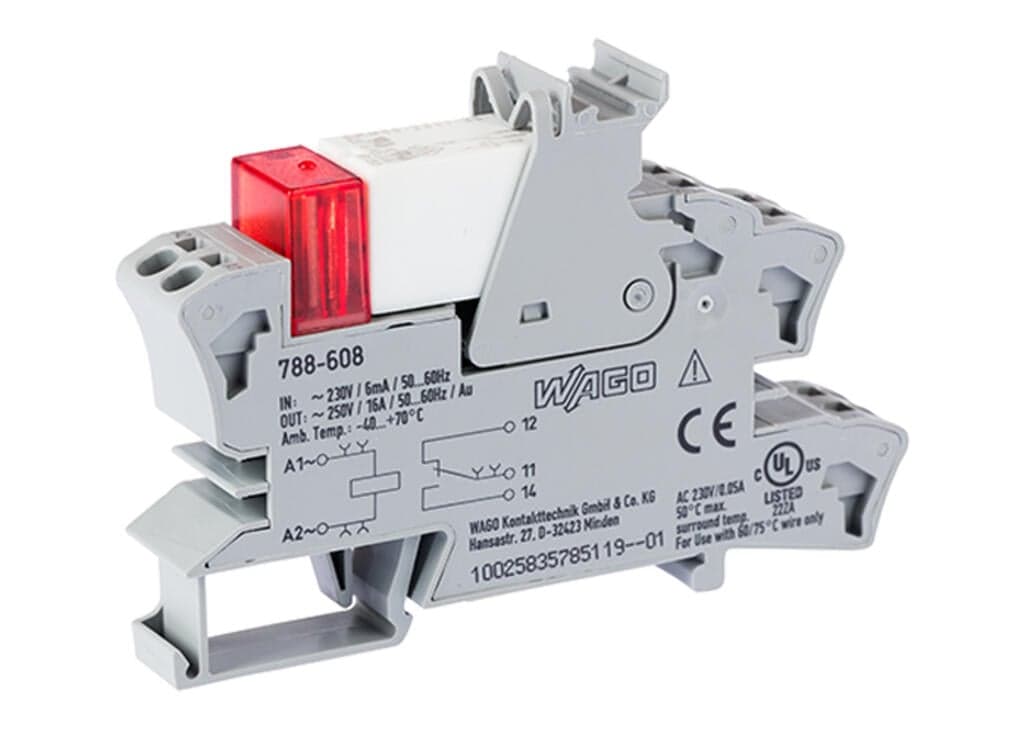

788-608
Selling Points
- 1High Reliability: Designed with reinforced insulation between coil and contacts for enhanced reliability.
- 2Compact Design: Suitable for DIN-35 rail mounting, offering a compact footprint of 15 mm width and 86 mm depth.
- 3Robust Insulation: Ensures safe operation with a separator plate required for voltages greater than 250 V between adjacent relays.
- 4Status Indicator: Equipped with a lighted status indicator for easy monitoring of relay status.
- 5Versatile Applications: Compatible with a wide range of industrial applications, including those requiring high current switching up to 16 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. | Note | Reinforced insulation between coil and contacts |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 3 | Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 15?mm?/ 0.591?inches | Height | 86?mm?/ 3.386?inches |
Depth from upper-edge of DIN-rail | 54?mm?/ 2.126?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.877MJ | Weight | 47.8g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Standards/specifications | EN 61010-2-201 |
WAGO Basic Relay | 788-179 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143998055 | Customs tariff number | 8536490080 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 3694ca5b-67a6-4ebe-8f3c-414eda20fab5 | SCIP notification number (Belgium) | 555a9059-b58d-42cd-9788-ff1e3dcddeb6 |
SCIP notification number (Bulgaria) | 0ac4afdb-60a6-4bf3-8c29-71aa75ef352b | SCIP notification number (Czech Republic) | 214597cc-7c59-45ea-9f2d-d7af98952dcd |
SCIP notification number (Denmark) | d8b08b82-e6f0-4bf4-960a-e4bcb748e26a | SCIP notification number (Finland) | 63baaebc-312d-4abe-9ac5-66e2601788bd |
SCIP notification number (France) | c99520af-ad87-4921-aed9-ecfc6ab1d0c4 | SCIP notification number (Germany) | eee2b7b4-7f80-43c9-8590-ac2fdde0c662 |
SCIP notification number (Hungary) | 63b4f2b2-6cd6-4744-9c85-e4c5c917aabf | SCIP notification number (Italy) | 1046d58c-c060-44b4-94c4-d5d289f08922 |
SCIP notification number (Netherlands) | 54f28c8b-006b-4d9a-a9b9-115c62c5fdca | SCIP notification number (Poland) | 3ccd9e55-19c1-4aa0-8e25-99071c6889c3 |
SCIP notification number (Romania) | 50426f91-9aff-4b7b-8c44-73776e0778b9 | SCIP notification number (Sweden) | 2bd076d7-174e-41c5-9079-3b2dda0c9e81 |
Nominal input voltage U<sub>N</sub> | AC?230?V | Input voltage range | ±10?% |
Nominal input current at U<sub>N</sub> | 5?mA | Number of changeover contacts | 1 |
Contact material (relay) | AgNi + Au | Limiting continuous current | 16?A |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?4000?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?6?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 5?V?/ 2?mA?/ 50?mW |
Pull-in time (typ.) | 7ms | Drop-out time (typ.) | 3ms |
Bounce time (typ.) | 6ms | Electrical life (NO; resistive load; 23?°C) | 70?x 103 switching operations |
Mechanical life | 30?x 10? switching operations | Switching frequency with/without load (max.) | 10 min-1/ 1200 min-1 |
Status indicator | Red LED |
Specifications may be subject to change without notice
