Product Model

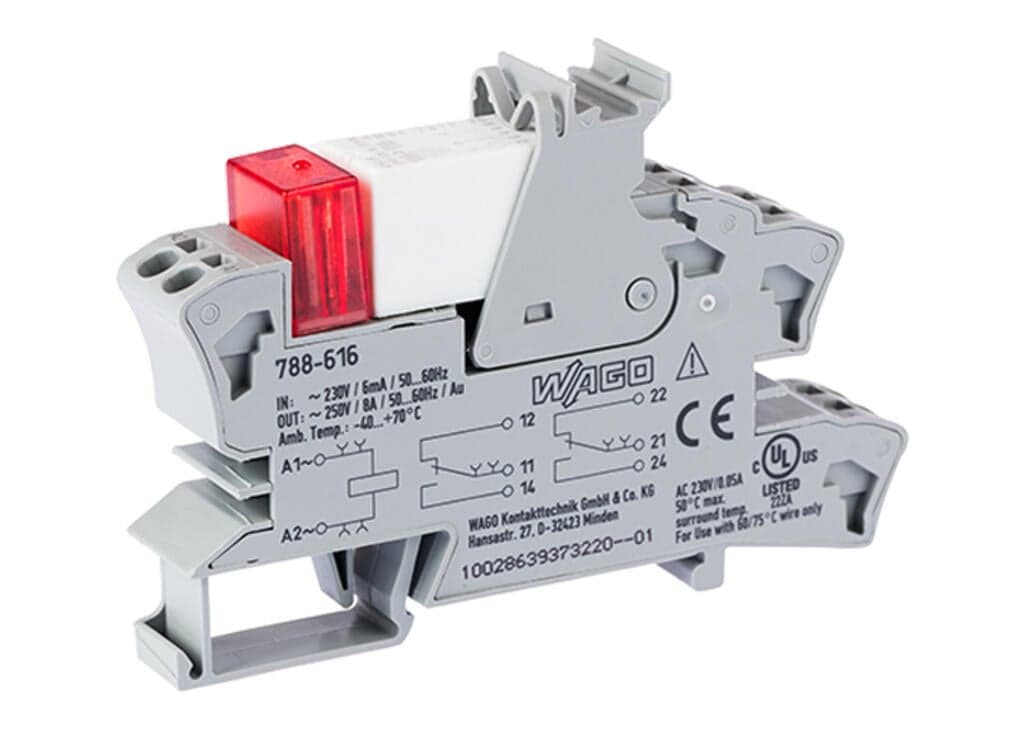

788-616
Selling Points
- 1Compact design with a width of 15 mm.
- 2Reliable with 30 x 10^6 switching operations.
- 3Easy connection using Push-in CAGE CLAMP technology.
- 4High current capacity of 8 A continuous current.
- 5Includes a red status indicator for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. | Note | Reinforced insulation between coil and contacts |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 3 | Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 2.5?kVrms |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 15?mm?/ 0.591?inches |
Height | 86?mm?/ 3.386?inches | Depth from upper-edge of DIN-rail | 54?mm?/ 2.126?inches |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.843MJ |
Weight | 45.5g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Standards/specifications | EN 61010-2-201 | WAGO Basic Relay | 788-181 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454484804 |
Customs tariff number | 8536490080 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | bfc78d36-341b-4994-8bed-6d06407fb230 |
SCIP notification number (Belgium) | 88178c2e-c698-4af1-90fb-63cc9fe3f887 | SCIP notification number (Bulgaria) | ad587133-d792-4fba-aaa0-bd131c5590c4 |
SCIP notification number (Czech Republic) | 5a63a325-14b9-4a2b-838d-a21bde620399 | SCIP notification number (Denmark) | 1f2dfa1f-e9fd-4cab-a5bd-5e7a4e0c98f8 |
SCIP notification number (Finland) | 98a7faef-09e0-4019-93fb-1be5cee850f7 | SCIP notification number (France) | 83fdbe64-8ff7-4c68-93ac-4c2e1506072d |
SCIP notification number (Germany) | c0cdad25-4481-48fa-8907-42d8151e903d | SCIP notification number (Hungary) | d7fd6b1d-b3a1-4a00-9feb-3ffe54adb73c |
SCIP notification number (Italy) | 4c6bc921-2d10-4107-bdb5-b820ac523822 | SCIP notification number (Netherlands) | 3e5988b1-bc33-40f6-9832-2b78347052c7 |
SCIP notification number (Poland) | a7a12ae5-d9d0-495b-907b-e3ab130a3a5b | SCIP notification number (Romania) | 45902eec-11c3-4ba9-bb29-bad7bcb8a8e8 |
SCIP notification number (Sweden) | d77c0d90-a2c6-4f7d-9afd-df5943db75be | Nominal input voltage U<sub>N</sub> | AC?230?V |
Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 5?mA |
Number of changeover contacts | 2 | Contact material (relay) | AgNi + Au |
Limiting continuous current | 8?A | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?2000?VA;?DC (see load limit curve) | Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V |
Recommended minimum load | 5?V?/ 2?mA?/ 50?mW | Pull-in time (typ.) | 7ms |
Drop-out time (typ.) | 3ms | Bounce time (typ.) | 6ms |
Electrical life (NO; resistive load; 23?°C) | 100?x 103 switching operations | Mechanical life | 30?x 10? switching operations |
Switching frequency with/without load (max.) | 10 min-1/ 1200 min-1 | Status indicator | Red LED |
Specifications may be subject to change without notice
