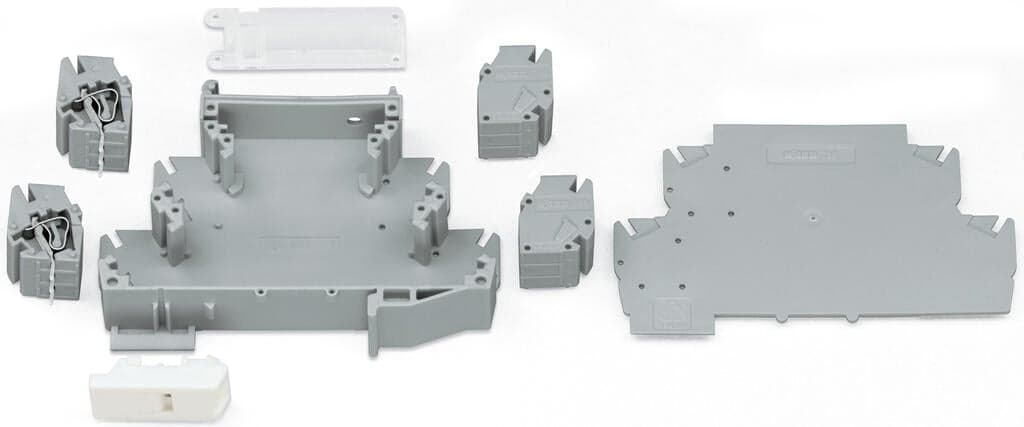

Product Model
789-127
Selling Points
- 1Compact Design: Designed for DIN rail mounting with a single deck/level.
- 2High Current Capacity: Handles 2.5 mm² connections.
- 3Durable Construction: Made from high-quality gray material.
- 4Easy Installation: Utilizes CAGE CLAMP spring connections.
- 5Universal Compatibility: Compatible with various PCB thicknesses (up to 1.5 mm in level 1).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of poles | 3 | Connections (number) | 3 |
Housing design | DIN-rail-mount enclosure | Suitable | for 789-120 |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.072MJ |
Weight | 4.3g | Processing temperature | -25 … +70?°C |
eCl@ss 10.0 | 27-18-27-02 | eCl@ss 9.0 | 27-18-27-02 |
ETIM 9.0 | EC001031 | ETIM 8.0 | EC001031 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918610537 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
