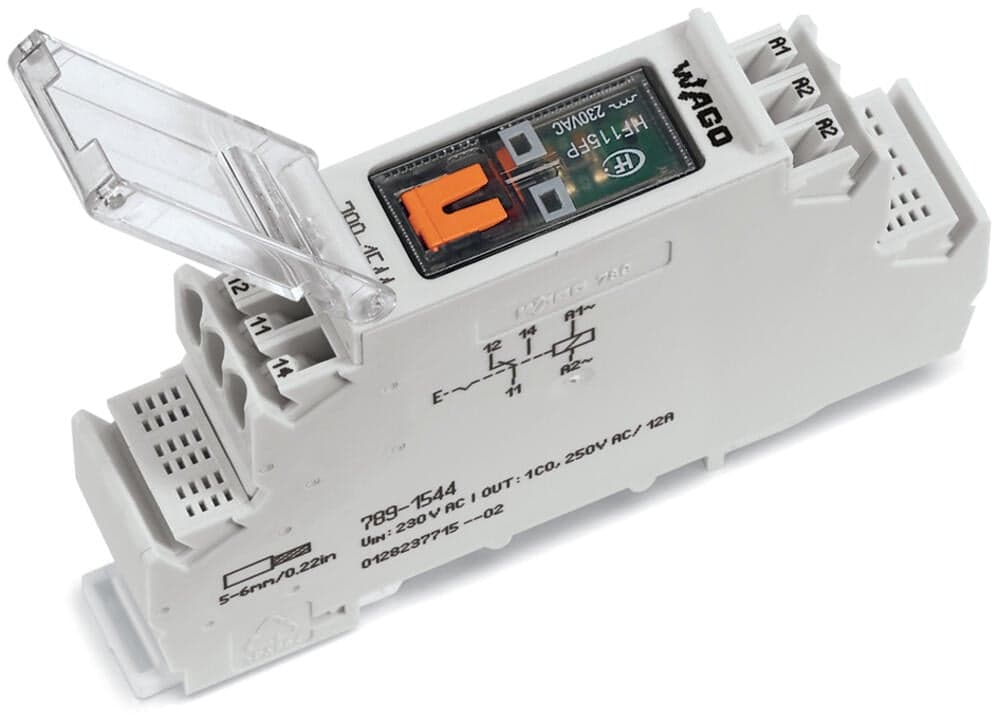

Product Model
789-1544
Selling Points
- 1High Reliability: Designed with a nominal input voltage of 230 VAC and rated for 250 V, ensuring stable operation in diverse environments.
- 2Efficient Operation: Utilizes CAGE CLAMP connections for easy and secure wiring, reducing installation time and increasing efficiency.
- 3Robust Design: Equipped with a silver-nickel (AgNi) contact material, providing long-lasting performance and high dielectric strength.
- 4Durable Construction: Rated for 5 million switching operations, ensuring a long lifespan in demanding automation applications.
- 5Easy Installation: Compatible with DIN-35 rail mounting, making it simple to integrate into existing automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3.5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Protection type | IP20 | Connection technology | CAGE CLAMP? |
Solid conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 17.5?mm?/ 0.689?inches |
Height | 90?mm?/ 3.543?inches | Depth from upper-edge of DIN-rail | 55?mm?/ 2.165?inches |
Housing design | DIN-rail-mount enclosure | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Fire load | 0.755MJ |
Weight | 50.2g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Standards/specifications | EN 60664-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-23-09 | eCl@ss 9.0 | 27-14-23-09 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821386780 | Customs tariff number | 8536490075 |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(c)-I |
Nominal input voltage U<sub>N</sub> | AC?230?V | Input voltage range | ±10?% |
Nominal input current at U<sub>N</sub> | 4?mA | Number of changeover contacts | 1 |
Contact material (relay) | AgNi | Limiting continuous current | 12?A |
Inrush current (resistive) max. | (AC) 30?A?/ 0.02?s;?(AC) 24?A?/ 4?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?3000?VA;?DC (see load limit curve) | Recommended minimum load | 12?V?/ 10?mA |
Pull-in time (typ.) | 15ms | Drop-out time (typ.) | 8ms |
Bounce time (typ.) | 6ms | Mechanical life | 5?x 10? switching operations |
Status indicator | Red LED |
Specifications may be subject to change without notice
