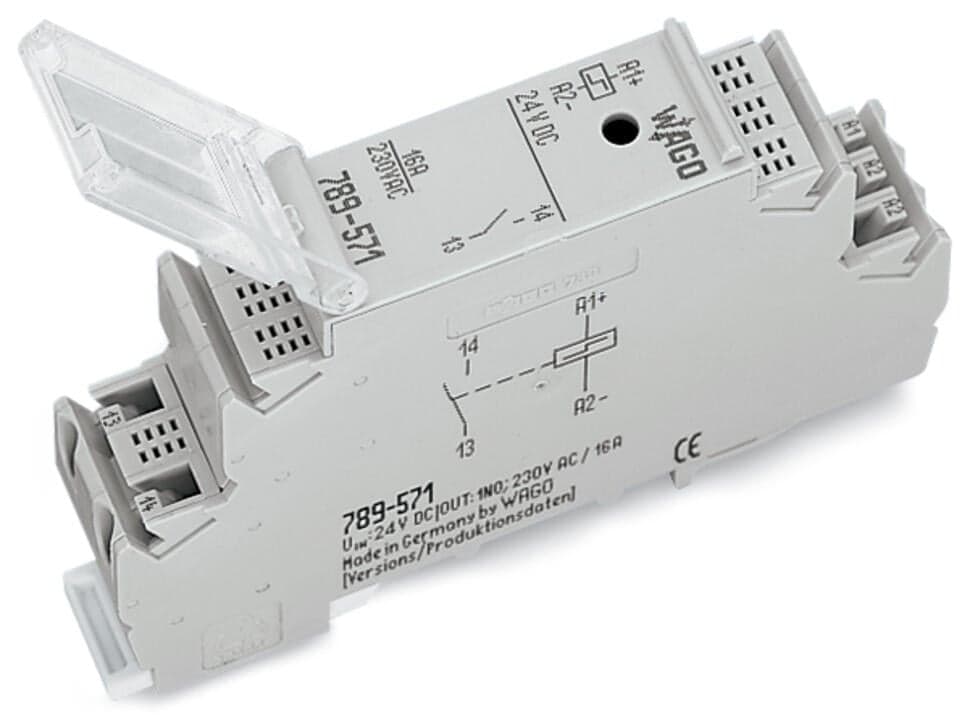

Product Model
789-571
Selling Points
- 1High-Reliability Automation Solution: Designed for continuous operation with a 16A current rating.
- 2Compact Design: Measures 3.54 in H x 0.68 in W x 2.16 in D, perfect for DIN rail mounting.
- 3Secure Wiring: Utilizes cage clamp connections for secure and efficient wiring.
- 4Bistable/Latching Mechanism: Ensures reliable switching with a single-pole (1P) configuration.
- 5Comprehensive Protection: Features an IP20 enclosure rating for protection against solid particles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Protection type | IP20 | Connection technology | CAGE CLAMP? |
Solid conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 17.5?mm?/ 0.689?inches |
Height | 90?mm?/ 3.543?inches | Depth from upper-edge of DIN-rail | 55?mm?/ 2.165?inches |
Housing design | DIN-rail-mount enclosure | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.742MJ | Weight | 58.8g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50?°C | Standards/specifications | EN 60664-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-23-09 |
eCl@ss 9.0 | 27-14-23-09 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454572655 |
Customs tariff number | 8536490075 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 47a23f63-5d1b-4163-aaae-17a6ad486e0e |
SCIP notification number (Belgium) | 15d3a70e-e176-43f3-891b-f071bf91bf2a | SCIP notification number (Bulgaria) | f5f7e129-7373-42ff-a5ad-b6f347fa44d2 |
SCIP notification number (Czech Republic) | ddfbdc03-d9de-4eb3-8b39-865f36d28bb0 | SCIP notification number (Denmark) | db3228ba-af73-4c58-8239-701c1458bf3c |
SCIP notification number (Finland) | 80e43c22-17db-4045-a4e8-dc706d14da5a | SCIP notification number (France) | fbb97914-aa41-41e0-807a-3ed624091a66 |
SCIP notification number (Germany) | 4a18058b-0969-4a85-9c49-247dfa269635 | SCIP notification number (Hungary) | 5d426e4b-1714-4530-acf5-625acc3d78d0 |
SCIP notification number (Italy) | ff18a9dc-2c0f-43fe-aec5-e2b12c4e512d | SCIP notification number (Netherlands) | a0be3dd7-9ec6-43f0-a4ce-1d4e2af0a8e2 |
SCIP notification number (Poland) | b31516bb-3f11-468c-8510-2c0e271245fb | SCIP notification number (Romania) | c9ab27e8-3f63-46cb-8df2-f5f70e4c2a01 |
SCIP notification number (Sweden) | 39675669-d41a-422e-b84b-8f3a9d120ba6 | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | -15 … +10?% | Nominal input current at U<sub>N</sub> | 82?mA |
Coil control | Pulse mode | Minimum pulse length (control input) | 40ms |
Minimum break time | 180ms | Number of make/switch-on contacts | 1 |
Contact material (relay) | AgSnO2 | Limiting continuous current | 16?A |
Inrush current (resistive) max. | (AC) 50?A?/ 0.02?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?4000?VA | Recommended minimum load | 10?V?/ 10?mA |
Electrical life (NO; resistive load; 23?°C) | 50?x 103 switching operations | Mechanical life | 1?x 10? switching operations |
Switching frequency with/without load (max.) | 6?min-1/ 240?min-1 | Circuit protection | Circuit breaker: 16?A (max.); Tripping characteristic: B |
Status indicator | Red LED |
