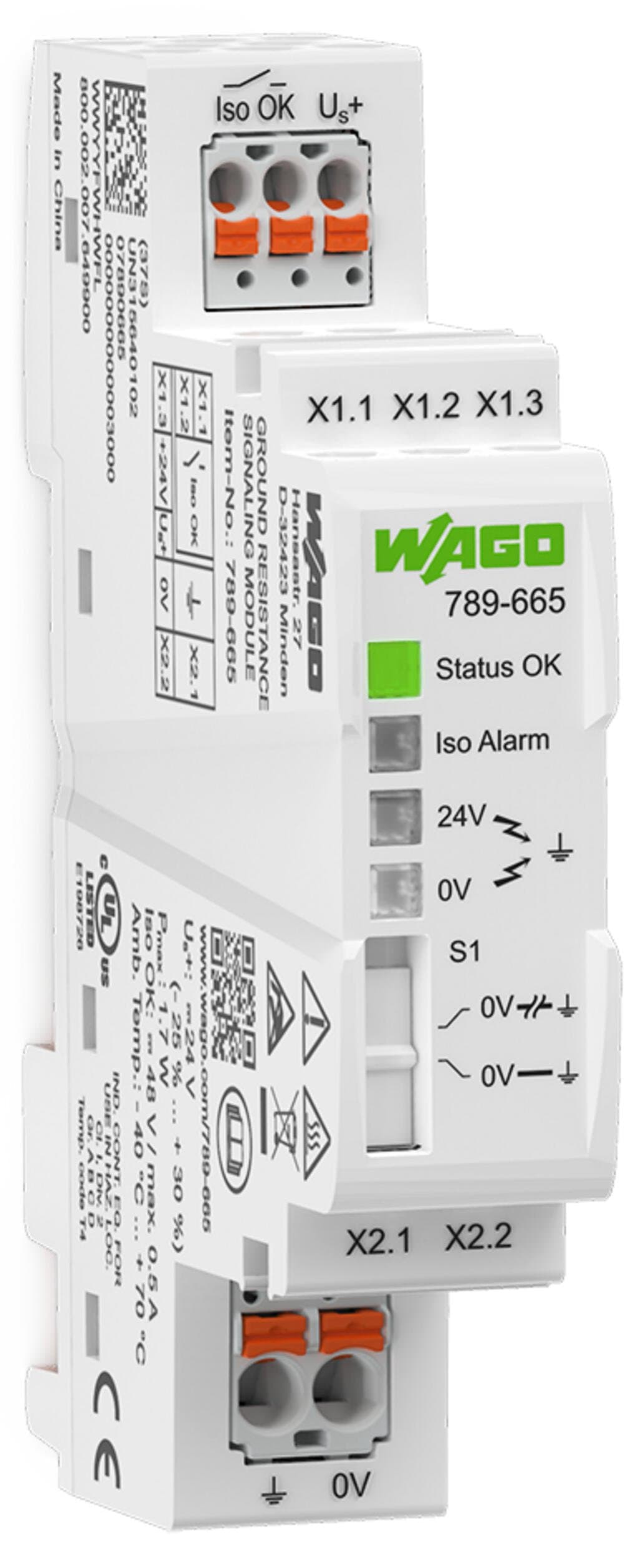

Product Model
789-665
Selling Points
- 1Detects ground faults with a digital output signal.
- 2Measures 18 mm in width, making it suitable for DIN-35 rail mounting.
- 3Operates at 24 VDC with a current consumption of ≤ 40 mA.
- 4Compliant with RoHS and CE EMC immunity to interference standards.
- 5Offers an MTBF of > 600,000 hours, ensuring long-term operation without failure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal supply voltage U<sub>S</sub> | DC?24?V (SELV) | Supply voltage range (DC) | DC?18 … 31.2?V |
Current consumption at nominal supply voltage | ≤?40?mA | Power loss P<sub>l</sub> | ≤?1.7?W |
Current at ground fault (24 VDC) max. | 56mA | Operation status indicator | 1 x LED “Status OK” (green) |
Signaling | 1 x LED “Iso Alarm” (red) | Switching voltage (max.) | 48 VDC (SELV) |
Continuous current (max.) | 500?mA (for general use) | Number of Iso OK contacts connected in series (max.) | 25 (Limit value type: 1); 32 (Limit value type: 2 and 3) (per IEC 61131) |
Function | 1 make contact (NO); closed with applied power supply and insulation resistance > limit value | Backup fusing (required) | The fuse must be placed in the output circuit of the power supply. The fuse must be adapted to the power supply used and must trip safely in case of a short circuit. The module is designed for use with a 10 A (max. ) fuse or with a 10 ADC (max.) circuit breaker (characteristic B or C). |
Pollution degree | 2 | Overvoltage category | II |
Protection type | IP20 | Test voltage (supply/Iso OK contact) | 1.5 kVAC; 50 … 60 Hz; 1 min |
MTBF | > 600,000 h (per MIL-HDBK-217F2) | Response value for alarm at nominal voltage | 4 kΩ (at US= 24 V; for other USvalues, see diagram for signaling threshold) |
Response time | 10s | Hysteresis (typ.) | 1kΩ |
Connection type 1 | X1.x | Connection technology | Push-in CAGE CLAMP? |
WAGO connector | picoMAX?eCOM | Solid conductor | 0.25 … 1.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection type 2 | X2.x | Connection technology 2 | Push-in CAGE CLAMP? |
WAGO connector 2 | picoMAX?eCOM | Solid conductor 2 | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor 2 | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor; with insulated ferrule 2 | 0.25 … 1.5?mm2 |
Fine-stranded conductor; with uninsulated ferrule 2 | 0.25 … 2.5?mm2 | Strip length 2 | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 18?mm?/ 0.71?inches | Height | 90?mm?/ 3.54?inches |
Depth from upper-edge of DIN-rail | 51?mm?/ 2.01?inches | Mounting type | DIN-35 rail |
Weight | 47g | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Temperature range of connection cable | ≥ (Tambient+ 10 K) |
Relative humidity | 5 … 95?% (non-condensing) | Operating altitude (max.) | 3000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-3; EN 61000-6-4 | Standards/specifications | UL 61010-2-201 |
ETIM 9.0 | EC003596 | ETIM 8.0 | EC003596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4066966120820 | Customs tariff number | 85365005000 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 1,3,5-Tris(oxiran-2-ylmethyl)-1,3,5-triazinane-2,4,6-trione (TGIC) |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 7e2beec6-e444-4533-91ed-ca9c06e08018 | SCIP notification number (Belgium) | 3d57bc60-34df-4908-9ee3-46195d31d01a |
SCIP notification number (Bulgaria) | 5e35ef1c-882c-48b4-8b73-1d7ec4268ba3 | SCIP notification number (Czech Republic) | b6cda593-ddd9-42ff-b4e7-d8fcd1e40d5c |
SCIP notification number (Denmark) | a3c41961-0b22-4291-9060-47097b5f95ce | SCIP notification number (Finland) | 91651202-849e-4dc4-bc7a-b390c932d8de |
SCIP notification number (France) | d9de80e6-426d-467f-b505-f4cca3e47f38 | SCIP notification number (Germany) | 70fe8401-9bb3-4bf6-9b1e-907872456ab1 |
SCIP notification number (Hungary) | 8e69327f-46d3-4d3e-937a-cc4734bd95c3 | SCIP notification number (Italy) | d4d1cefc-62b0-4092-9838-e72a05cfb2df |
SCIP notification number (Netherlands) | 2f63a4bb-7d52-4087-9cdb-85d03b2defa7 | SCIP notification number (Poland) | 403f29a9-bab2-4cc7-a1fa-13daa7af1f17 |
SCIP notification number (Romania) | bdb7e5dd-9b1d-4ca5-b22f-3b058c47d4f7 | SCIP notification number (Sweden) | 97170ea2-76b4-4ba8-9f9a-a9e56636c480 |
Specifications may be subject to change without notice
