Product Model
792-802
Selling Points

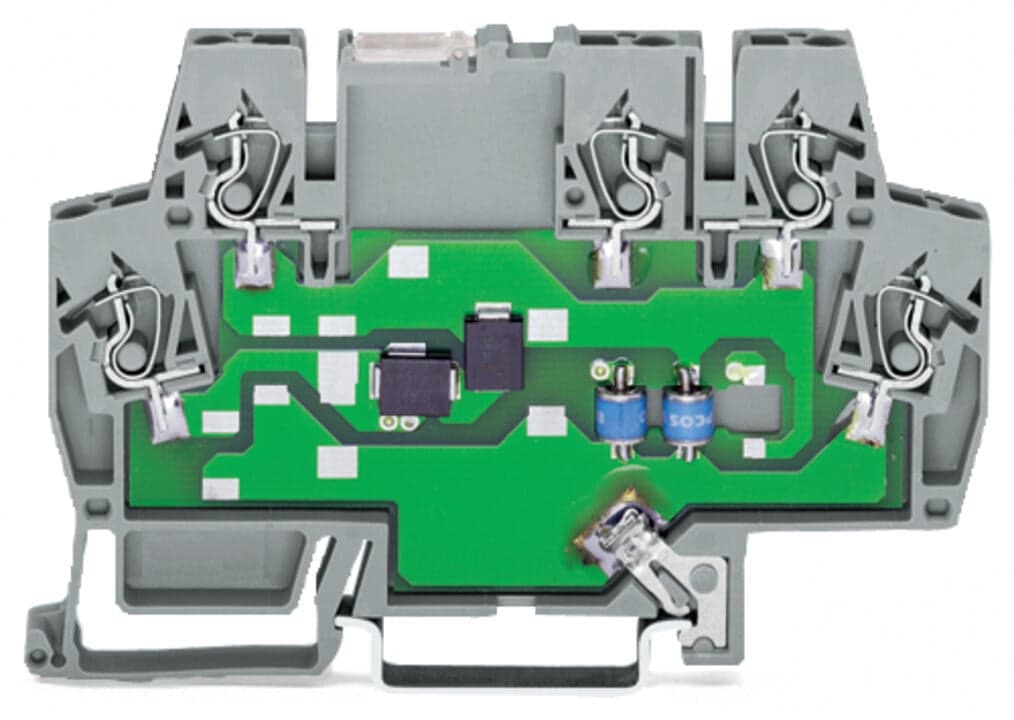

- 1Surge Protection for IT Systems: Safeguard your IT systems against overvoltage with the WAGO 792-802 surge suppression module.
- 2Slim, Space-Saving Design: Compact 6mm width ensures easy integration into DIN-35 rail-mounted terminal blocks.
- 3High Operational Reliability: Ensure system uptime with high operational reliability and multi-stage surge arresters.
- 4Cost-Effective Protection: Prevent expensive downtime by controlling operational costs with effective overvoltage protection.
- 5Versatile Wire Accommodation: Supports wire sizes from 0.08mm² to 2.5mm² or #28AWG to #14AWG for versatile connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The coordination characteristics of the surge arrester provide information about its discharge capacity and protection capability. | Nominal operating voltage | DC?24?V |
Maximum continuous voltage | AC?23?V?/ DC?33?V | Nominal current | 10A |
Nominal discharge current (8/20?μs) (line) | 300?A | Nominal discharge current (8/20 μs) (total) | 5?kA |
Protection level (line/line) (cat. C2 at I<sub>N</sub>) | ≤?50?V | Protection level (line/protected ground) (cat. C2 at I<sub>N</sub>) | ≤?750?V |
Protection level (line/line) (cat. C3 at I<sub>N</sub>) | ≤?45?V | Protection level (line/protected ground) (cat. C3 at I<sub>N</sub>) | ≤?650?V |
Limit frequency (line/line) | 7MHz | Protection type | IP00; IP20 with end and intermediate plate |
Connections (number) | 5 | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91 mm / 3.58 inches | Depth from upper-edge of DIN-rail | 56 mm / 2.2 inches |
Mounting type | DIN-35 rail | Weight | 37g |
Ambient temperature (operation) | -40 … +80 °C | Ambient temperature (storage) | -40 … +80 °C |
Standards/specifications | IEC 61643-21 | Product Group | 21 (Special Products Electronic) |
eCl@ss 10.0 | 27-13-08-05 | eCl@ss 9.0 | 27-13-08-05 |
ETIM 9.0 | EC000943 | ETIM 8.0 | EC000943 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4017332780759 | Customs tariff number | 8536308000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
