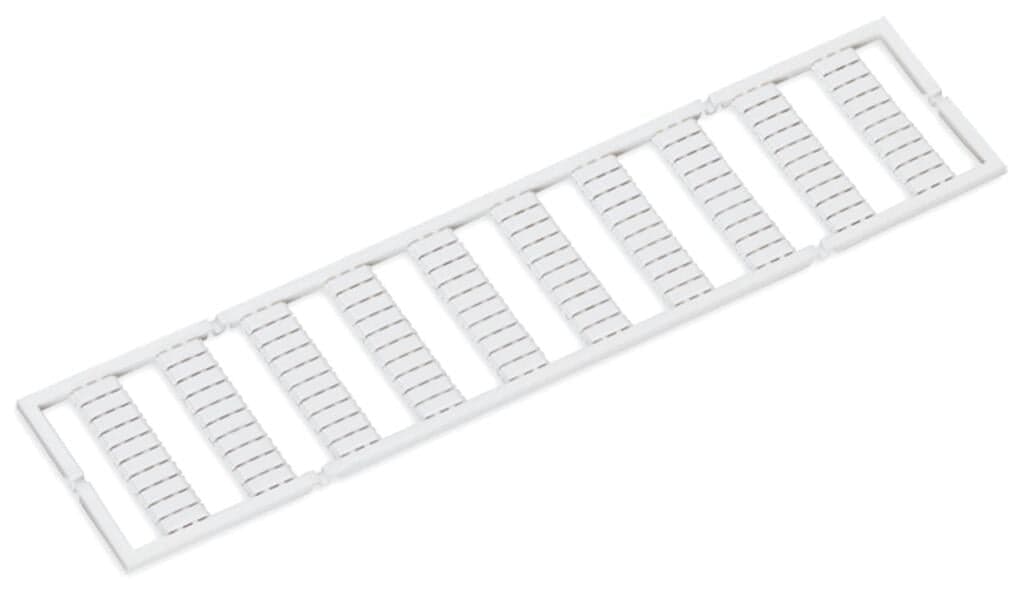

Product Model
793-4577
Selling Points
- 1The WAGO 793-4577 features black symbols printed on white markers for clear visibility.
- 2Designed to stretch between 4 to 4.2 mm, ensuring flexibility in various terminal block widths.
- 3Perfect for horizontal marking applications, providing precise and consistent markings.
- 4Constructed with high-quality materials, ensuring long-lasting performance in industrial environments.
- 5Meets EN 60998-12004 and EN 60068-2-52010 standards for UV resistance and smear resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Thermal transfer | Marking | N |
Marking (number) | 100 | Marking direction | Horizontal marking |
Marking color | black | Marking type | Symbol |
Marking differentiation | Same symbols per strip | Delivery form | Marker card |
Delivery form configuration | 10 strips with 10 markers per card | Flammability class per UL94 | V2 |
Marker/strip width | 4 … 4.2?mm | Marker width | 4mm |
Smear resistance | EN 60998-1:2004 | Color | white |
UV resistance | EN 60068-2-5:2010 Procedure B | Halogen-free | Yes |
Weight | 7.2g | Fire load | 0.215MJ |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4044918852517 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
