Product Model
805-302/200-604
Selling Points
- 1The WAGO 805-302/200-604 terminal block ensures secure and maintenance-free connections in demanding environments.
- 2Designed to meet high standards of performance and safety, this terminal block is perfect for industrial automation and control systems.
- 3Featuring a push-button actuation type and push-in CAGE CLAMP, installation is quick and effortless.
- 4Meets RoHS compliance standards, ensuring environmental sustainability.
- 5Compatible with various industrial applications, making it a versatile choice for engineers and technicians.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Variants: | Other pole numbers |
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 8.5?mm?/ 0.335?inches |
Height | 12.7?mm?/ 0.5?inches | Height from the surface | 10.5?mm?/ 0.413?inches |
Depth | 13.6?mm?/ 0.535?inches | Solder pin length | 2.2mm |
Solder pin dimensions | 0.5 x 0.75?mm | PCB contact | THR |
Solder pin arrangement | over the entire terminal strip (staggered) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | IIIa | Insulation material (main housing) | Polyamide (PA46) |
Flammability class per UL94 | V2 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.047MJ | Weight | 1.4g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +105?°C |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 580?(145)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4050821403746 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 200V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 320V |

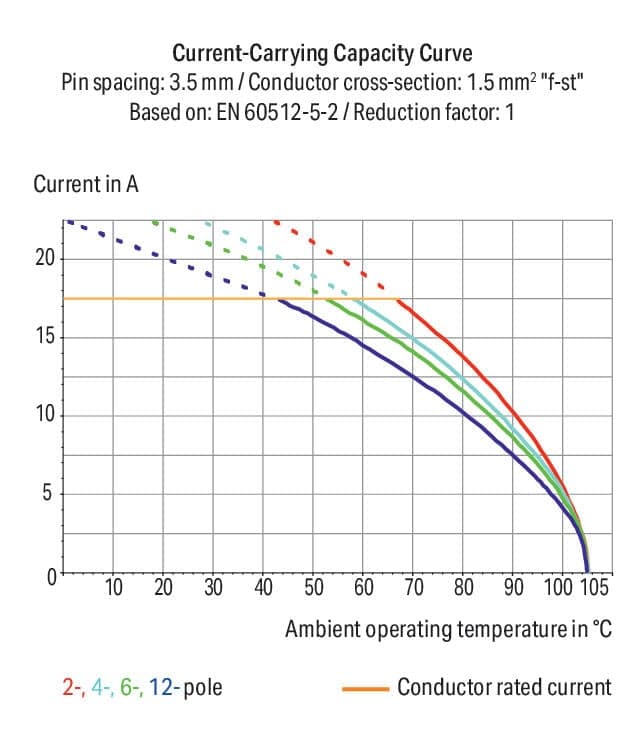

Rated surge voltage (II/2) | 4kV | Rated current | 17.5A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 150V | Rated current UL (Use Group C) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Solid conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1?mm2 |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Conductor connection direction to PCB | 0° |
Number of poles | 2 |
Specifications may be subject to change without notice
