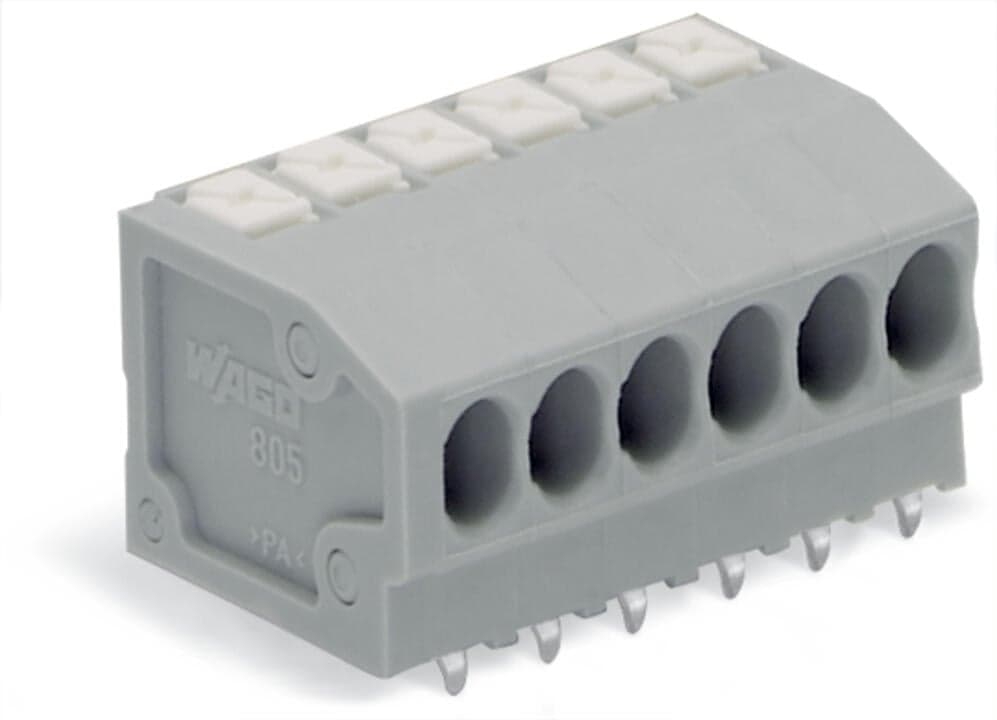

Product Model
805-355
Selling Points
- 1Tool-free operation for easy termination and removal of fine-stranded conductors.
- 2Securely connects solid and ferruled conductors with minimal force.
- 3Enables custom terminal strips to be commoned and marked at the factory, reducing routing complexity.
- 4Supports up to 17.5 A of current, suitable for various industrial applications.
- 5Meets IEC/EN 60664-1 and UL 1059 standards for overvoltage protection and electrical safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 5 |
Total number of potentials | 5 | Number of connection types | 1 |
Number of levels | 1 | Number of test slots | 0 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 19?mm?/ 0.748?inches |
Height | 13.7?mm?/ 0.539?inches | Height from the surface | 10.5?mm?/ 0.413?inches |
Depth | 13.6?mm?/ 0.535?inches | Solder pin length | 3.2mm |
Solder pin dimensions | 0.5 x 0.75?mm | Drilled hole diameter with tolerance | 1.1(+0.1)mm |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.049MJ |
Weight | 2.5g | Limit temperature range | -60 … +105?°C |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 260?(65)?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143388573 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 150V |
Rated current UL (Use Group C) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Solid conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1?mm2 | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Conductor connection direction to PCB | 0° | Number of poles | 5 |
