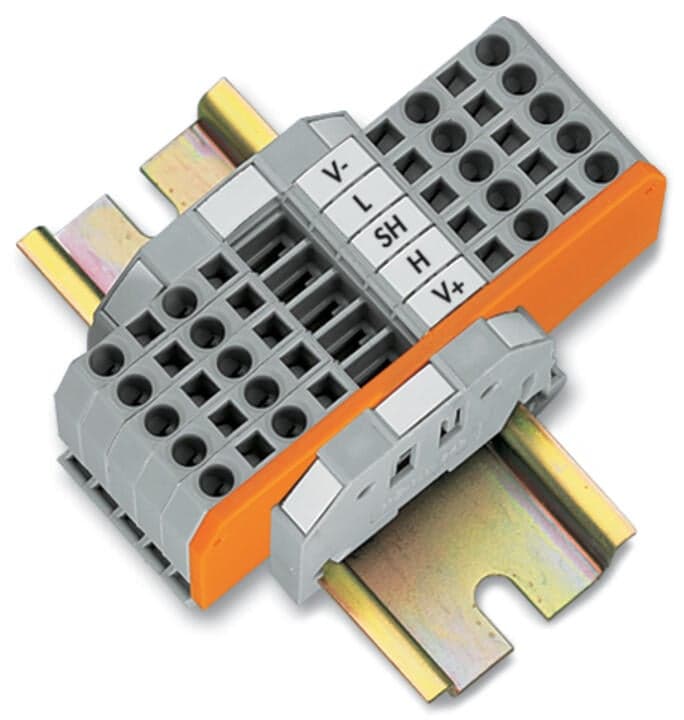

Product Model
810-901/000-001
Selling Points
- 1Provides secure and maintenance-free connections with 2 trunk cables (input, output) and 2 drop cables.
- 2Ideal for machinery, building automation, and process control to enhance system performance and reliability.
- 3Meets RoHS compliance standards for environmental sustainability.
- 4Constructed with solid conductors (0.08 2.5 mm / 28 12 AWG) for robust performance.
- 5Compact dimensions (53.5 mm width, 28 mm height from DIN-35 rail) for straightforward integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Width | 53.5?mm?/ 2.106?inches |
Height from upper-edge of DIN-rail | 28?mm?/ 1.102?inches | Depth | 75?mm?/ 2.953?inches |
Fire load | 1.056MJ | Weight | 78.4g |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-31-05 |
eCl@ss 9.0 | 27-14-31-05 | ETIM 9.0 | EC000635 |
ETIM 8.0 | EC000635 | ECCN | EAR99 |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | US | GTIN | 4044918311885 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
