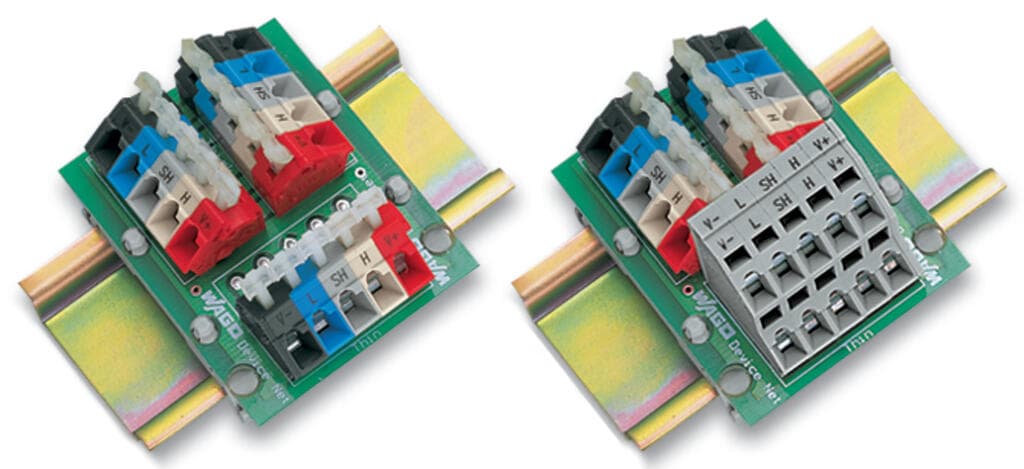

Product Model
810-902/000-001
Selling Points
- 1Versatile Connectivity: Ideal for various applications with 2 trunk cables (input/output) and 1 drop cable.
- 2Easy Installation: Includes a mounting foot for straightforward installation.
- 3Durable Construction: Built with solid conductors (0.08 … 2.5 mm² / 28 … 12 AWG).
- 4Reliable Performance: Designed for reliable connection points (trunk and drop cables).
- 5Comprehensive Compatibility: Suitable for a wide range of industrial and commercial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Connection point (other) designation | Drop cables |
Connection point (other) connection technology | CAGE CLAMP? | Width | 42?mm?/ 1.654?inches |
Height from upper-edge of DIN-rail | 24.5?mm?/ 0.965?inches | Depth | 53?mm?/ 2.087?inches |
Fire load | 0.311MJ | Weight | 2148.5g |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-31-05 |
eCl@ss 9.0 | 27-14-31-05 | ETIM 9.0 | EC000635 |
ETIM 8.0 | EC000635 | ECCN | EAR99 |
PU (SPU) | 5?(1)?pcs | Packaging type | box |
Country of origin | US | GTIN | 4017332462068 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
