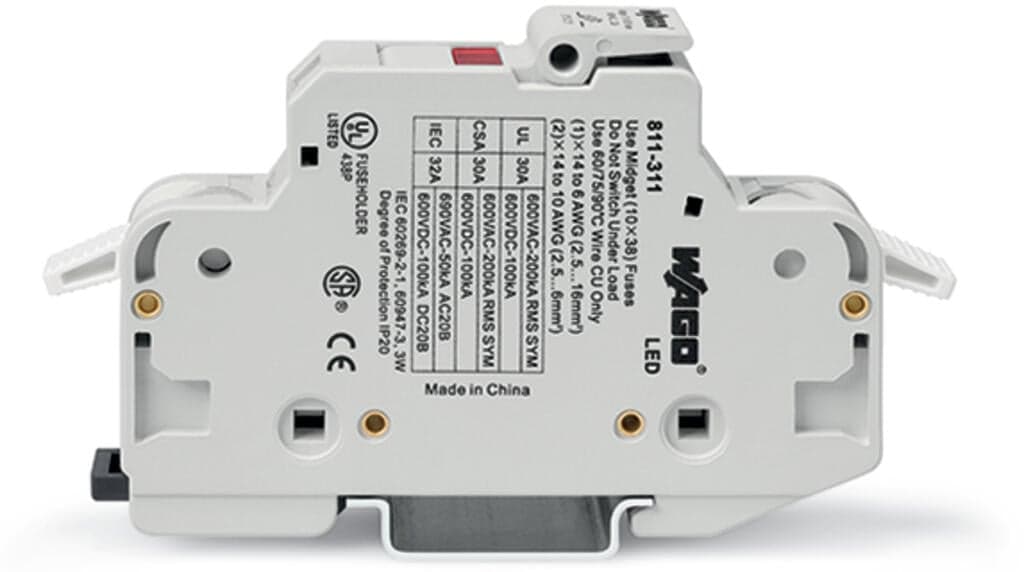

Product Model
811-311
Selling Points
- 1Maintenance-Free Operation: No need for frequent maintenance, ensuring continuous operation.
- 2Vibration-Proof and Corrosion-Resistant: Durable design withstands harsh environments.
- 3DIN Rail Mounting: Convenient and space-efficient mounting for control panels.
- 4Blown Fuse Indication: Easy to detect blown fuses, ensuring quick repairs.
- 5High Current Rating: Handles up to 32 A, suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | The fuse holder must not be opened under load. | Clamping units | 2 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 17.5?mm?/ 0.689?inches | Height | 105?mm?/ 4.134?inches |
Depth from upper-edge of DIN-rail | 55?mm?/ 2.165?inches | Mounting type | DIN-35 rail |
Mounting (note) | The fixed foot of the fuse terminal block must face upwards so that the fuse cannot fall out. | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 1.1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -35 … +85?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-16 | eCl@ss 9.0 | 27-14-11-16 |
ETIM 9.0 | EC002705 | ETIM 8.0 | EC002705 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 12?(1)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4050821856498 | Customs tariff number | 85369095000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/HD 60269-2 |
Rated voltage (III / 3) | 690V | Rated current | 32A |
Blown fuse indication | with blown fuse indication | Ratings (note) | Electrical ratings are specified in the technical data of both fuse terminal block and fuse. When selecting glass cartridge fuses, make sure that the listed power loss is not exceeded. |
Rated voltage (III/3) 2 | 1000V | Approvals per | CSA 22.2 |
Rated voltage (UL) | 750V | Rated current UL | 30A |
Rated voltage (UL 2) | 1,000V | Rated current (CSA) | 30A |
Rated voltage (CSA) | 600V | Rated voltage CSA 2 | 1,000V |
Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 3W | Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 3W |
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 3W | Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 3W |
Voltage type 1 | AC | Voltage type 2 | DC |
Fuse receptacle | pluggable | Fuse type | Cylindrical fuse; 10 x 38 mm |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 2.5 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 2.5 … 16?mm2?/ 16 … 6?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Number of poles | 1 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
