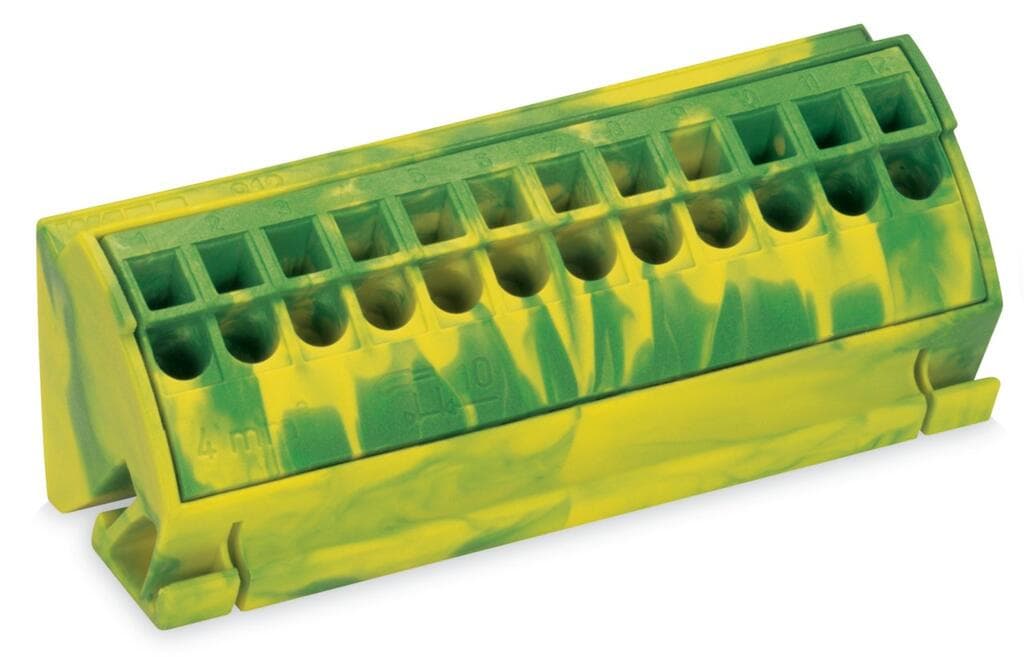

Product Model
812-100
Selling Points
- 1Quick and easy assembly with push-in CAGE CLAMP technology.
- 2Made from high-quality polyamide (PA66) for long-lasting performance.
- 3Compatible with 20 to 12 AWG wire sizes, ensuring broad applicability.
- 4No need for tools; simply snap the terminal block onto the busbar.
- 5Operates from -5 to 60°C, suitable for various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 12 | Total number of potentials | 1 |
Number of levels | 1 | Width | 75?mm?/ 2.953?inches |
Height | 30?mm?/ 1.181?inches | Depth | 27.5?mm?/ 1.083?inches |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.822MJ |
Weight | 35.6g | Continuous operating temperature | -35 … +85?°C |
Product Group | 12 (Matrix Patch Board) | eCl@ss 10.0 | 27-14-11-46 |
eCl@ss 9.0 | 27-14-11-46 | ETIM 9.0 | EC000001 |
ETIM 8.0 | EC000001 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4044918253253 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Solid conductor; push-in termination | 0.5 … 4?mm2?/ 20 … 12?AWG | Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Strip length | 11?mm?/ 0.43?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
