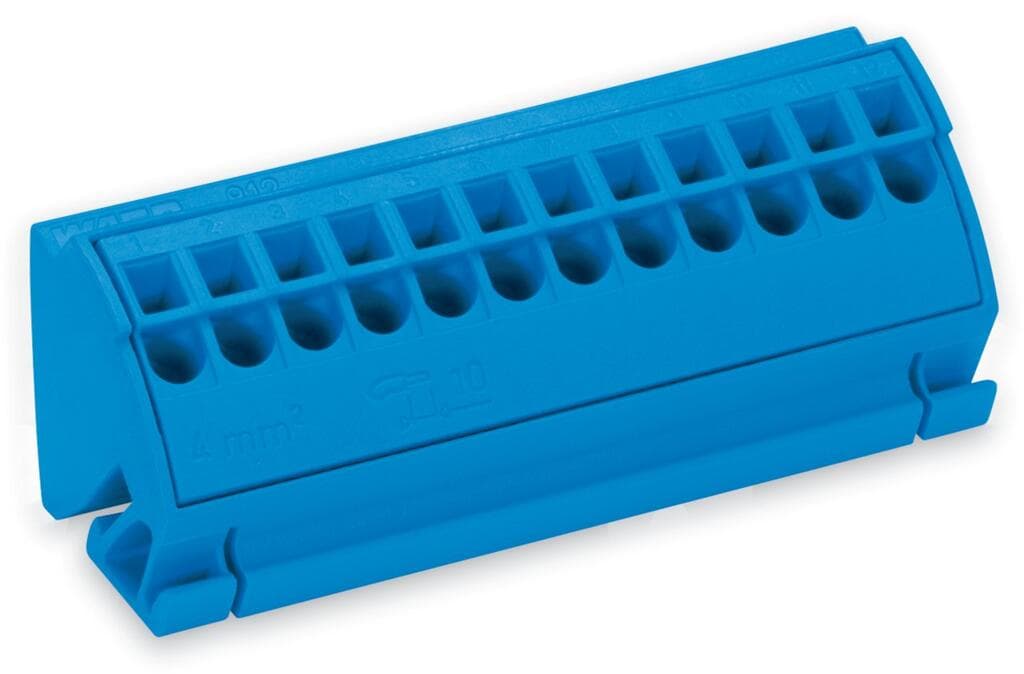

Product Model
812-101
Selling Points
- 1Reliable Connection: Push-in CAGE CLAMP technology ensures secure and reliable connections.
- 2Efficient Design: Designed for easy installation and minimal space requirements.
- 3High Current Capacity: Suitable for high current applications with a 4.00 mm² rating.
- 4Durable Construction: Built to withstand industrial environments and harsh conditions.
- 5Easy Maintenance: Simple conductor termination and removal process without tools.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 12 | Total number of potentials | 1 |
Number of levels | 1 | Width | 75?mm?/ 2.953?inches |
Height | 30?mm?/ 1.181?inches | Depth | 27.5?mm?/ 1.083?inches |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.821MJ |
Weight | 35.6g | Continuous operating temperature | -35 … +85?°C |
Product Group | 12 (Matrix Patch Board) | eCl@ss 10.0 | 27-14-11-46 |
eCl@ss 9.0 | 27-14-11-46 | ETIM 9.0 | EC000001 |
ETIM 8.0 | EC000001 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4044918253260 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 96A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated current (note) | Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used. | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Solid conductor; push-in termination | 0.5 … 4?mm2?/ 20 … 12?AWG |
Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Strip length | 11?mm?/ 0.43?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
