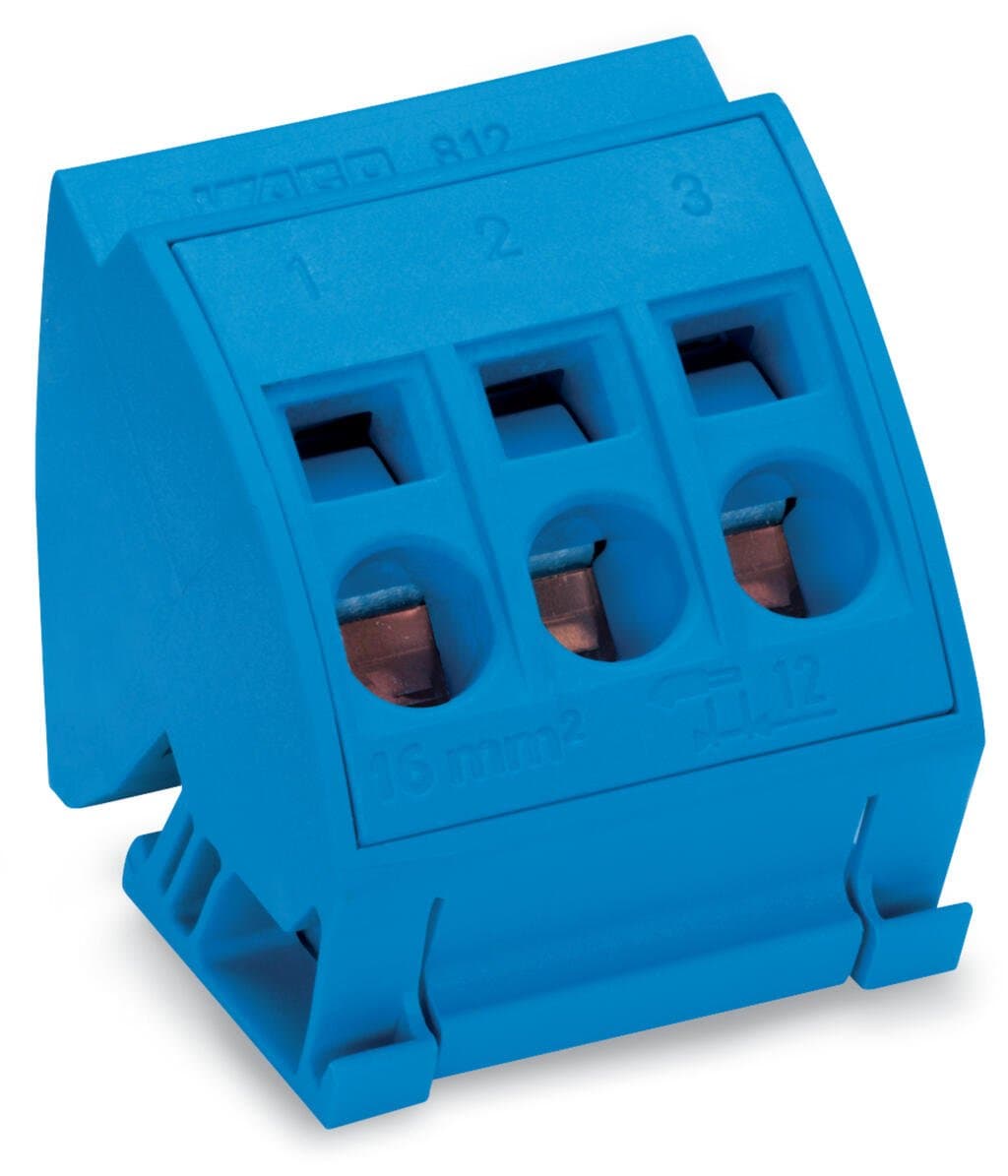

Product Model
812-114
Selling Points
- 11000V for reliable operation in demanding environments.
- 2Supports up to 96A, making it suitable for heavy-duty applications.
- 3Easy installation on 35 mm DIN rails for efficient system integration.
- 4Secure and easy-to-use spring connections for various conductor sizes.
- 5Operates within -35°C to 85°C, ensuring stability in diverse conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 38?mm?/ 1.496?inches |
Height | 42.5?mm?/ 1.673?inches | Depth | 43.5?mm?/ 1.713?inches |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.893MJ |
Weight | 42.9g | Continuous operating temperature | -35 … +85?°C |
Product Group | 12 (Matrix Patch Board) | eCl@ss 10.0 | 27-14-11-46 |
eCl@ss 9.0 | 27-14-11-46 | ETIM 9.0 | EC000001 |
ETIM 8.0 | EC000001 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4045454014926 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 96A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated current (note) | Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used. | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 1.5 … 16?mm2?/ 14 … 6?AWG | Fine-stranded conductor | 1.5 … 16?mm2?/ 14 … 6?AWG |
Strip length | 12?mm?/ 0.47?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
