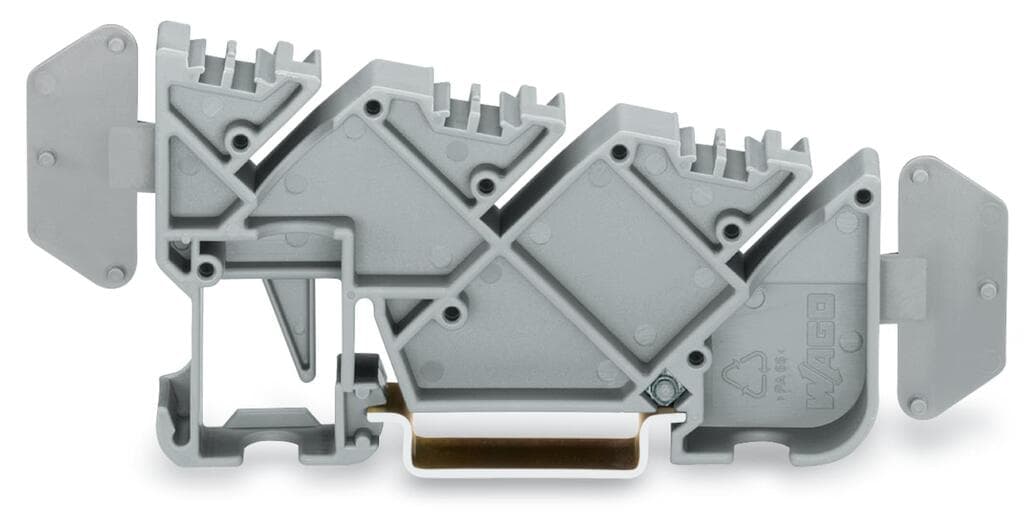

Product Model
812-140
Selling Points
- 1Operates from -35°C to +85°C, ensuring reliability in various environments.
- 2Meets environmental standards, making it a sustainable choice for your projects.
- 3Made from Polyamide 6.6, providing excellent insulation and mechanical strength.
- 4Snaps onto DIN Rail or can be screwed onto a panel for straightforward mounting.
- 5Compatible with 10 x 3 mm busbars, supporting up to 96A current capacity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12?mm?/ 0.472?inches | Height | 80?mm?/ 3.15?inches |
Depth from upper-edge of DIN-rail | 41.7?mm?/ 1.642?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.472MJ | Weight | 15.8g |
Continuous operating temperature | -35 … +85?°C | Product Group | 12 (Matrix Patch Board) |
eCl@ss 10.0 | 27-40-06-07 | eCl@ss 9.0 | 27-40-06-07 |
ETIM 9.0 | EC001166 | ETIM 8.0 | EC001166 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332812986 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
