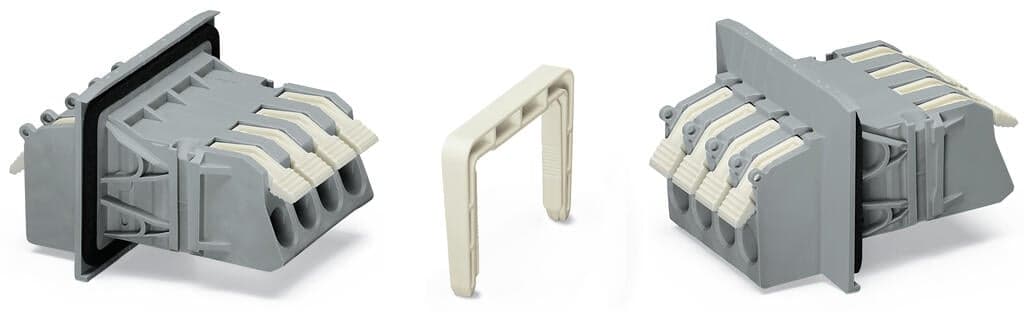

Product Model
828-334
Selling Points
- 1High Amperage Rating: 57A for reliable power distribution.
- 2Tool-Free Installation: Easy and convenient setup without tools.
- 34-Pole Design: Ideal for multi-core cable termination with Cage Clamp connections.
- 4Temperature Rating: -60 to 105°F (-51 to 40°C) for versatile use in various environments.
- 5Durable Construction: Made from high-quality polyamide 6.6 material for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 8 |
Total number of potentials | 4 | Number of connection types | 2 |
Number of levels | 1 | Pin spacing | 11.5?mm?/ 0.453?inches |
Width | 65.1?mm?/ 2.563?inches | Height | 48.6?mm?/ 1.913?inches |
Depth | 78.9?mm?/ 3.106?inches | Housing sheet thickness | 3 … 3?mm?/ 0.118 … 0.118?inches |
Mounting type | Feed-through mounting | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 2.744MJ |
Weight | 121.5g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-14-11-34 | eCl@ss 9.0 | 27-14-11-34 |
ETIM 9.0 | EC001283 | ETIM 8.0 | EC001283 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?pcs |
Packaging type | bag | Country of origin | CN |
GTIN | 4050821148777 | Customs tariff number | 8536904000 |
REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 0d734595-b959-4481-9e24-30848b1e4c59 | SCIP notification number (Belgium) | 9541b29a-e66a-4057-8d23-5fc290967632 |
SCIP notification number (Bulgaria) | 3734b5be-3528-42b4-8a5a-5dd03bb0cea1 | SCIP notification number (Czech Republic) | 55b8ed86-163e-4a8a-b21e-c45d10ae48d4 |
SCIP notification number (Denmark) | 8d6b435d-e6df-4a1f-9f1a-4ed8f880bc26 | SCIP notification number (Finland) | ee92680d-3320-41b2-950e-1552139d0615 |
SCIP notification number (France) | 82d1ef36-b6a7-4ec7-a933-9ee44eff2a31 | SCIP notification number (Germany) | 53c0bf5c-8b50-4ab0-a882-e0acad435acd |
SCIP notification number (Hungary) | 75a68f21-0f78-446a-84a7-00b131e85d43 | SCIP notification number (Italy) | bcff2cba-dc35-4397-ab96-91173936d8fa |
SCIP notification number (Netherlands) | 2c2b2543-7430-49d7-bd72-5293c711a5a6 | SCIP notification number (Poland) | 87b40070-b129-4cf7-9aab-3462de5f5d5c |
SCIP notification number (Romania) | c0b2317f-ecc7-4117-8873-9a67a067a90c | SCIP notification number (Sweden) | e495909f-40dd-4a6f-be51-7ceb74fe1f28 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 57A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 30A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 30A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 30A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 30A |
Connection technology | CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 1.5 … 16?mm2?/ 16 … 6?AWG | Fine-stranded conductor | 1.5 … 16?mm2?/ 16 … 6?AWG |
Fine-stranded conductor; with insulated ferrule | 1.5 … 10?mm2 | Fine-stranded conductor; with uninsulated ferrule | 1.5 … 10?mm2 |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Number of poles | 4 |
Specifications may be subject to change without notice
