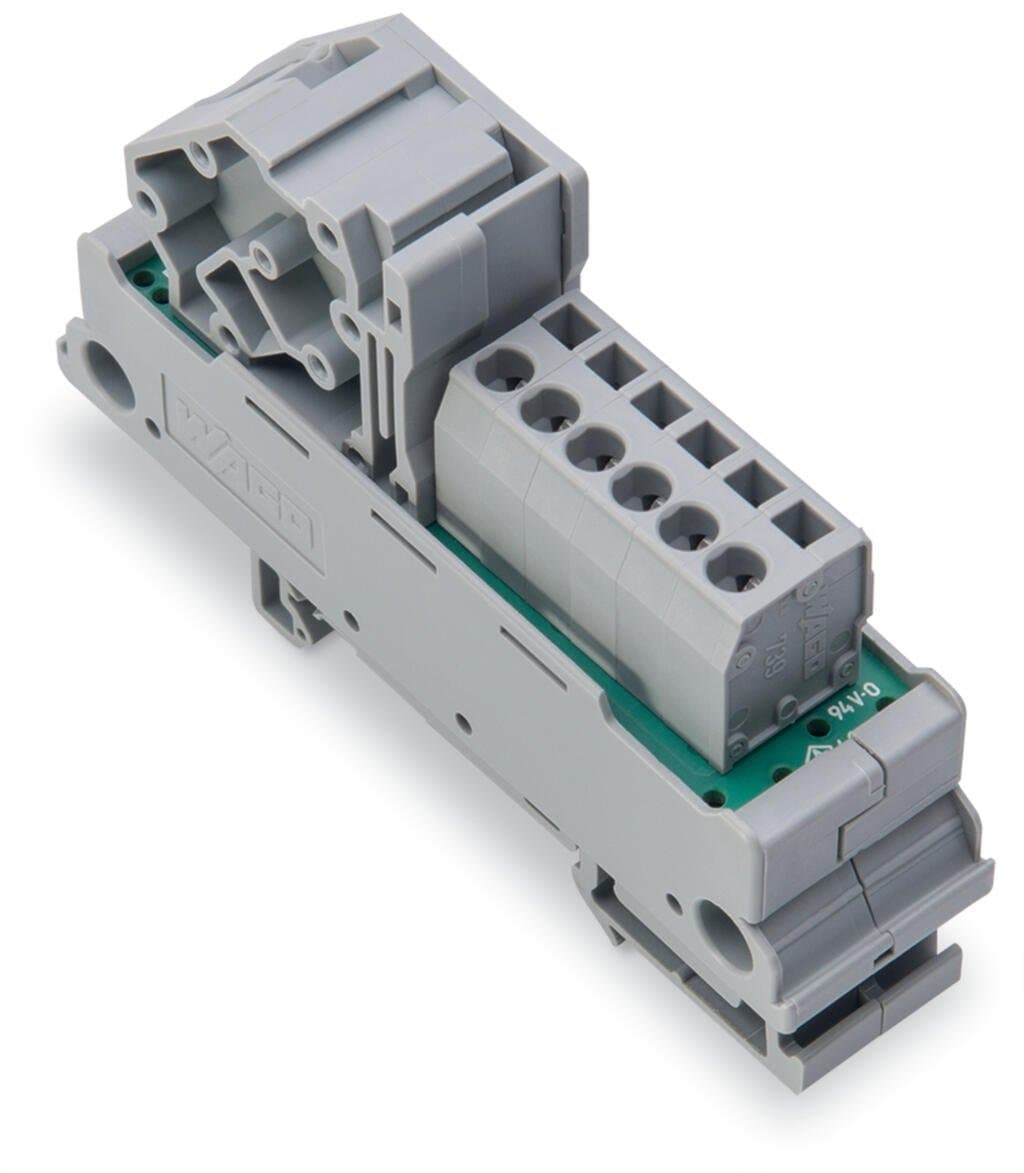

WAGO 830-800/000-302 Potential Distribution Module

Selling Points

1Efficient Power Distribution: Handles up to 65A input and 12A output per connection.
2Durable Design: Constructed with CAGE CLAMP technology for secure conductor connections.
3Versatile Mounting: Compatible with DIN-35 rail mounting for easy installation.
4High Current Handling: Supports conductor cross-sections up to 16 mm² for input and 2.5 mm² for output.
5Compliant Standards: Meets CULus 61010-2-201 standards for safety and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Operating voltage	≤?AC/DC?250?V	Current per connection (max.)	12A
Total current per potential (max.)	65A	Specialty functions	with 1 input clamping point; with 6 output clamping points
Total number of potentials	1	Connection type 1	Input
Mating direction	45°	Connection technology	CAGE CLAMP?
WAGO connector	WAGO 745 Series	Solid conductor	0.2 … 16?mm2?/ 24 … 6?AWG
Fine-stranded conductor	0.2 … 16?mm2?/ 24 … 6?AWG	Strip length	11 … 12?mm?/ 0.43 … 0.47?inches
Connection type 2	Output	Mating direction 2	45°
Connection technology 2	CAGE CLAMP?	WAGO connector 2	WAGO 739 Series
Solid conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG	Fine-stranded conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG
Strip length 2	8 … 9?mm?/ 0.31 … 0.35?inches	Note (conductor cross-section)	12 AWG: THHN, THWN
Width	21?mm?/ 0.81?inches	Height	85 mm / 3.35 inches
Depth from upper-edge of DIN-rail	49 mm / 3.35 inches	Mounting type	DIN-35 rail
Housing design	Mounting carrier	Color	gray
Fire load	1.114MJ	Weight	51g
Ambient temperature (operation)	-20 … +50 °C	Relative humidity	95% (without condensation)
Standards/specifications	cULus 61010-2-201	eCl@ss 10.0	27-14-11-52
eCl@ss 9.0	27-14-11-52	ETIM 9.0	EC002780
ETIM 8.0	EC002780	ECCN	EAR99
PU (SPU)	10?(1)?pcs	Packaging type	box
Country of origin	US	GTIN	4055143375993
Customs tariff number	8537109150	RoHS Compliance Status	Compliant,No Exemption

Specifications may be subject to change without notice
