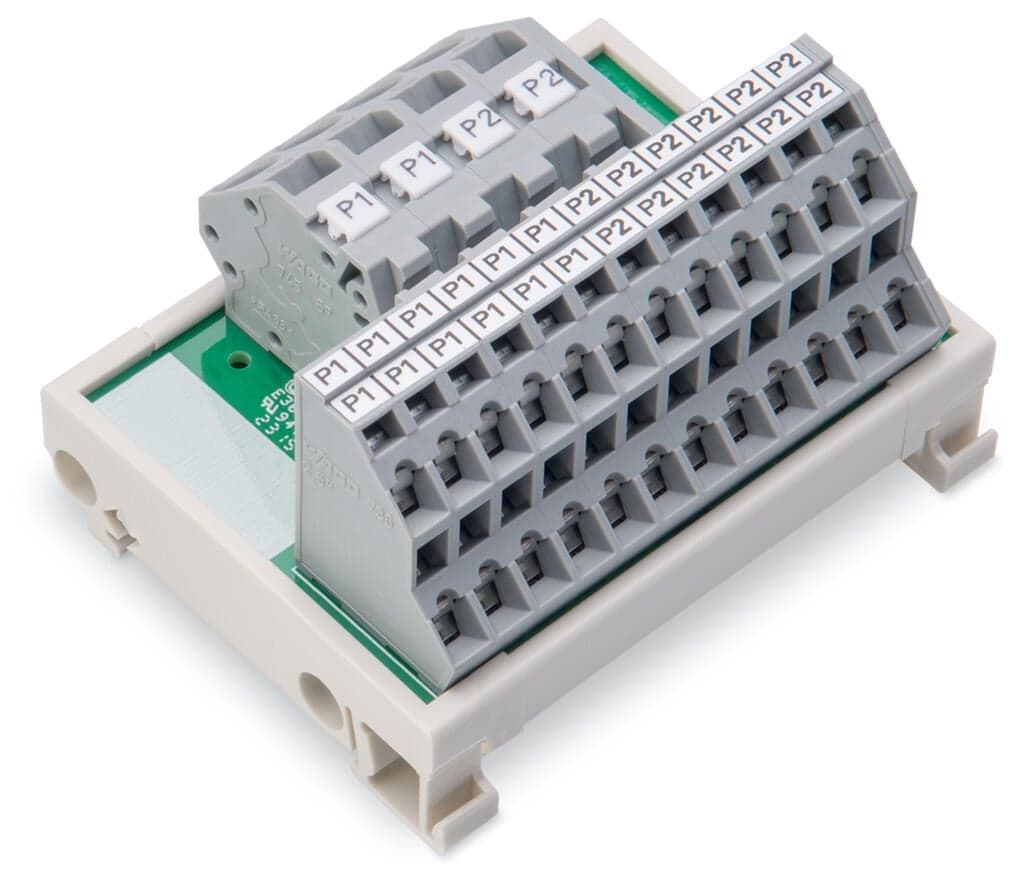

Product Model
830-800/000-306
Selling Points
- 1Secure Wiring with CAGE CLAMP Technology: Ensures reliable connections with spring-loaded clamps.
- 2DIN-35 Rail Mounting: Easy installation on standard DIN-35 rail systems.
- 3Compliant with CULus Standards: Meets safety and performance requirements for electrical distribution.
- 4High Current Capacity: Supports up to 30A input and 10A output currents.
- 5Versatile Conductor Range: Compatible with conductors up to 6 mm² (24 AWG) for inputs and 2.5 mm² (12 AWG) for outputs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?250?V | Current per connection (max.) | 10A |
Total current per potential (max.) | 30A | Specialty functions | with 2 input clamping points each; with 12 output clamping points each |
Total number of potentials | 2 | Connection type 1 | Input |
Mating direction | 45° | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 745 Series | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 11 … 12?mm?/ 0.43 … 0.47?inches |
Connection type 2 | Output | Mating direction 2 | vertical |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 736 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Width | 69?mm?/ 2.72?inches | Height | 55 mm / 2.17 inches |
Depth from upper-edge of DIN-rail | 38 mm / 1.47 inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Color | gray |
Fire load | 0.736MJ | Weight | 96.5g |
Ambient temperature (operation) | -20 … +50 °C | Relative humidity | 95% (without condensation) |
Standards/specifications | cULus 61010-2-201 | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | EAR99 |
PU (SPU) | 6?(1)?pcs | Packaging type | box |
Country of origin | US | GTIN | 4055143379335 |
Customs tariff number | 8537109150 | RoHS Compliance Status | Compliant,No Exemption |
