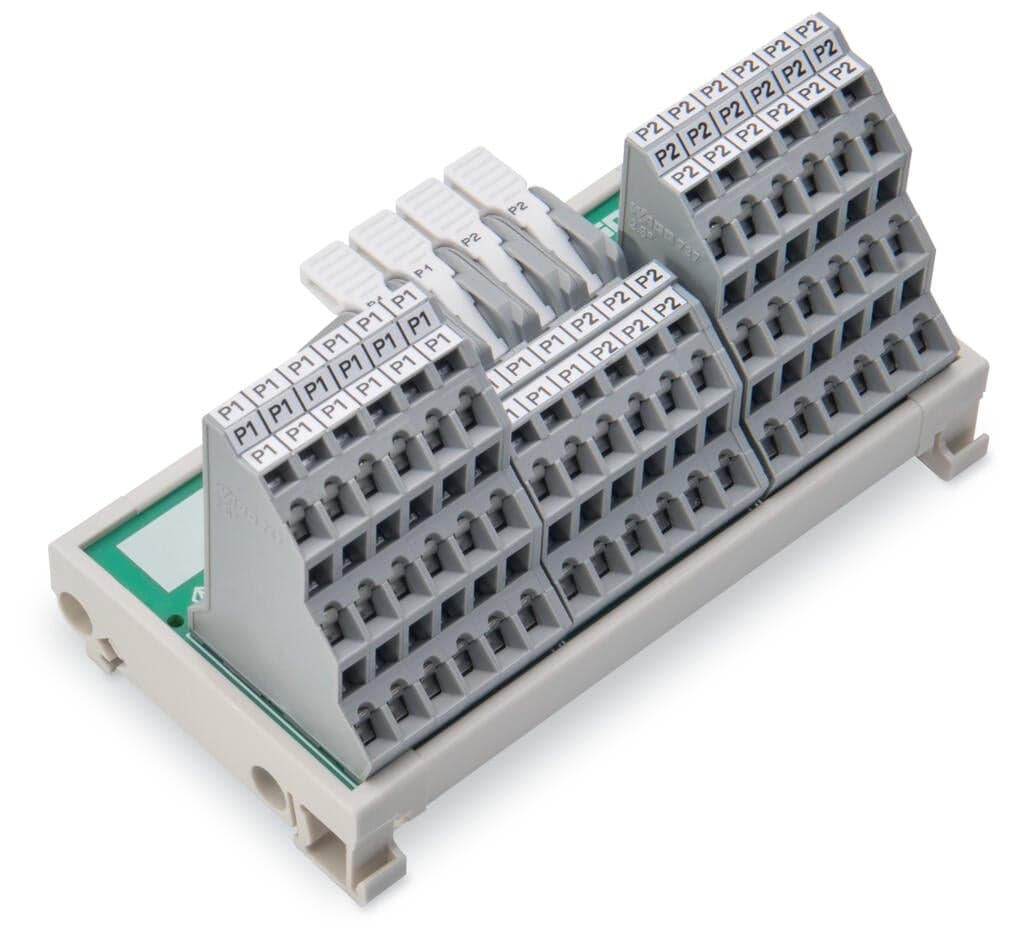

WAGO 830-800/000-318 Potential Distribution Module

Selling Points

1Delivers constant voltage supply for various automation needs.
2Secure and reliable connection technology for conductors up to 6 mm².
3Easy installation on standard DIN-35 rail systems.
4Supports up to 10A current with 30A input current.
5Compatible with input wires from 24 AWG to 10 AWG and output wires from 28 AWG to 12 AWG.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Operating voltage	≤?AC/DC?250?V	Current per connection (max.)	10A
Total current per potential (max.)	30A	Specialty functions	with 2 input clamping points each; with 24 output clamping points each
Total number of potentials	2	Connection type 1	Input
Mating direction	30°	Connection technology	CAGE CLAMP?
WAGO connector	WAGO 2706 Series	Solid conductor	0.5 … 6?mm2?/ 20 … 10?AWG
Fine-stranded conductor	0.5 … 6?mm2?/ 20 … 10?AWG	Strip length	11 … 12?mm?/ 0.43 … 0.47?inches
Connection type 2	Output	Mating direction 2	vertical
Connection technology 2	CAGE CLAMP?	WAGO connector 2	WAGO 736/737 Series
Solid conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG	Fine-stranded conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG
Strip length 2	5 … 6?mm?/ 0.2 … 0.24?inches	Note (conductor cross-section)	12 AWG: THHN, THWN
Width	102?mm?/ 4.02?inches	Height	55 mm / 2.17 inches
Depth from upper-edge of DIN-rail	53 mm / 2.02 inches	Mounting type	DIN-35 rail
Housing design	Mounting carrier	Color	gray
Fire load	1.379MJ	Weight	138.2g
Ambient temperature (operation)	-20 … +50 °C	Relative humidity	95% (without condensation)
Standards/specifications	cULus 61010-2-201	eCl@ss 10.0	27-14-11-52
eCl@ss 9.0	27-14-11-52	ETIM 9.0	EC002780
ETIM 8.0	EC002780	ECCN	EAR99
PU (SPU)	3?(1)?pcs	Packaging type	box
Country of origin	US	GTIN	4055143380126
Customs tariff number	8537109150	RoHS Compliance Status	Compliant,No Exemption

Specifications may be subject to change without notice
